What Machines Are Included in a PVC Pipe Extrusion Line?
A PVC pipe extrusion line is a complete production system used to manufacture rigid PVC pipes for water supply, drainage, agricultural irrigation, construction, infrastructure, cable protection, and industrial applications. A standard PVC pipe line usually includes PVC mixing units, a conical twin-screw extruder, pipe die, vacuum calibration tank, cooling system, haul-off machine, chipless cutting machine, belling machine, and electrical control system.
Because PVC is heat-sensitive and PVC pipes often require strict dimensional accuracy, stable pressure performance, clean cutting, and reliable socket forming, every machine in the extrusion line must be matched carefully. Based on the QTech Machinery 110-315 PVC pipe extrusion line case, a successful production line should be configured according to pipe diameter range, PVC formulation, output target, wall thickness, socket type, local voltage, workshop layout, and automation requirements.
Reference case: 110-315 PVC Pipe Extrusion Line
1. What machines are included in a PVC pipe extrusion line?
A PVC pipe extrusion line includes mixing units, a conical twin-screw extruder, pipe mold, calibration tank, cooling equipment, haul-off machine, cutting machine, belling machine, and control system.
A PVC pipe extrusion line works as a continuous production system. PVC resin and additives are first mixed into a dry blend. The material is then fed into a conical twin-screw extruder, where it is plasticized and pushed through a pipe mold. The hot pipe is calibrated, cooled, hauled off, cut to length, and finally socketed by a belling machine if required.
A complete PVC pipe extrusion line usually includes:
| Machine | Main Function |
|---|---|
| High-speed mixer | Mixes PVC resin, stabilizer, filler, lubricant, pigment, and additives |
| Conical twin-screw extruder | Plasticizes PVC powder and provides stable extrusion |
| Pipe extrusion die/mold | Forms pipe diameter and wall thickness |
| Vacuum calibration tank | Controls pipe outside diameter and roundness |
| Cooling system | Cools pipe and stabilizes dimensions |
| Haul-off machine | Pulls pipe at a controlled speed |
| Chipless cutting machine | Cuts pipe to required length |
| Belling machine | Forms R-type or U-type sockets |
| PLC control system | Coordinates machine operation |
| Auxiliary equipment | Feeding, dryer, water chiller, stacker, printer, spare parts |
In the QTech Machinery case, the customer required a PVC pipe extrusion line for 110 mm to 315 mm pipes, with high-quality output, improved production efficiency, and reliable long-term operation. QTech supplied a complete line including mixing units, SJSZ80/156 conical twin-screw extruder, calibration tank, four-claw haul-off, circular chipless cutter, and belling machine.
2. Why does a PVC pipe line need high-speed mixing units?
Mixing units prepare a uniform PVC dry blend before extrusion, improving formula consistency, processing stability, and pipe quality.
PVC pipe production usually starts from powder materials, not pellets. A PVC formula may include PVC resin, calcium carbonate, stabilizer, lubricant, pigment, processing aid, and impact modifier. These materials must be mixed evenly before extrusion.
In the QTech 110-315 PVC pipe extrusion line case, the mixing units included:
| Mixer Model | Hot Mixing Capacity | Cold Mixing Capacity | Material |
|---|---|---|---|
| SRL500-1000 high-speed mixer | 500 L | 1000 L | 304 stainless steel |
| SRL800-2000 high-speed mixer | 800 L | 2000 L | 304 stainless steel |
The hot mixer heats and disperses the formula. The cold mixer then cools the material and prevents agglomeration or premature degradation. The use of 304 stainless steel improves durability, cleanliness, and corrosion resistance.
High-speed mixing helps improve:
- PVC formula uniformity
- Stabilizer and lubricant dispersion
- Pipe color consistency
- Extrusion stability
- Reduced defects
- Higher output reliability
- Better batch repeatability
For medium and large PVC pipe production, a correctly sized mixer is essential. If the mixer capacity is too small, it may not support continuous high-output extrusion. If the formula is poorly mixed, the extruder may experience unstable pressure, poor plasticizing, surface defects, or inconsistent pipe strength.
3. What is the function of the conical twin-screw extruder?
The conical twin-screw extruder melts, mixes, compresses, and continuously extrudes PVC material into the pipe die.
The extruder is the core machine of a PVC pipe extrusion line. PVC is a heat-sensitive material, so the extruder must provide stable plasticizing without excessive shear or overheating. A conical twin-screw extruder is widely used for PVC because it can process dry blend powder efficiently and deliver stable output.

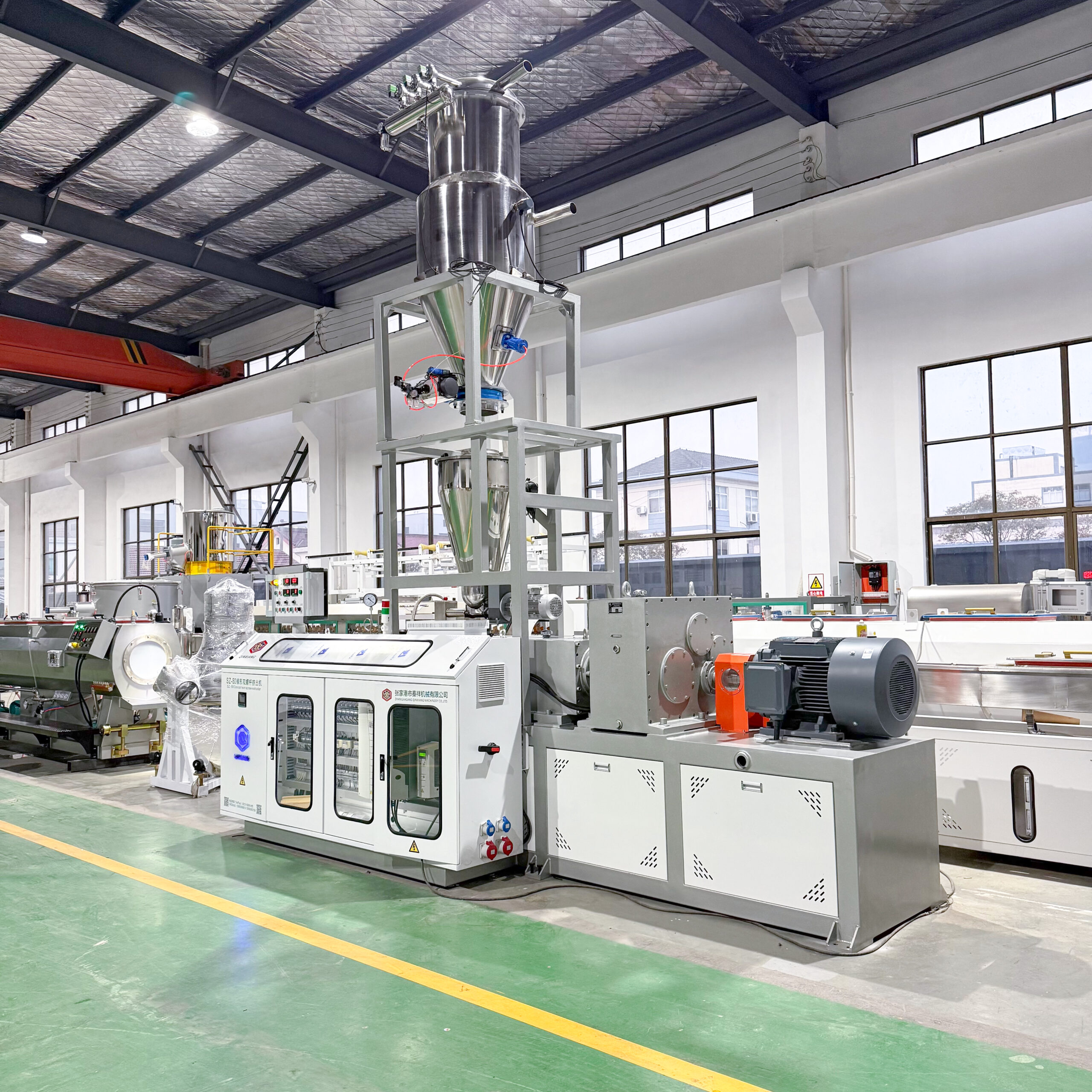

In the QTech case, the main extruder was:
| Extruder Item | Configuration |
|---|---|
| Model | SJSZ80/156 conical twin-screw extruder |
| Production capacity | 300–650 kg/h |
| Main motor | 55 kW Siemens motor |
| Speed control | ABB inverter |
| Screw material | 38CrMoAlA |
| Screw treatment | Nitrided surface |
| Heating system | 36 kW cast aluminum heaters |
| Cooling | Cooling fans |
The SJSZ80/156 conical twin-screw extruder provides the required output for 110-315 mm PVC pipe production. The 55 kW Siemens motor with ABB inverter improves speed stability and precision control. The 38CrMoAlA nitrided screw improves wear resistance and service life. The 36 kW cast aluminum heaters with cooling fans help maintain stable temperature during PVC processing.
A reliable extruder helps prevent:
- PVC degradation
- Unstable melt pressure
- Pipe wall thickness variation
- Surface roughness
- Discoloration
- Low output efficiency
- Frequent downtime
For customers, the extruder model should be selected based on pipe diameter, wall thickness, formula, output target, and running hours per day.
4. What does the PVC pipe die and calibration system do?
The pipe die forms the initial pipe shape, while the vacuum calibration tank fixes the pipe diameter, roundness, and dimensional accuracy.
After plasticizing, the PVC melt flows into the pipe die. The die distributes material around the mandrel and forms the pipe wall. A properly designed die ensures uniform wall thickness and smooth inner and outer surfaces.
Once the pipe exits the die, it enters the vacuum calibration tank. At this stage, the pipe is still hot and soft. Vacuum force pulls the pipe surface against the calibrator, while cooling water removes heat and stabilizes the shape.

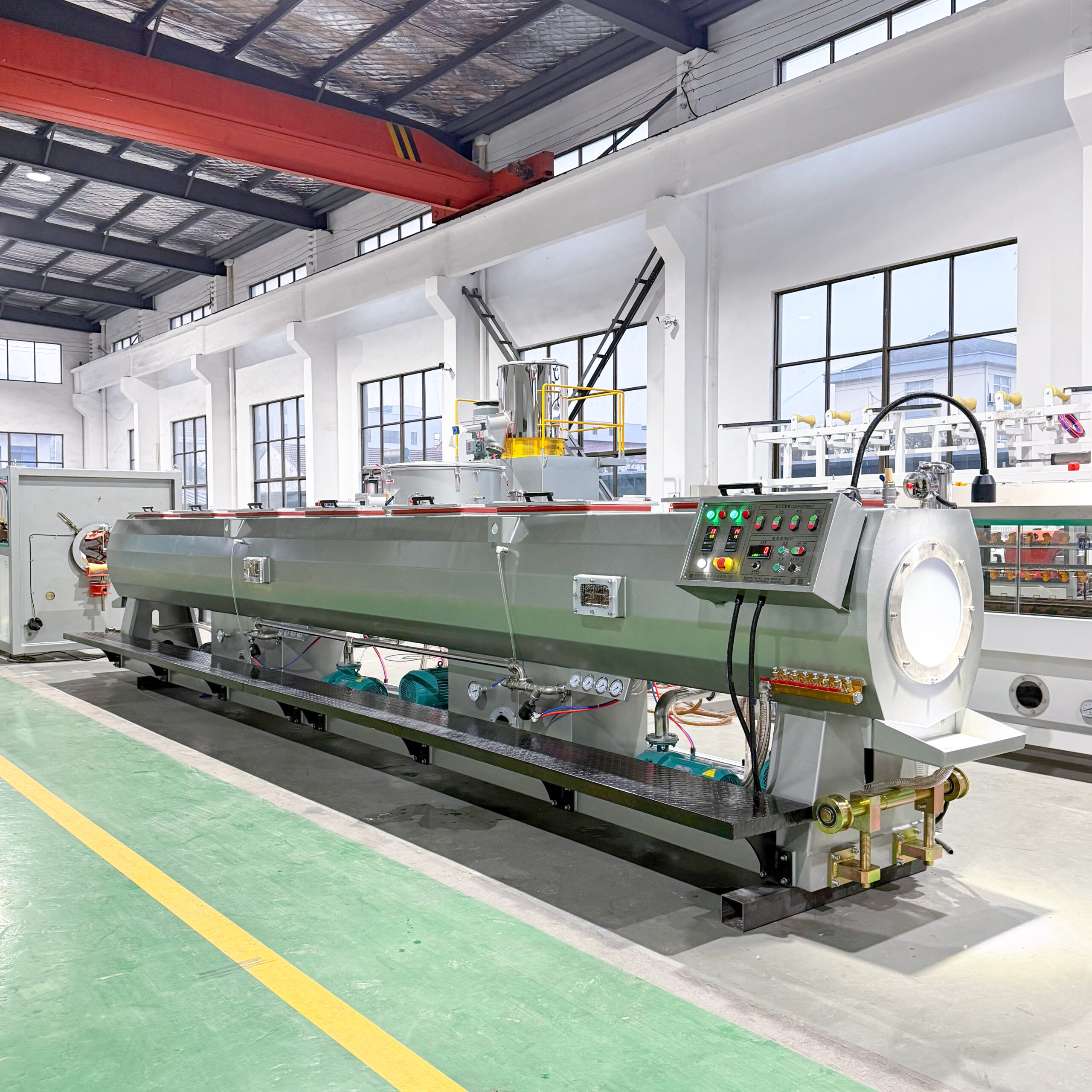

In the QTech case, the calibration tank configuration was:
| Calibration Item | Configuration |
|---|---|
| Tank length | 8 meters |
| Tank material | 5 mm stainless steel |
| Cooling system | Dual-loop water supply |
| Temperature control | RKC temperature control |
| Vacuum pumps | 5.5 kW and 4.5 kW Ningbo Fangli pumps |
The 8-meter calibration tank provides sufficient sizing length for 110-315 mm PVC pipes. The 5 mm stainless steel structure offers excellent durability. The dual-loop water supply with RKC temperature control helps stabilize cooling performance, while the 5.5 kW and 4.5 kW vacuum pumps support reliable sizing.
Good die and calibration design help improve:
| Quality Factor | Benefit |
|---|---|
| Pipe diameter accuracy | Easier fitting and installation |
| Roundness | Better socketing and sealing |
| Wall thickness uniformity | Improved strength and reduced waste |
| Surface quality | Better appearance and flow performance |
| Dimensional stability | Less shrinkage and deformation |
| Production repeatability | Stable long-term output |
For PVC pipe production, the mold and calibration tools should be designed according to specific pipe standards and customer drawings.
5. Why is the haul-off machine important in PVC pipe extrusion?
The haul-off machine pulls the pipe at a stable speed, directly affecting wall thickness, diameter stability, and production consistency.
The haul-off machine controls how fast the pipe moves through the line. If the haul-off speed is too fast, the wall thickness may become thinner. If it is too slow, the pipe may become thicker or deform. For large-diameter PVC pipes, strong and stable traction is essential.

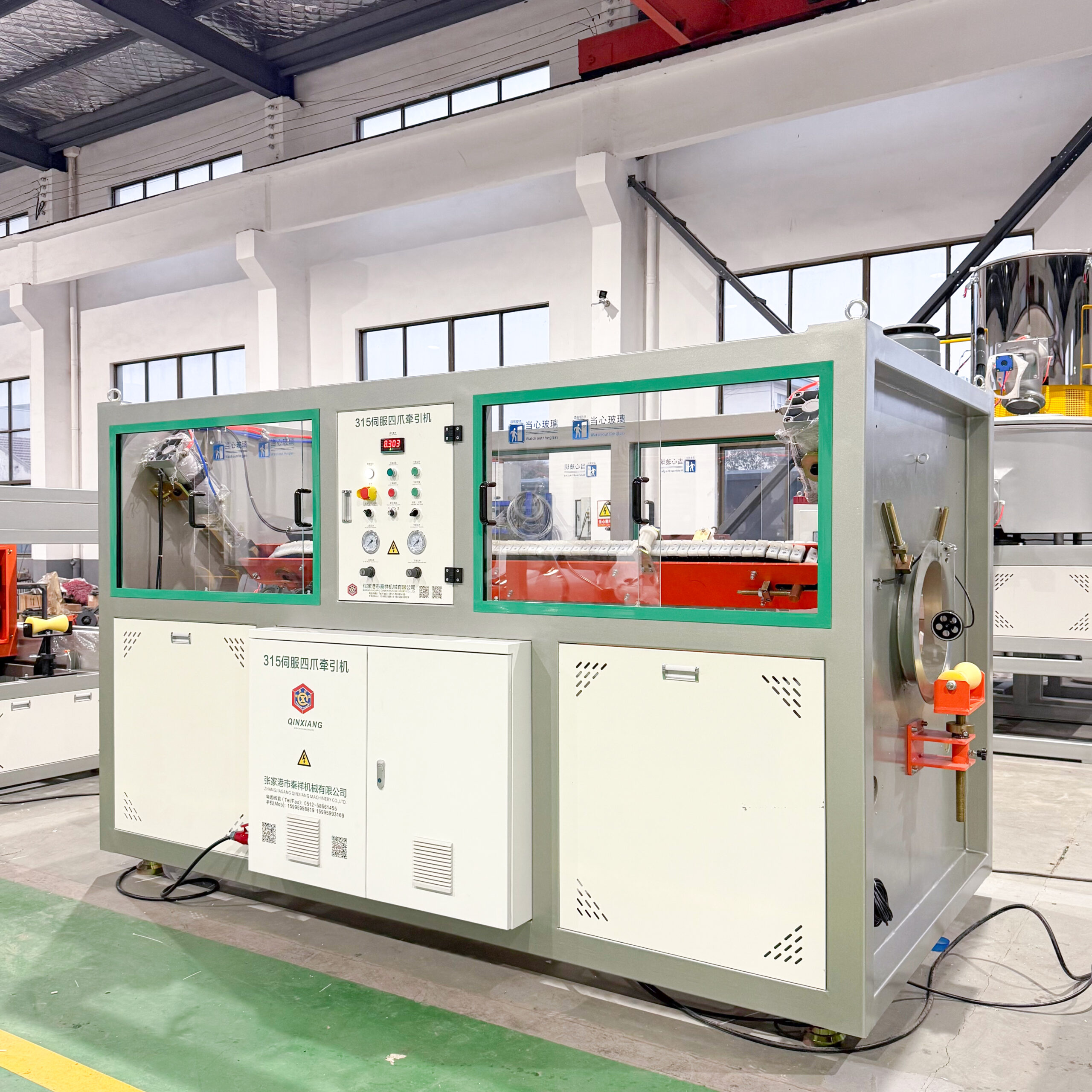

In the QTech case, the line used a 110-315 caterpillar four-claw haul-off machine.
| Haul-Off Item | Configuration |
|---|---|
| Type | 110-315 caterpillar four-claw haul-off |
| Drive | Servo-driven |
| Maximum traction force | 28,000 N |
The four-claw structure provides balanced traction around the pipe, helping prevent pipe deformation. The servo-driven system improves speed control accuracy and synchronization with the extruder.
Benefits of servo haul-off:
- Stable pulling speed
- Better wall thickness control
- Reduced pipe ovality
- Strong traction for large pipes
- Better synchronization with cutter
- Lower scrap rate
- Easier operation
For 110-315 mm PVC pipes, the haul-off must be strong enough to pull the pipe smoothly through the cooling and cutting sections without slipping or damaging the pipe surface.
6. What is the role of the chipless cutting machine and belling machine?
The chipless cutter cuts PVC pipes cleanly without excessive chips, and the belling machine forms sockets for pipe connection.
After the pipe is fully cooled and hauled forward, it must be cut to the required length. For PVC pipe production, cutting accuracy and pipe end quality are important because the pipe may later need socketing, chamfering, or installation.

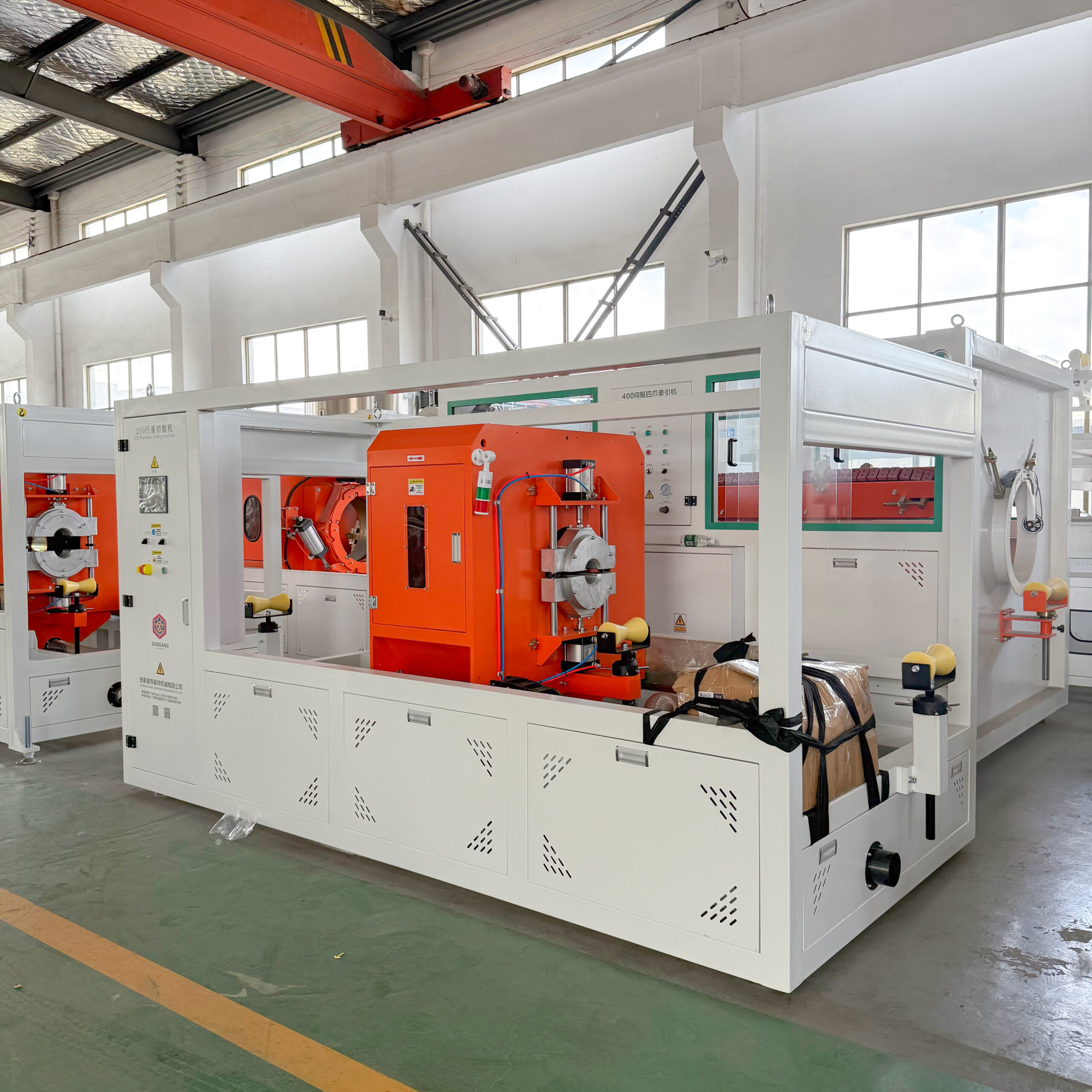

In the QTech case, the cutting machine was:
| Cutting Machine Item | Configuration |
|---|---|
| Type | 315 PVC pipe circular chipless cutting machine |
| Motor | 4 kW Inovance servo motor |
| Feature | Integrated chamfering device |
The circular chipless cutting machine provides clean cuts with less dust and less material waste. The 4 kW Inovance servo motor improves motion control, while the integrated chamfering device prepares pipe ends for better socketing and installation.

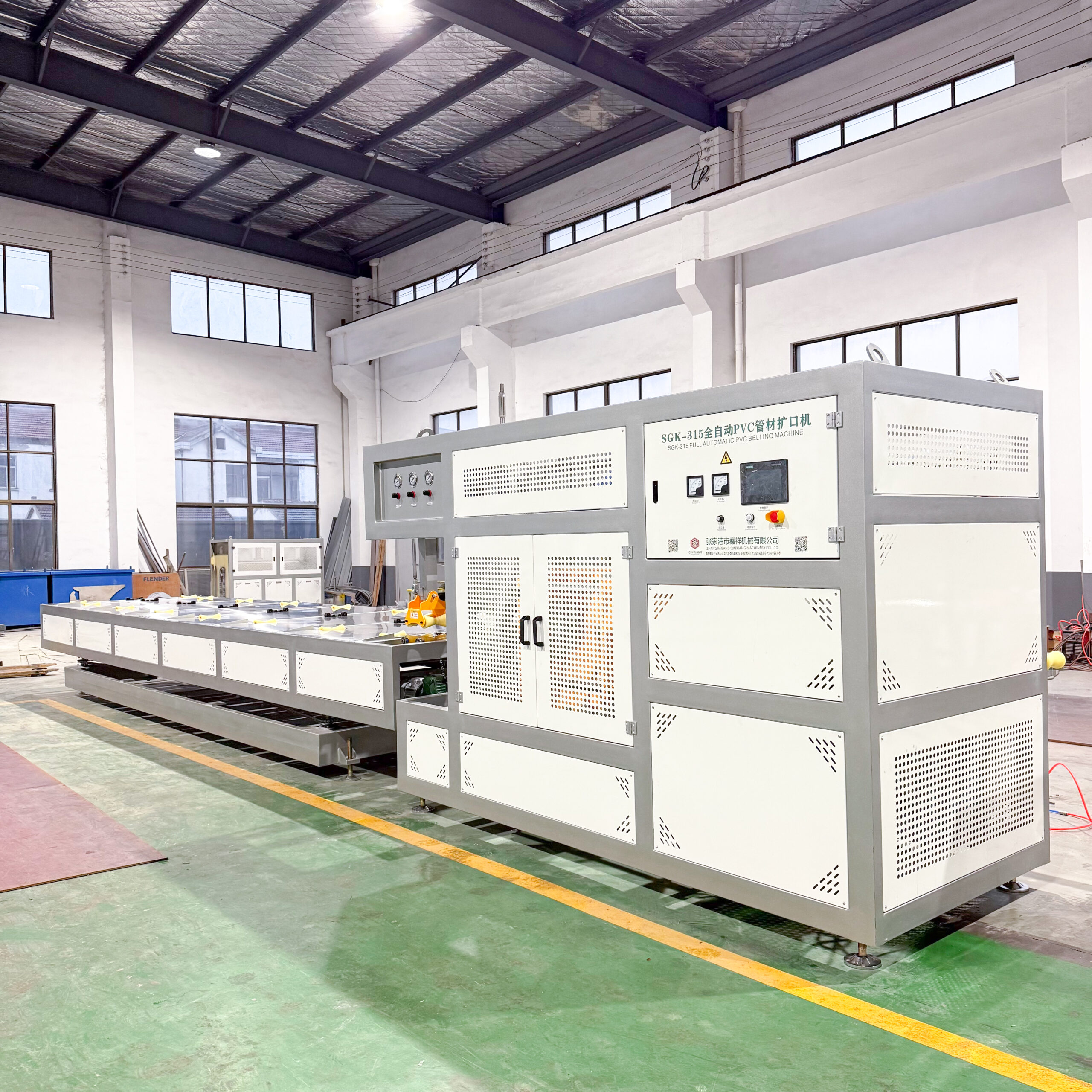

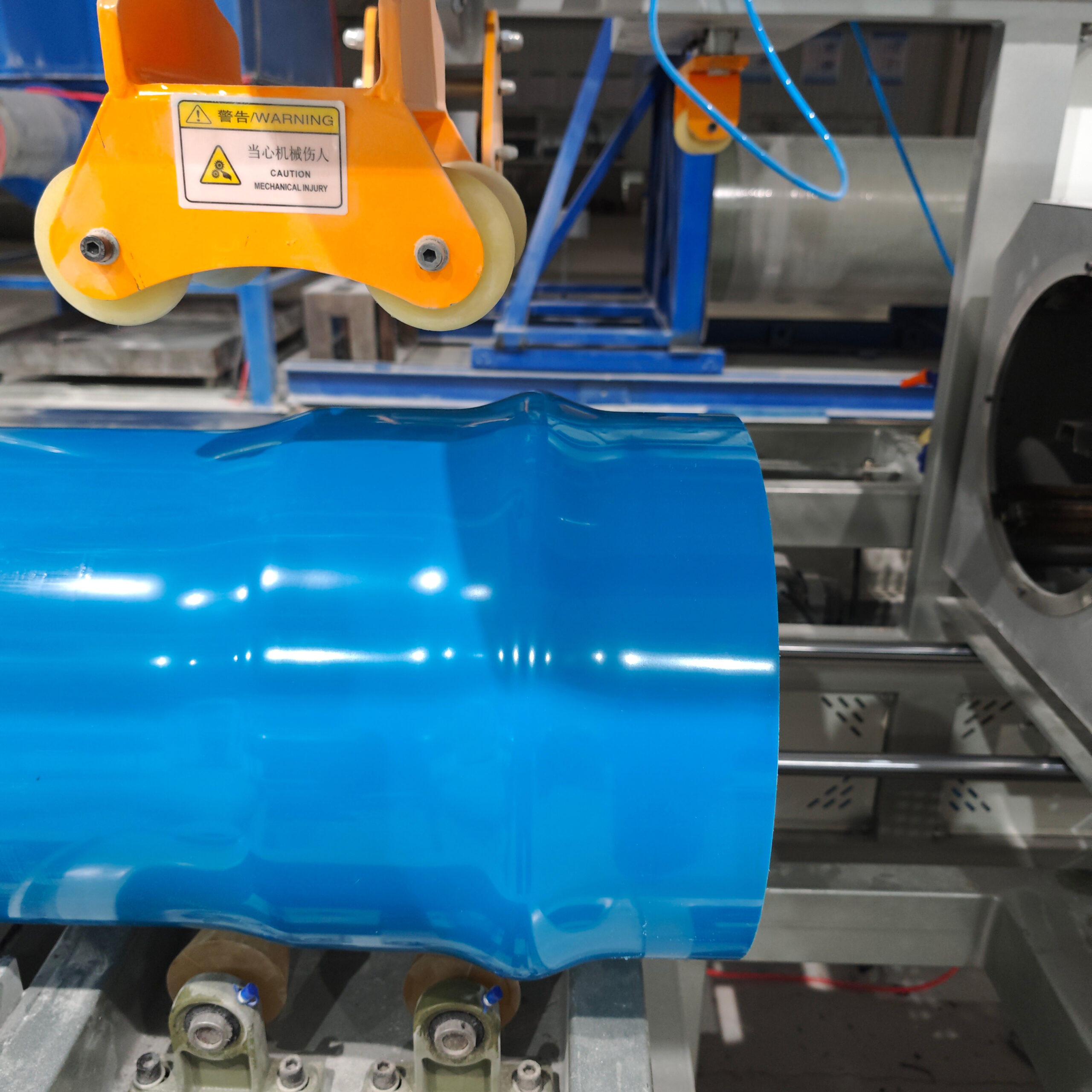

The belling machine is used to form pipe sockets. In the QTech case:
| Belling Machine Item | Configuration |
|---|---|
| Socket compatibility | R-type and U-type sockets |
| Heating method | Electric heating with air cooling |
| Control system | Siemens PLC |
The belling machine heats the pipe end, shapes it with a socket mold, cools it, and releases the finished socket. R-type and U-type compatibility allows customers to produce different pipe connection styles.
Benefits of cutting and belling systems:
| System | Benefit |
|---|---|
| Chipless cutter | Cleaner pipe ends and less waste |
| Servo cutting | Higher accuracy and stable operation |
| Integrated chamfering | Better socket preparation |
| Belling machine | Produces pipe sockets automatically |
| Siemens PLC control | More precise belling operation |
| R-type/U-type support | Wider product flexibility |
For PVC drainage, water supply, irrigation, and infrastructure pipes, good cutting and socketing quality directly affects installation performance.
7. How should customers choose the machines for a PVC pipe extrusion line?
Customers should choose each machine according to pipe diameter, wall thickness, PVC formula, output target, socket type, voltage, workshop layout, and automation level.
A PVC pipe extrusion line should not be selected only by extruder size. The mixer, extruder, mold, calibration tank, haul-off, cutter, belling machine, and control system must be matched as one production system.
Customer Selection Steps
| Step | What to Confirm | Why It Matters |
|---|---|---|
| Step 1 | Pipe application | Water supply, drainage, irrigation, cable protection, industrial use |
| Step 2 | Pipe diameter range | Determines extruder, die, calibration, haul-off, cutter |
| Step 3 | Wall thickness or pipe standard | Determines output and cooling requirements |
| Step 4 | PVC formula | Determines mixer, screw, and temperature control |
| Step 5 | Target output | Selects extruder and mixer capacity |
| Step 6 | Socket type | Determines belling machine configuration |
| Step 7 | Cutting length | Determines cutter control and line synchronization |
| Step 8 | Factory voltage | Configures electrical system |
| Step 9 | Workshop layout | Determines line arrangement and operation direction |
| Step 10 | Automation requirement | Determines PLC, servo, inverter, and touchscreen setup |
| Step 11 | Environmental and safety requirements | Supports compliance and factory approval |
In the QTech case, the customer needed a line for 110-315 mm PVC pipes with enhanced production efficiency, product quality, reduced downtime, and compliance with international standards. QTech engineered the line to meet these needs by matching high-capacity mixing, twin-screw extrusion, robust calibration, high-traction haul-off, servo cutting, and PLC belling.
Every QTech line is configured to the buyer’s market. Customers can send target output, raw material, product size range, local voltage, and workshop layout. QTech engineers will quote the correct screw, die, downstream, and control setup for the customer’s factory.
8. Why choose QTech Machinery for a PVC pipe extrusion line?
QTech Machinery provides customized PVC pipe extrusion lines with high-capacity mixers, durable twin-screw extruders, precision calibration, strong haul-off, clean cutting, automatic belling, and turnkey support.
A reliable PVC pipe extrusion line supplier should provide more than individual machines. The supplier should understand PVC formula processing, screw and barrel design, pipe die matching, vacuum calibration, cooling, traction, cutting, belling, control systems, and factory integration.
In the 110-315 PVC Pipe Extrusion Line case, QTech Machinery delivered an advanced line for a prominent pipe manufacturer. The project focused on high-quality output, operational efficiency, robust construction, advanced technology, lower operating cost, and reduced downtime.
QTech supplied:
- SRL500-1000 or SRL800-2000 high-speed mixing units
- SJSZ80/156 conical twin-screw extruder
- PVC pipe extrusion die and calibration system
- 8-meter stainless steel calibration tank
- Servo-driven four-claw haul-off machine
- 315 PVC pipe circular chipless cutting machine
- Integrated chamfering system
- R-type and U-type belling machine
- Siemens PLC and ABB/Inovance control components
QTech Machinery’s advantages include:
| QTech Advantage | Customer Benefit |
|---|---|
| Customized full-line engineering | Matches pipe size, formula, and output |
| High-capacity SRL mixers | Stable PVC dry blend preparation |
| 304 stainless steel mixing units | Durable and clean operation |
| SJSZ80/156 twin-screw extruder | High output for 110-315 mm pipes |
| Siemens motor and ABB inverter | Stable and efficient drive control |
| 38CrMoAlA nitrided screw | Longer service life |
| Cast aluminum heaters | Stable heating performance |
| 8 m stainless steel calibration tank | Accurate pipe sizing |
| Dual-loop cooling with RKC control | Better temperature stability |
| Four-claw servo haul-off | Strong traction up to 28,000 N |
| Chipless cutting with chamfering | Cleaner ends and lower waste |
| R-type/U-type belling | Flexible pipe connection styles |
| Siemens PLC belling control | Accurate and repeatable operation |
| OEM and ODM support | Flexible project cooperation |
| Voltage configuration | Suitable for global customers |
| Full run test before shipment | Lower installation risk |
| Quote in 24 hours | Faster project planning |

Recommended internal links:
- QTech Machinery Home
- Plastic Pipe Making Machine
- Plastic Extrusion Machine
- 110-315 PVC Pipe Extrusion Line Case
- QTech Machinery Cases
Recommended PVC Pipe Extrusion Line Configuration
The following table summarizes the reference configuration from the QTech 110-315 PVC pipe extrusion line case.
| Section | Recommended Configuration |
|---|---|
| Product | PVC pipes |
| Pipe diameter range | 110–315 mm |
| Application | Agricultural irrigation, construction, infrastructure, industrial applications |
| Material | PVC |
| Main extruder | SJSZ80/156 conical twin-screw extruder |
| Production capacity | 300–650 kg/h |
| Main motor | 55 kW Siemens motor |
| Speed control | ABB inverter |
| Screw material | 38CrMoAlA |
| Screw surface | Nitrided surface |
| Heating system | 36 kW cast aluminum heaters |
| Cooling system | Cooling fans |
| Calibration tank length | 8 meters |
| Calibration tank material | 5 mm stainless steel |
| Water cooling | Dual-loop water supply |
| Temperature control | RKC temperature control |
| Vacuum pumps | 5.5 kW and 4.5 kW Ningbo Fangli pumps |
| Haul-off machine | 110-315 caterpillar four-claw haul-off |
| Haul-off drive | Servo-driven |
| Maximum traction force | 28,000 N |
| Cutting machine | 315 PVC pipe circular chipless cutting machine |
| Cutter motor | 4 kW Inovance servo motor |
| Cutter feature | Integrated chamfering device |
| Belling machine | R-type and U-type socket belling |
| Belling heating | Electric heating with air cooling |
| Belling control | Siemens PLC |
| Mixing units | SRL500-1000 and SRL800-2000 high-speed mixers |
| Mixer material | 304 stainless steel |
| Hot mixing capacity | 500 L and 800 L |
| Cold mixing capacity | 1000 L and 2000 L |
Products We Can Provide
QTech Machinery can provide complete equipment for PVC pipe extrusion and related plastic pipe production projects.
| Product | Function |
|---|---|
| SRL high-speed mixer | PVC formula mixing |
| Conical twin-screw extruder | PVC plasticizing and extrusion |
| PVC pipe extrusion die | Pipe forming and wall thickness control |
| Vacuum calibration tank | Pipe sizing and roundness control |
| Spray cooling tank | Pipe cooling and dimensional stabilization |
| Caterpillar haul-off machine | Stable pipe traction |
| Chipless cutting machine | Clean pipe cutting |
| Chamfering device | Pipe end preparation |
| Belling machine | R-type and U-type socket forming |
| PLC control cabinet | Centralized production control |
| Touchscreen HMI | Easy operation |
| Automatic feeding system | Material transfer |
| Water cooling system | Process cooling |
| Pipe stacker | Finished pipe collection |
| Printer | Pipe surface marking |
| Spare parts | Screw, barrel, heater, vacuum pump, cutter blade, traction block, sensor |
Documents and Information Customers Should Prepare
To help QTech Machinery design the right PVC pipe extrusion line, customers should prepare the following information:
| Required Information | Purpose |
|---|---|
| Pipe application | Determines pipe standard and configuration |
| Pipe diameter range | Determines extruder, mold, downstream size |
| Wall thickness or SDR | Calculates output and cooling needs |
| PVC formulation | Determines mixer and screw design |
| Raw material data sheet | Confirms processing conditions |
| Target output | Selects extruder and mixer capacity |
| Pipe standard | Confirms tolerance and testing requirements |
| Socket type | Selects R-type, U-type, or other belling mold |
| Cutting length | Configures cutter and synchronization |
| Factory voltage | Configures electrical components |
| Workshop layout | Designs line arrangement |
| Operation direction | Matches factory logistics |
| Automation level | Determines PLC, servo, inverter, and HMI setup |
| Environmental requirements | Supports dust, noise, and safety planning |
| Sample photos or drawings | Helps engineers understand final product |
Practical References from Forums and Industry Sources
PVC pipe extrusion requires stable dry blend preparation, controlled plasticizing, accurate calibration, strong traction, clean cutting, and reliable socket forming. These topics are frequently discussed in plastics engineering communities and industry resources.
On the Eng-Tips Plastics Engineering Forum, engineers often discuss extrusion problems such as PVC degradation, unstable melt pressure, die buildup, wall thickness variation, calibration cooling issues, and cutting defects. These discussions support the practical conclusion that PVC pipe quality depends on the complete line configuration, not only the extruder.
Industry resources such as Plastics Technology provide articles on extrusion troubleshooting, PVC processing, material handling, screw design, temperature control, and process optimization. These topics are directly related to pipe production because consistent melt quality and synchronized downstream equipment reduce waste and downtime.
For extrusion fundamentals, ScienceDirect’s single screw extruder topic explains how plastics are conveyed, melted, pressurized, and metered inside extrusion systems. Although PVC pipe lines typically use conical twin-screw extruders, the basic extrusion principles of melting, pressure generation, and process stability are still useful for buyers.
For broader PVC material information and sustainability topics, the Vinyl Institute provides industry resources about PVC applications, durability, recycling, and performance.
These references support a key purchasing principle: a PVC pipe extrusion line should be selected as a complete engineered system, including mixing, extrusion, die design, calibration, cooling, haul-off, cutting, belling, control, and supplier support.
Conclusion
A PVC pipe extrusion line includes multiple machines working together: high-speed mixing units, conical twin-screw extruder, pipe die, vacuum calibration tank, cooling system, haul-off machine, chipless cutting machine, belling machine, and control system. Each machine has a specific role in producing high-quality PVC pipes with accurate diameter, stable wall thickness, clean pipe ends, and reliable socket connections.
QTech Machinery provides customized PVC pipe extrusion line solutions based on pipe diameter, wall thickness, PVC formula, target output, socket type, voltage, workshop layout, and automation needs. The reference 110-315 mm PVC pipe extrusion line included SRL500-1000 and SRL800-2000 mixers, an SJSZ80/156 conical twin-screw extruder, 8-meter stainless steel calibration tank, four-claw servo haul-off, circular chipless cutter with chamfering, and Siemens PLC-controlled belling machine.
If you are planning a PVC pipe production project, send us your pipe size range, wall thickness, PVC formula, output target, socket requirement, voltage, and workshop layout. Our engineering team will recommend the correct machine configuration for your factory.
