This video demonstrates the 12 Component Gravimetric Dosing System by QTech-Machinery, highlighting its key features and operation. Designed for accurate batching of plastic color powder, additives, and PVC raw materials, the system ensures high precision, efficiency,...
This video demonstrates the 12 Component Gravimetric Dosing System by QTech-Machinery, highlighting its key features and operation. Designed for accurate batching of plastic color powder, additives, and PVC raw materials, the system ensures high precision, efficiency, and stable production performance. Watch to learn how this advanced solution simplifies dosing for the plastic industry.
Process Stages Shown
Materials Covered
Configuration points shown or mentioned in the footage.
| Parameter | Value |
|---|---|
| Number of Components | 12 12 independent hoppers for different materials |
| Hopper Capacity | 10L (6 hoppers), 20L (6 hoppers) Suitable for small-dose materials like color powder and additives |
| Dosing Accuracy | ±1g Ensures precise material batching for consistent production |
| Feeding Type | Servo-controlled screw feeding Stable and accurate material dosing |
| Control System | PLC with 15-inch touch screen Allows easy recipe storage and quick changeover |
| Power Consumption | Installed power: 15KW; Actual running power: ≤1KW Energy-efficient operation |
| Material Contact Parts | SUS304 stainless steel Durable and easy to clean |
| Anti-Bridge Features | Pneumatic hammer and stirring device Prevents material discharge issues |
| Dust Collection | Dust collector on weighing hopper Ensures cleaner operation |
| Application | Plastic color powder, additives, PVC powder Designed for plastic industry production needs |

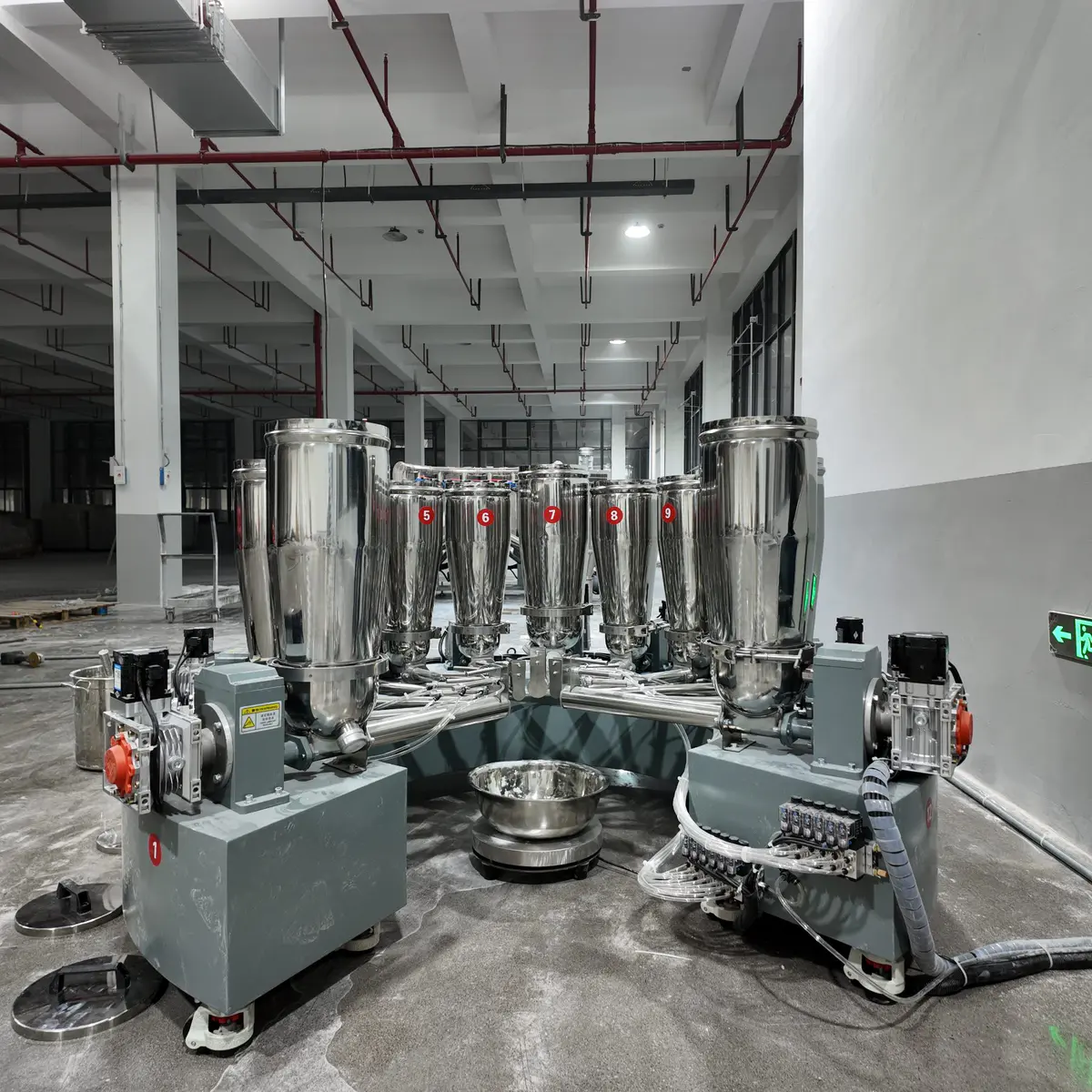

This video showcases a 12 Component Gravimetric Dosing System designed and supplied by QTech-Machinery for an overseas customer. The system is used for accurate batching of plastic color powder, additives, and PVC raw materials, ensuring high precision, efficiency, and ease of operation in plastic production lines.
Below is a summary of the key features and configurations of the Multi Component Dosing System:
| Feature | Details |
|---|---|
| Number of Components | 12 independent material hoppers |
| Hopper Capacity | 6 hoppers with 10L capacity, 6 hoppers with 20L capacity |
| Material Contact Parts | SUS304 stainless steel |
| Dosing Accuracy | ±1g |
| Feeding Type | Servo-controlled screw feeding |
| Control System | PLC with 15-inch touch screen |
| Power Consumption | Installed power: 15KW; Actual running power: ≤1KW |
| Anti-Bridge Features | Pneumatic hammer and stirring device for smooth material discharge |
| Dust Collection | Dust collector installed on weighing hopper top |
| Application | Suitable for plastic color powder, additives, PVC powder, and other small-dose materials |
The Servo Screw Gravimetric Dosing Machine combines advanced features to deliver the following benefits:
After installation and commissioning, the customer achieved:
The 12 Component Gravimetric Dosing System provided by QTech-Machinery is a reliable and efficient solution for plastic color powder and additive batching. Its high accuracy, servo-controlled feeding, and advanced PLC system make it ideal for the plastic industry, catering to diverse material and production requirements.
For more details and customized solutions, contact QTech-Machinery today!
The machine in this video is one configuration. Send your target output, raw material, product size range, and local voltage, and our engineers quote the correct screw, die, downstream, and control setup for your market.
If your question is not covered here, send it over. Maggie replies with drawings, test footage, or a spare parts list within 24 hours.
The system is designed for plastic color powder, additives, PVC powder, and other small-dose raw materials commonly used in the plastic industry.
The system achieves a dosing accuracy of ±1g, ensuring precise material batching for consistent production quality.
The system features 12 independent hoppers, allowing simultaneous batching of up to 12 different materials.
Yes, the system uses a PLC with a 15-inch touch screen interface for easy recipe storage, monitoring, and quick adjustments.
Each hopper is equipped with pneumatic hammers and stirring devices to ensure smooth material discharge and prevent bridging.
