This video helps clarify the structure, configuration and working process of QTech-Machinery’s dust-free feeding station project for an overseas customer. It shows how the equipment supports manual powder feeding, dust collection, pulse filter cleaning, screw conveying...
This video helps clarify the structure, configuration and working process of QTech-Machinery’s dust-free feeding station project for an overseas customer. It shows how the equipment supports manual powder feeding, dust collection, pulse filter cleaning, screw conveying and flexible workshop integration.
Process Stages Shown
Materials Covered
Configuration points shown or mentioned in the footage.
| Parameter | Value |
|---|---|
| Equipment Name | Dust-Free Feeding Station For powder feeding and dust collection |
| Total Quantity | 21 Sets Supplied for overseas customer project |
| Main Material | 304 Stainless Steel 2mm thickness |
| Filter Type | PTFE Coated Polyester Filter Cartridge Anti-sticking material design |
| Filter Area | Approx. 6㎡ For dust collection during feeding |
| Filter Quantity | 4 Pieces Installed inside each feeding station |
| Filter Size | 120 × 350mm Filter cartridge size |
| Dust Cleaning System | Pulse Back-Blowing Cleaning Automatic filter cleaning system |
| Pulse Valve | 2 Pieces Bag-type dust collector pulse valves |
| Air System | Compressed Air Tank + Air Distribution System Supports pulse cleaning |
| Vibration Device | Air Hammer Helps material discharge |
| Auger Drive | RV75 Reducer + 2.2kW Motor For screw conveying models |
| Speed Control | 2.2kW Inverter Controls auger feeding speed |
| Electrical Components | Schneider Electrical Components and Buttons For stable operation |
| Explosion-Proof Design | Explosion-Proof Electric Box, Pulse System and Solenoid Valve For safer powder handling |

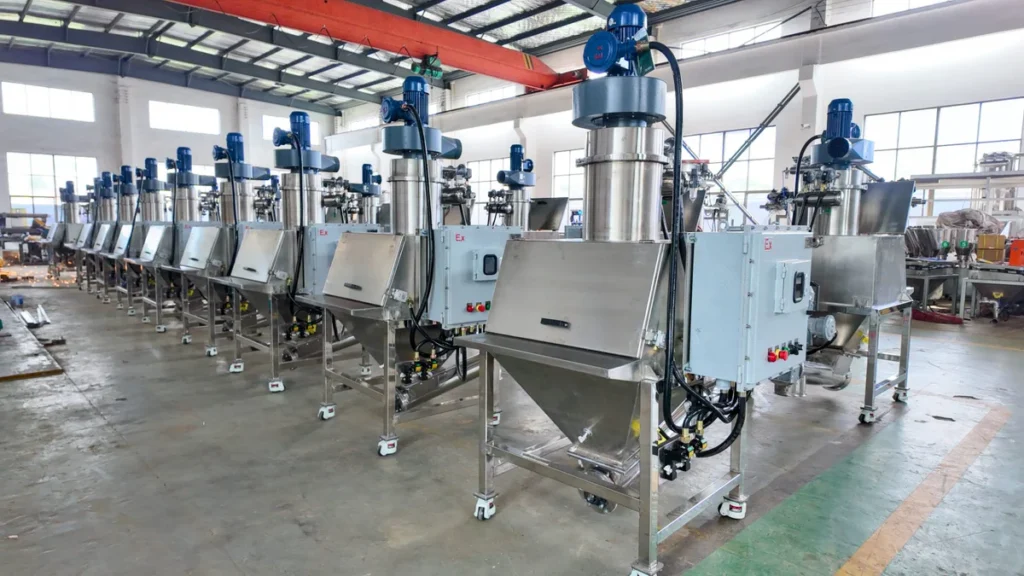

This video presents a dust-free feeding station project supplied by QTech-Machinery for an overseas customer. The project includes 21 sets of dust-free feeding stations designed for powder material feeding, dust collection and workshop dust reduction.
The equipment is made with a 304 stainless steel body, equipped with PTFE coated filter cartridges, a pulse back-blowing cleaning system, air hammer, explosion-proof electrical components and movable bottom wheels.
The video shows how the dust-free feeding station works during powder material handling. When operators feed material into the hopper, dust generated during feeding is collected by the built-in filter system.
The pulse back-blowing cleaning system helps clean the filter cartridges automatically and maintain stable dust collection performance.
The overseas customer needed a reliable feeding solution for multiple powder feeding points in the workshop.
| Requirement | Purpose |
|---|---|
| Dust-free feeding | Reduce powder dust during manual feeding |
| Stainless steel structure | Improve durability and cleanliness |
| Pulse filter cleaning | Maintain stable dust collection performance |
| Different outlet configurations | Match different production line layouts |
| Explosion-proof electrical design | Improve safety for powder handling |
| Movable machine base | Support flexible workshop placement |

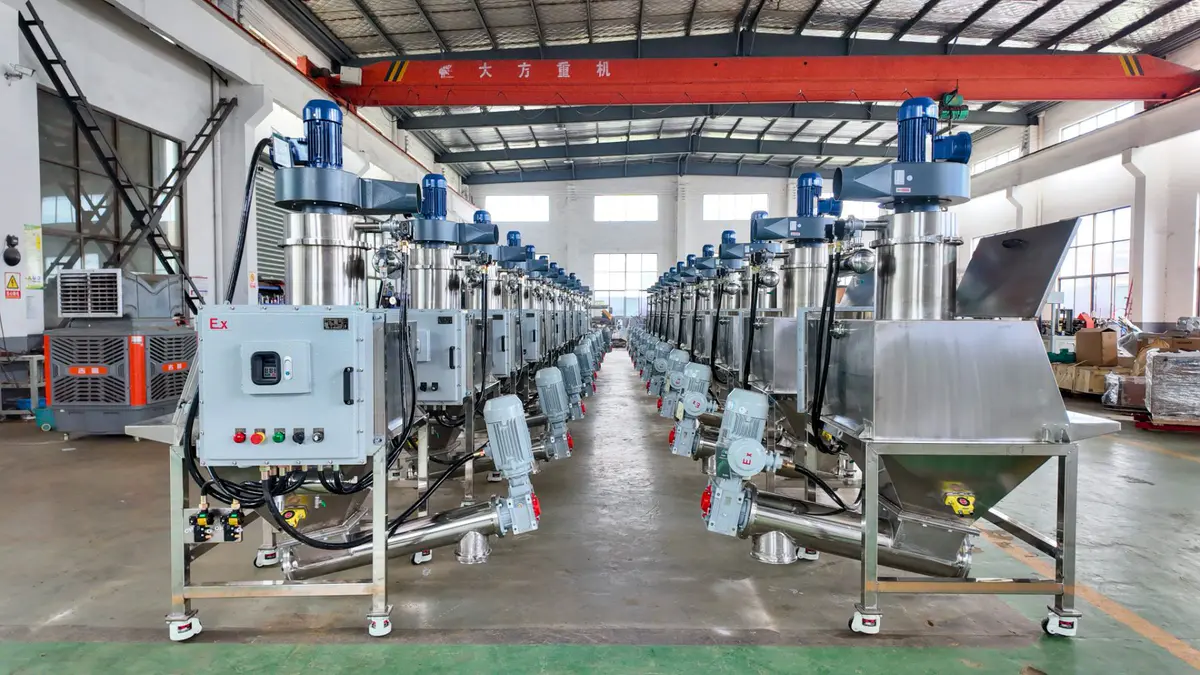

QTech-Machinery provided 21 sets of dust-free feeding stations with different configurations to match the customer’s feeding process and workshop layout.
| Model | Quantity | Main Feature |
|---|---|---|
| Dust-Free Feeding Station with 219 Screw Auger | 9 Sets | For dust-free feeding and screw conveying |
| Dust-Free Feeding Station with 159 Screw Auger | 10 Sets | For smaller screw conveying connection |
| Dust-Free Feeding Station with 219 Outlet Without Auger | 2 Sets | For dust-free feeding without integrated screw conveyor |
| Total | 21 Sets | Customized for multiple feeding points |
| Item | Configuration |
|---|---|
| Equipment Name | Dust-Free Feeding Station |
| Main Material | 304 Stainless Steel, 2mm Thickness |
| Filter Type | PTFE Coated Polyester Filter Cartridge |
| Filter Area | Approx. 6㎡ |
| Filter Quantity | 4 Pieces |
| Filter Size | 120 × 350mm |
| Dust Cleaning System | Pulse Back-Blowing Automatic Cleaning |
| Pulse Valve | Bag-Type Dust Collector Pulse Valve |
| Air System | Compressed Air Tank + Air Distribution System |
| Vibration Device | Air Hammer |
| Control System | Pulse Controller with Adjustable Time and Cycle |
| Electrical Components | Schneider Electrical Components and Buttons |
| Explosion-Proof Parts | Explosion-Proof Electric Box, Pulse System and Solenoid Valve |
| Mobility | Universal Wheels on Bottom Feet |
| Hopper Screen | Built-in Filter Screen, 30 × 30mm Mesh |
| Manufacturing Method | Customized According to Drawing |
This model is used for dust-free manual feeding and screw conveying. It is equipped with a 219 screw auger, RV75 reducer, 2.2kW motor and 2.2kW inverter for controlling conveying speed.
| Item | Specification |
|---|---|
| Quantity | 9 Sets |
| Auger Type | 219 Screw Auger |
| Speed Control | 2.2kW Inverter |
| Reducer | RV75 Reducer |
| Motor Power | 2.2kW |
| Function | Dust-Free Feeding + Screw Conveying |
This model adopts a 159 screw auger and is suitable for production points requiring a smaller screw conveying connection.
| Item | Specification |
|---|---|
| Quantity | 10 Sets |
| Auger Type | 159 Screw Auger |
| Speed Control | 2.2kW Inverter |
| Reducer | RV75 Reducer |
| Motor Power | 2.2kW |
| Function | Dust-Free Feeding + Smaller Screw Conveying Outlet |

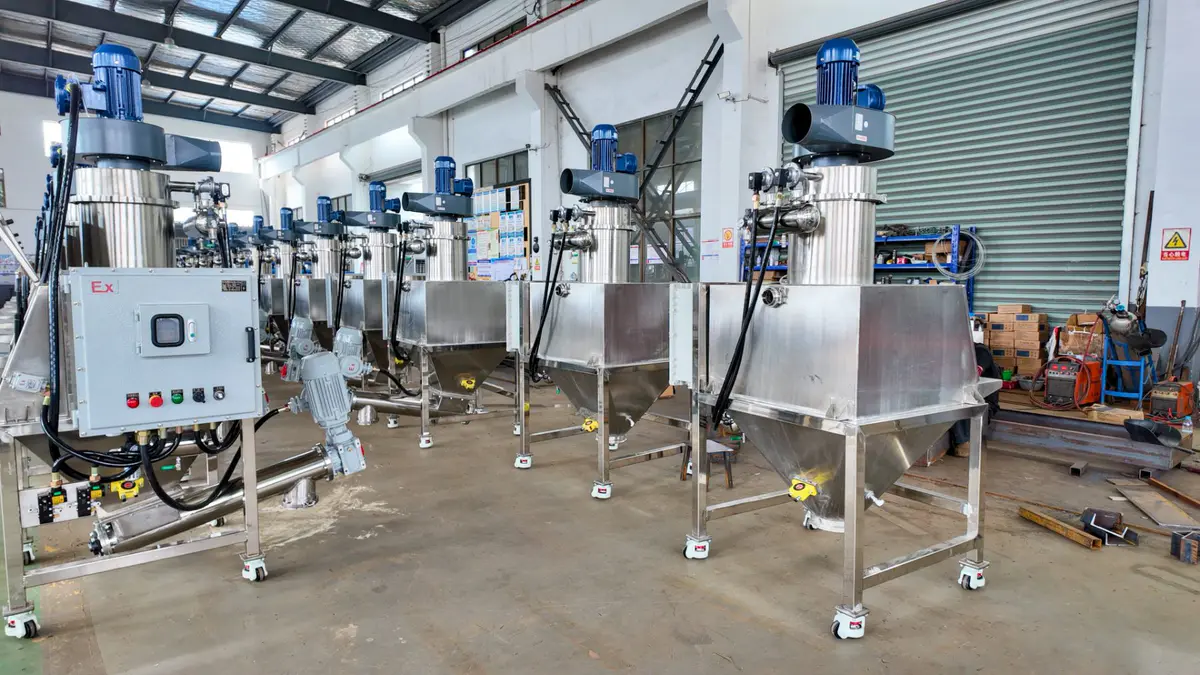

This model is designed with a 219 outlet without screw auger, suitable for feeding points where an integrated screw conveyor is not required.
| Item | Specification |
|---|---|
| Quantity | 2 Sets |
| Outlet Type | 219 Outlet |
| Screw Auger | Not Included |
| Function | Dust-Free Feeding + Direct Discharge |
| Manufacturing | Customized According to Drawing |
| Benefit | Description |
|---|---|
| Dust Reduction | Captures dust generated during manual feeding |
| Stable Filtration | PTFE coated filter cartridges with pulse cleaning |
| Safer Operation | Explosion-proof electrical components for powder handling |
| Flexible Use | Universal wheels allow easier movement in the workshop |
| Easy Integration | Auger and outlet options match different production lines |
| Better Discharge | Air hammer helps reduce material sticking and bridging |
This video demonstrates a complete dust-free feeding station project supplied by QTech-Machinery for an overseas customer. The project includes 21 customized machines with different screw auger and outlet configurations, designed for powder feeding, dust collection and flexible workshop integration.
With 304 stainless steel construction, PTFE coated filter cartridges, pulse back-blowing cleaning, air hammer, explosion-proof electrical components and customized discharge options, the dust-free feeding station provides a practical solution for cleaner, safer and more efficient powder material handling.
The machine in this video is one configuration. Send your target output, raw material, product size range, and local voltage, and our engineers quote the correct screw, die, downstream, and control setup for your market.
If your question is not covered here, send it over. Maggie replies with drawings, test footage, or a spare parts list within 24 hours.
It is used for manual powder feeding while collecting dust generated during dumping, helping keep the workshop cleaner and reducing material loss.
The main body is made of 304 stainless steel with 2mm thickness, suitable for powder handling applications requiring durability and cleanliness.
The station uses PTFE coated polyester filter cartridges with pulse back-blowing cleaning. Dust is collected by the filters and cleaned automatically by compressed air pulses.
Yes. The video shows several configurations, including 219 screw auger, 159 screw auger and 219 outlet without auger, allowing integration with different production layouts.
An air hammer is installed on the hopper to assist material flow and reduce bridging during powder discharge.
Yes. The screw auger is driven by an RV75 reducer and 2.2kW motor, with a 2.2kW inverter for adjusting the feeding speed.
Yes. The configuration includes explosion-proof electric box, pulse system and solenoid valve, as well as Schneider electrical components and buttons.
Yes. The bottom feet are equipped with universal wheels, making it convenient to move, position and integrate into different workshop feeding points.
