How to Choose the Right MPP Pipe Extrusion Line?
Choosing the right MPP pipe extrusion line is essential for manufacturers who want to produce high-strength, heat-resistant, and durable modified polypropylene pipes for cable protection, municipal engineering, construction infrastructure, industrial applications, and agricultural irrigation. Because MPP pipe production usually involves medium-to-large pipe diameters and high output requirements, the extrusion line must be carefully configured according to pipe diameter, wall thickness, output capacity, cooling length, haul-off force, cutting method, automation level, and factory conditions.

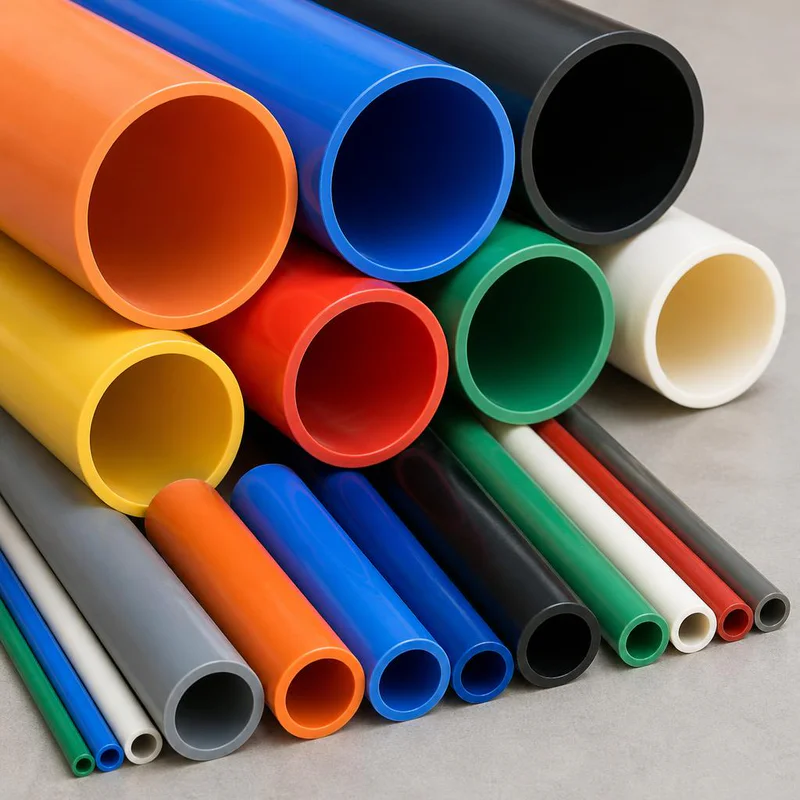

MPP, or modified polypropylene, has good heat resistance, electrical insulation, impact strength, and corrosion resistance. It is commonly used for power cable protection pipes and non-excavation underground installation projects. A suitable MPP pipe extrusion line should provide stable plasticizing, accurate pipe sizing, strong traction, efficient cooling, precise cutting, and reliable control.
Based on the QTech Machinery MPP pipe extrusion line case, a successful line is not a standard machine package, but a customized extrusion system designed for the buyer’s material, pipe size range, output target, local voltage, and production requirements.
1. What is an MPP pipe extrusion line?
An MPP pipe extrusion line is a complete production system used to manufacture modified polypropylene pipes through plasticizing, die forming, vacuum calibration, cooling, haul-off, and cutting.
An MPP pipe extrusion line is designed to process modified polypropylene material into pipes with stable dimensions and strong mechanical performance. The production process starts with material feeding, then the material is melted and plasticized by the single screw extruder. After passing through the pipe die, the molten material is shaped into a pipe. The pipe is then vacuum-calibrated, cooled, hauled off, cut, and collected.
A complete MPP pipe extrusion line usually includes:
| Main Equipment | Function |
|---|---|
| Material feeding system | Transfers MPP material into the extruder |
| Single screw extruder | Melts, plasticizes, and extrudes MPP |
| Pipe extrusion mold | Forms pipe diameter and wall thickness |
| Vacuum calibration tank | Controls pipe diameter and roundness |
| Spray cooling tank | Cools and stabilizes pipe structure |
| Servo haul-off machine | Provides stable pulling force |
| Cutting machine | Cuts pipe to required length |
| PLC control system | Coordinates the full production line |
In the QTech Machinery case, the line was designed for MPP pipes with diameters from 110 mm to 250 mm, showing how a complete system must be configured around the customer’s real product range.
Reference case: MPP Pipe Extrusion Line
2. What pipe diameter range do you need to produce?
Pipe diameter range determines the extruder output, pipe mold, vacuum tank, cooling capacity, haul-off force, and cutting machine specification.
MPP pipes are commonly used for power cable protection and underground engineering, so pipe diameter is one of the most important selection factors. Different diameter ranges require different die heads, calibration sleeves, cooling lengths, traction systems, and cutting methods.
In the QTech case, the customer required an extrusion line capable of producing MPP pipes from 110 mm to 250 mm. To meet this range, QTech supplied a Φ110–250 mm three-layer MPP pipe mold made from high-quality 40Cr material. The mold was designed to support different pipe diameters and maintain uniform wall thickness.
When selecting your pipe diameter range, you should confirm:
| Selection Item | Why It Matters |
|---|---|
| Minimum pipe diameter | Determines smallest die and calibration sleeve |
| Maximum pipe diameter | Determines extruder capacity and cooling size |
| Wall thickness | Affects material consumption and strength |
| Single-layer or multi-layer pipe | Affects die structure and production cost |
| Product standard | Determines tolerance and testing requirements |
| Application | Cable protection, municipal engineering, construction, etc. |
If the selected line cannot match the maximum diameter, production may become unstable. If the line is oversized for small pipes, energy consumption and investment cost may increase. Therefore, a customized diameter-based configuration is the best choice.
3. What output capacity should an MPP pipe extrusion line have?
The required output depends on pipe size, wall thickness, material formulation, production schedule, and market demand.
Output capacity is a key factor in choosing an MPP pipe extrusion line. Higher output can reduce unit production cost, but only when the whole line is properly matched. The extruder, die, vacuum tank, cooling tank, haul-off machine, and cutter must work together.
In the QTech Machinery MPP pipe extrusion line case, the client required a production capacity between 150 kg/h and 500 kg/h. The supplied line used an SJ60/38 high-speed single screw extruder, which achieved an extrusion output of 150–450 kg/h.
Key extruder configuration:
| Item | Configuration |
|---|---|
| Extruder model | SJ60/38 high-speed single screw extruder |
| Output | 150–450 kg/h |
| Motor power | 110 kW |
| Motor type | Permanent magnet synchronous servo motor |
| Screw diameter | 60 mm |
| L/D ratio | 38:1 |
| Suitable pipe range | Φ110–250 mm MPP pipes |
The 38:1 L/D ratio provides enough plasticizing length for improved melt quality and stable extrusion. The 110 kW permanent magnet synchronous servo motor supports high-output production with better energy efficiency and precise speed control.
For buyers with smaller output needs, our SJ65/28 single screw servo extruder can also be used in customized plastic pipe or tube extrusion projects. It offers 0–60 kg/h output, a 37 kW Inovance servo motor, optimized BM screw, 38CrMoALA nitrided screw and barrel, Siemens PLC, and MCGS touchscreen. This makes it suitable for smaller precision pipe projects, pilot lines, or special material extrusion.
4. Why is the screw and motor system important for MPP pipe extrusion?
The screw and motor system determine plasticizing efficiency, melt stability, energy consumption, pipe quality, and long-term production reliability.
MPP material requires stable plasticizing and sufficient extrusion pressure. If the screw design is not suitable, the pipe may suffer from unstable wall thickness, surface defects, low output, poor roundness, or material degradation.
The QTech MPP project used a high-speed single screw extruder with a 60 mm screw diameter and 38:1 L/D ratio. This configuration improves material melting, mixing, and conveying performance for MPP pipe production.
The permanent magnet synchronous servo motor also plays an important role. Compared with traditional motor systems, servo drive technology can provide:
| Servo Motor Advantage | Benefit for MPP Pipe Production |
|---|---|
| Accurate speed control | Stable extrusion output |
| High torque response | Better processing stability |
| Energy efficiency | Lower electricity cost |
| Stable operation | Reduced pipe defects |
| Easier automation | Better line synchronization |
| Real-time control | Supports Industry 4.0 upgrades |
Our product advantage is that we can configure the extruder according to customer needs. For high-output MPP pipes, we recommend high-speed single screw extruders such as SJ60/38. For smaller precision applications, our SJ65/28 servo extruder uses a 37 kW Inovance permanent magnet synchronous servo motor, Guomao 200 gearbox, Flender direct coupling, and optimized BM screw structure to support stable and efficient extrusion.
5. How do vacuum calibration and cooling systems affect pipe quality?
Vacuum calibration and cooling systems control pipe diameter, roundness, surface finish, shrinkage, and final dimensional stability.
After the MPP melt exits the die head, it must be shaped and cooled quickly and evenly. Poor vacuum calibration or insufficient cooling can cause ovality, unstable dimensions, surface marks, internal stress, or pipe deformation.
In the QTech case, the MPP pipe line included:
| Cooling and Calibration Section | Configuration |
|---|---|
| Vacuum calibration tank | 9-meter tank |
| Vacuum pumps | Two 5 kW vacuum pumps |
| Spray cooling tank | 6-meter spray cooling tank |
| Material | Stainless steel |
| Function | Pipe sizing, cooling, and dimensional stabilization |
The 9-meter vacuum calibration tank helps ensure accurate pipe diameter and roundness. The dual 5 kW vacuum pumps provide stable vacuum force for calibration. The 6-meter spray cooling tank provides additional cooling to stabilize the pipe before haul-off and cutting.
For MPP pipes with diameters from 110 mm to 250 mm, sufficient cooling length is very important because larger pipes retain more heat. If the pipe is not fully cooled before cutting, it may deform or lose dimensional accuracy.
A high-quality stainless steel cooling system also improves durability, corrosion resistance, and long-term maintenance convenience.
6. Why is the haul-off and cutting system critical for MPP pipe production?
The haul-off and cutting system controls pipe speed, wall thickness stability, cutting accuracy, and final pipe appearance.
The haul-off machine pulls the pipe from the extrusion line at a controlled speed. If the pulling speed fluctuates, pipe wall thickness and diameter may become unstable. For medium and large MPP pipes, strong and stable traction is required.
In the QTech MPP pipe extrusion line case, the line used a four-claw servo haul-off machine with:
| Haul-Off Item | Configuration |
|---|---|
| Haul-off type | Four-claw servo haul-off |
| Track system | Four tracks |
| Maximum pulling force | 10,000 N |
| Drive system | Servo motors |
| Benefit | Stable and precise pipe traction |
The four-claw structure provides stronger and more balanced traction for larger diameter pipes. Servo control improves speed accuracy and helps synchronize the haul-off with extrusion output.
The cutting system is also important. QTech supplied a ringless cutting machine with a hydraulic feeding system and Siemens PLC control. This type of cutter helps achieve precise, efficient cutting with better pipe end quality.
| Cutting System | Benefit |
|---|---|
| Ringless cutting | Clean pipe end and efficient cutting |
| Hydraulic feeding | Stable cutting movement |
| Siemens PLC control | Accurate control and automation |
| Matched with haul-off speed | Better length accuracy |
A well-matched haul-off and cutting system reduces waste, improves product quality, and increases production efficiency.
7. What automation level should an MPP pipe extrusion line have?
A modern MPP pipe extrusion line should have PLC control, servo synchronization, real-time monitoring, user-friendly operation, and optional Industry 4.0 functions.
Automation helps improve production stability and reduce operator dependence. In MPP pipe production, the extruder, vacuum tank, cooling tank, haul-off, and cutter must work together. A strong control system makes this coordination easier.
In the QTech case, the customer required robust automation, energy efficiency, compatibility with existing infrastructure, minimal maintenance, and user-friendly operation. QTech designed the extrusion line with a sophisticated control system and Industry 4.0 compatibility, supporting real-time monitoring and predictive maintenance.
Recommended automation features include:
| Automation Feature | Benefit |
|---|---|
| PLC control | Centralized line control |
| HMI touchscreen | Easy operation |
| Servo drive | Accurate speed synchronization |
| Real-time monitoring | Better production management |
| Alarm system | Faster troubleshooting |
| Data collection | Supports productivity analysis |
| Predictive maintenance | Reduces unexpected downtime |
| Remote support option | Faster technical assistance |
Our SJ65/28 servo extruder also supports Siemens PLC control, MCGS touchscreen, and Ethernet communication, which can provide access to controller data and production information such as downtime rate and productivity. This type of control system helps customers improve production management and prepare for future smart manufacturing upgrades.
8. Why should you choose QTech Machinery for an MPP pipe extrusion line?
QTech Machinery provides customized MPP pipe extrusion solutions with high-efficiency extruders, precision molds, stainless steel cooling systems, servo haul-off, accurate cutting, and full engineering support.
A reliable extrusion line supplier should be able to design the whole system around the customer’s product, not just supply individual machines. For MPP pipe production, the screw, die, vacuum tank, cooling tank, haul-off, cutting machine, and control system must be correctly matched.
In the MPP Pipe Extrusion Line case, QTech Machinery delivered a customized solution for pipes from 110 mm to 250 mm and production capacity of 150–500 kg/h. The solution included a high-speed single screw extruder, three-layer MPP pipe mold, vacuum calibration and cooling system, four-claw servo haul-off machine, and ringless cutting machine.
QTech Machinery’s advantages include:
| QTech Advantage | Customer Benefit |
|---|---|
| Customized line design | Matches actual pipe size and output |
| High-speed single screw extrusion | Higher production efficiency |
| Permanent magnet servo motor | Energy saving and stable output |
| Precision 40Cr pipe mold | Uniform wall thickness |
| Long vacuum and cooling tanks | Better dimensional stability |
| Four-claw servo haul-off | Strong and stable traction |
| PLC-controlled cutting | Accurate pipe length |
| OEM and ODM support | Flexible project cooperation |
| Voltage configuration | Suitable for global markets |
| Full run test before shipment | Lower installation risk |
| Quote in 24 hours | Faster project decision |
Recommended internal links:
- QTech Machinery Home
- Plastic Pipe Making Machine
- Plastic Extrusion Machine
- MPP Pipe Extrusion Line Case
- QTech Machinery Cases
Recommended MPP Pipe Extrusion Line Configuration
The following table summarizes the reference configuration from the QTech MPP pipe extrusion line case.
| Section | Recommended Configuration |
|---|---|
| Pipe material | MPP |
| Pipe diameter range | Φ110–250 mm |
| Target output | 150–500 kg/h |
| Main extruder | SJ60/38 high-speed single screw extruder |
| Extruder output | 150–450 kg/h |
| Motor power | 110 kW |
| Motor type | Permanent magnet synchronous servo motor |
| Screw diameter | 60 mm |
| Screw L/D ratio | 38:1 |
| Pipe mold | Φ110–250 mm three-layer MPP pipe mold |
| Mold material | 40Cr |
| Vacuum tank | 9 m vacuum calibration tank |
| Vacuum pumps | Two 5 kW vacuum pumps |
| Cooling tank | 6 m spray cooling tank |
| Tank material | Stainless steel |
| Haul-off machine | Four-claw servo haul-off |
| Maximum pulling force | 10,000 N |
| Cutting machine | Ringless cutting machine |
| Cutting control | Siemens PLC |
| Feeding method | Hydraulic feeding system |
| Automation | Real-time monitoring and Industry 4.0 compatibility |
Customer Selection Steps
Customers can follow these steps when choosing an MPP pipe extrusion line:
Step 1: Confirm the pipe application
Decide whether the pipe will be used for power cable protection, municipal engineering, construction infrastructure, agricultural irrigation, or industrial protection.
Step 2: Confirm pipe diameter range
Provide the minimum and maximum pipe diameter, such as Φ110–250 mm.
Step 3: Confirm wall thickness and standard
Provide wall thickness, pressure or strength requirements, and any local standard if applicable.
Step 4: Confirm target output
Tell us your required production capacity in kg/h or pipe length per hour.
Step 5: Confirm material formulation
Provide MPP material details, filler ratio, recycled content if any, and processing temperature recommendations.
Step 6: Confirm factory voltage and layout
Provide voltage, frequency, phase, workshop dimensions, and installation direction.
Step 7: Choose automation level
Select standard control, PLC/HMI control, servo control, real-time monitoring, or Industry 4.0 integration.
Step 8: Review proposal and testing plan
Our engineers will provide machine configuration, quotation, layout drawing, delivery plan, and optional testing arrangement.
Products We Can Provide
QTech Machinery can provide complete MPP pipe extrusion equipment and related systems.
| Product | Function |
|---|---|
| High-speed single screw extruder | Plasticizing and extrusion |
| Servo single screw extruder | Precision and energy-saving extrusion |
| MPP pipe extrusion mold | Pipe forming and wall thickness control |
| Vacuum calibration tank | Pipe sizing and roundness control |
| Spray cooling tank | Pipe cooling and stabilization |
| Four-claw haul-off machine | Stable traction for medium-large pipes |
| Ringless cutting machine | Accurate pipe cutting |
| Material feeding system | Automatic feeding |
| Dryer or hopper system | Material preparation |
| PLC control cabinet | Centralized control |
| HMI touchscreen | Easy operation |
| Electrical system | Voltage and power configuration |
| Pipe stacking system | Product collection |
| Spare parts | Screw, barrel, heater, cutter blade, pump, sensor, traction block |
Documents and Information Customers Should Prepare
To configure the correct MPP pipe extrusion line, customers should prepare the following information:
| Required Information | Purpose |
|---|---|
| Pipe application | Determine performance and configuration |
| MPP material data sheet | Select screw, temperature, and die design |
| Pipe diameter range | Select mold, vacuum tank, haul-off, cutter |
| Wall thickness | Calculate output and cooling requirement |
| Pipe standard | Confirm tolerance and product performance |
| Target output | Select extruder and downstream capacity |
| Production speed | Match cooling and haul-off systems |
| Factory voltage | Configure electrical system |
| Workshop layout | Design line layout |
| Automation requirement | Configure PLC, HMI, servo, data system |
| Sample photos or drawings | Improve engineering accuracy |
| Packaging or stacking method | Configure downstream collection |
Practical References from Forums and Industry Sources
MPP pipe extrusion depends on stable melt flow, accurate cooling, and good downstream synchronization. These topics are frequently discussed in technical communities and industry resources.
For example, engineers on the Eng-Tips Plastics Engineering Forum often discuss extrusion problems related to screw design, melt temperature variation, output instability, cooling limitations, and pipe dimensional control. These discussions support the practical idea that pipe quality is not only determined by the extruder, but by the complete line configuration.
Industry media such as Plastics Technology regularly covers extrusion troubleshooting, energy-saving drives, material handling, and process optimization. These topics are highly relevant to MPP pipe extrusion because energy efficiency, stable output, and automation are major concerns for modern pipe manufacturers.
For buyers who want to understand extrusion fundamentals, ScienceDirect’s single screw extruder topic explains plastic conveying, melting, pressure building, and metering principles. This helps explain why screw L/D ratio, motor control, die design, and cooling setup are important for pipe production.
These references show that selecting an MPP pipe extrusion line should be based on engineering matching, not simply on machine price. A well-designed extrusion line must combine the right extruder, mold, cooling system, haul-off, cutter, and control system.
Conclusion
Choosing the right MPP pipe extrusion line requires a complete evaluation of pipe diameter, wall thickness, output capacity, material formulation, screw design, motor system, mold structure, vacuum calibration, cooling length, haul-off force, cutting method, automation level, and supplier capability.
QTech Machinery can provide customized MPP pipe extrusion solutions for applications such as cable protection, municipal engineering, construction infrastructure, industrial applications, and agricultural irrigation. Based on the QTech MPP pipe extrusion line case, a high-performance line may include an SJ60/38 high-speed single screw extruder, Φ110–250 mm three-layer MPP pipe mold, 9 m vacuum calibration tank, 6 m spray cooling tank, four-claw servo haul-off machine, and PLC-controlled ringless cutting machine.
If you are planning an MPP pipe production project, send us your pipe diameter range, wall thickness, target output, MPP material details, voltage, and workshop layout. Our engineering team will recommend the right extrusion line configuration for your factory.
