What is a PE Core Tube Extrusion Line Used For?
A PE Core Tube Extrusion Line is used to produce strong, round, and dimensionally stable polyethylene core tubes for roll winding applications such as film rolls, paper rolls, tape rolls, packaging rolls, and industrial material rolls.
For converters, packaging manufacturers, paper mills, film producers, and tape manufacturers, the quality of the core tube directly affects winding stability, roll appearance, storage safety, and downstream handling efficiency. A well-configured extrusion line can help manufacturers produce PE core tubes with consistent inner diameter, smooth surface, stable wall thickness, and clean fixed-length cutting.
QTech-Machinery provides customized PE core tube extrusion solutions based on tube size, material formula, output requirement, factory voltage, and automation level. Our typical configuration includes an SJ75/33 single screw extruder, 7m vacuum calibration tank, three-caterpillar servo haul-off, fixed-length chipless cutting machine, drying mixer, and auxiliary finishing equipment.
1. What is a PE Core Tube Extrusion Line used for?

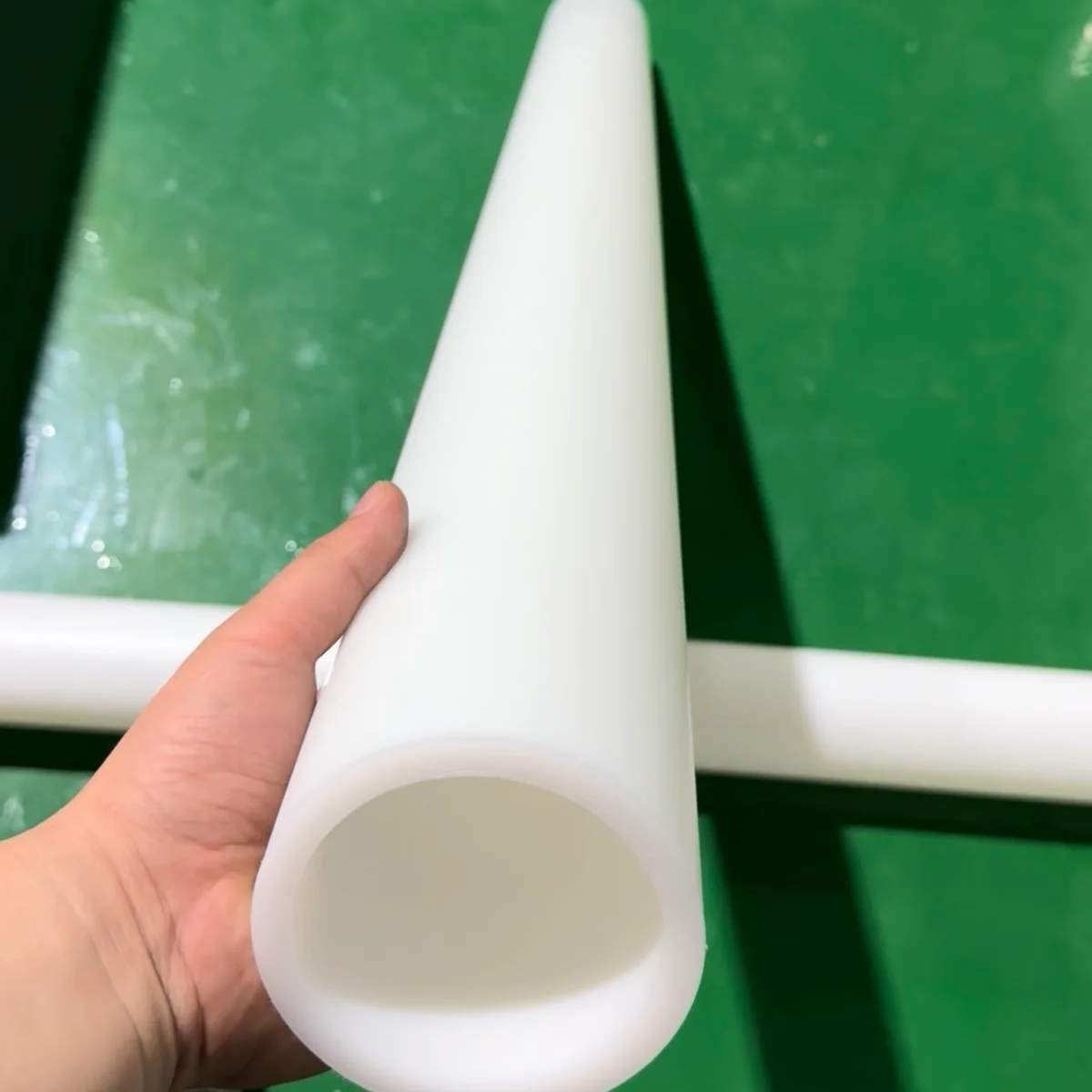

A PE Core Tube Extrusion Line is used to manufacture plastic core tubes for winding film, paper, tape, labels, packaging materials, and other roll products.
A PE core tube works as the central support for roll-based products. During winding, storage, transportation, and unwinding, the core tube must maintain its shape and strength. If the core is not round, not strong enough, or not accurately sized, the finished roll may deform, collapse, or run unstably during use.
PE core tubes are widely used in:
- Plastic film rolls
- Stretch film rolls
- BOPP film rolls
- Paper rolls
- Adhesive tape rolls
- Label material rolls
- Packaging material rolls
- Industrial winding cores
Compared with paper cores, PE core tubes can offer better moisture resistance, cleaner appearance, and improved durability in certain applications. This makes them suitable for manufacturers who require cleaner, stronger, or reusable winding cores.
QTech-Machinery’s PE Core Tube Extrusion Line is designed for stable production of core tubes with common inner diameters such as 77 mm and 152 mm, which are often used in roll winding industries.
2. What products can be made by a PE Core Tube Extrusion Line?

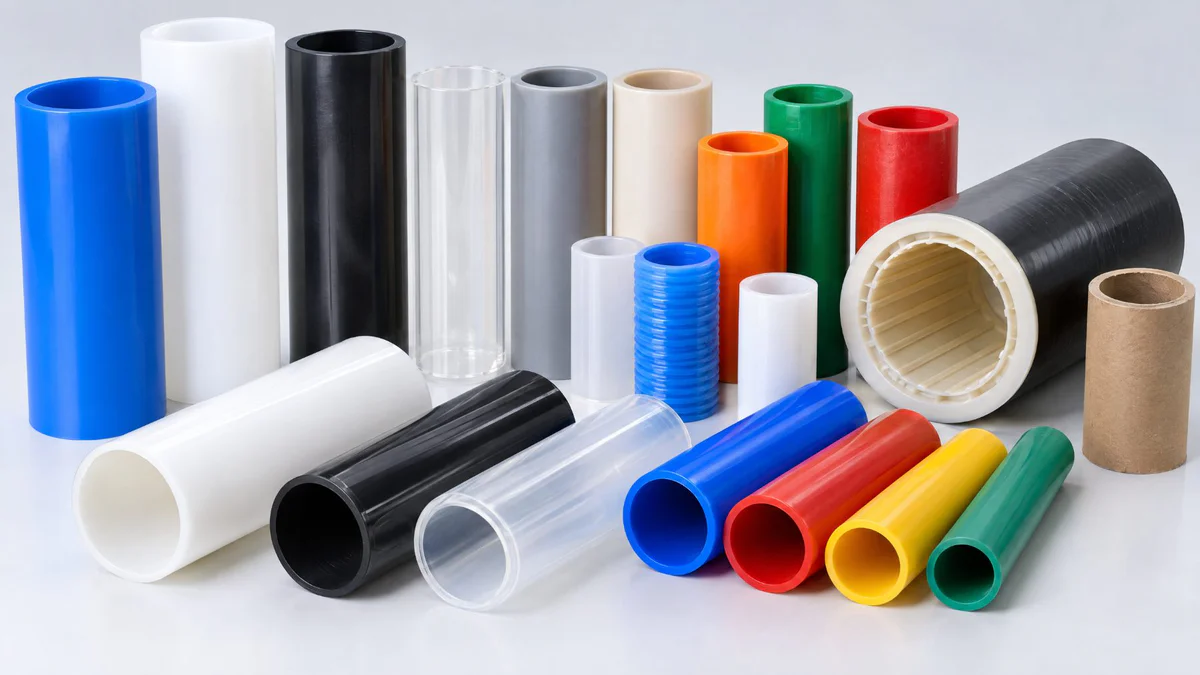

It can produce PE plastic core tubes in different diameters, wall thicknesses, lengths, and specifications for various winding applications.
The final product of this line is a rigid or semi-rigid PE core tube. Depending on the customer’s market, the tube can be customized by:
| Product Parameter | Common Options |
|---|---|
| Material | PE, recycled PE, modified PE formula |
| Inner Diameter | 77 mm, 152 mm, or customized |
| Tube Length | Fixed length according to roll requirement |
| Wall Thickness | Customized based on load and winding pressure |
| Surface | Smooth surface, stable roundness |
| Cutting Type | Chipless fixed-length cutting |
| Application | Film, paper, tape, packaging rolls |
For example, a film manufacturer may need lightweight but dimensionally stable PE cores, while a paper roll producer may require stronger wall thickness to support heavier rolls. QTech-Machinery can configure the extruder, die, cooling system, haul-off, and cutter according to these production targets.
Our line is especially suitable for customers who need:
- Consistent inner diameter
- Stable tube roundness
- Good surface quality
- Clean cutting without chips
- Continuous production
- Flexible production for different tube sizes
3. How does a PE Core Tube Extrusion Line work?
The line melts PE material through an extruder, forms the tube through a die, calibrates and cools it in a vacuum tank, pulls it by servo haul-off, and cuts it to fixed length.
A complete PE core tube production process normally includes the following stages:
| Step | Process | Function |
|---|---|---|
| 1 | Material preparation | Drying, mixing, and feeding PE material |
| 2 | Extrusion | Melting and plasticizing PE by screw and barrel |
| 3 | Die forming | Shaping the molten PE into tube form |
| 4 | Vacuum calibration | Controlling outer diameter and roundness |
| 5 | Cooling | Stabilizing tube dimensions |
| 6 | Haul-off | Pulling tube at constant speed |
| 7 | Cutting | Cutting tube to required length |
| 8 | Finishing | Chamfering or edge treatment if needed |
In QTech-Machinery’s configuration, the SJ75/33 single screw extruder provides stable plasticizing performance. The 7-meter vacuum calibration tank helps control sizing and cooling. The three-caterpillar servo haul-off machine maintains stable traction, and the fixed-length chipless cutter produces clean tube ends without generating plastic chips.
This integrated process helps customers achieve continuous and efficient production.
4. What is the typical configuration of QTech-Machinery’s PE Core Tube Extrusion Line?
A typical QTech-Machinery line includes material preparation equipment, SJ75/33 extruder, mold, vacuum calibration tank, servo haul-off, chipless cutter, and auxiliary finishing equipment.
Based on the product configuration, a typical QTech-Machinery PE Core Tube Extrusion Line includes:
| Equipment | Main Function | Advantage |
|---|---|---|
| Drying Mixer | Material drying and mixing | Improves material consistency |
| SJ75/33 Single Screw Extruder | PE melting and extrusion | Stable output and efficient plasticizing |
| Extrusion Mold | Tube forming | Customized for target tube size |
| 7m Vacuum Calibration Tank | Sizing and cooling | Improves roundness and dimensional accuracy |
| Three-Caterpillar Servo Haul-Off | Stable pulling | Better traction control for tube production |
| Fixed-Length Chipless Cutter | Clean cutting | Reduces chips and post-processing |
| Manual Chamfering Machine | Tube end finishing | Smooth edge treatment |
Key Production Data
| Parameter | Specification |
|---|---|
| Material | PE |
| Tube Inner Diameter | 77 mm and 152 mm |
| Output Capacity | 100–200 kg/h |
| Total Installed Power | About 170 kW |
| Control System | PLC + Touch Screen |
| Main Extruder | SJ75/33 single screw extruder |
| Motor | 75 kW permanent magnet synchronous servo motor |
| Calibration Tank | 7m vacuum calibration tank |
| Haul-Off | Three-caterpillar servo haul-off |
| Cutting | Fixed-length chipless cutting |
The line can be customized according to the customer’s local voltage, raw material, output target, tube size range, and automation requirement.
5. Why is vacuum calibration important for PE core tube production?
Vacuum calibration helps control tube size, roundness, cooling stability, and final product consistency.
For PE core tubes, accurate sizing is very important. If the tube is not round or the diameter is unstable, it may cause winding problems during film, paper, or tape production. Vacuum calibration helps maintain the required tube geometry while the PE material is still cooling and setting.
QTech-Machinery’s 7m vacuum calibration tank is designed to provide sufficient cooling length and stable sizing performance. The tank supports continuous operation and helps the tube maintain a stable shape during production.
Main benefits include:
- Better tube roundness
- More stable outer diameter
- Improved cooling efficiency
- Reduced deformation
- More consistent production quality
For customers producing 77 mm and 152 mm core tubes, stable calibration is especially important because different tube sizes require different cooling and traction settings.
6. How does servo haul-off improve PE core tube quality?
Servo haul-off provides stable pulling force and speed control, helping maintain consistent tube wall thickness and length accuracy.
The haul-off machine controls the pulling speed of the tube after extrusion and cooling. If the pulling speed fluctuates, the tube size, wall thickness, and surface quality may also fluctuate.
QTech-Machinery uses a three-caterpillar servo haul-off system for stable traction. Compared with simple belt or roller pulling systems, three-caterpillar traction provides stronger and more balanced contact with the tube.
Advantages include:
- Stable pulling speed
- Better tube straightness
- Reduced slipping
- More consistent wall thickness
- Suitable for different tube diameters
- Better synchronization with cutting machine
For customers who need continuous production and fixed-length cutting, servo control is a major advantage because it helps the whole line work more accurately.
7. How should customers choose the right PE Core Tube Extrusion Line?
Customers should choose the line based on tube size, output capacity, raw material formula, automation level, factory power supply, and supplier experience.
Buying a PE Core Tube Extrusion Line is not only about choosing an extruder. The complete line must match the customer’s real production needs.
Customer Selection Steps
| Step | What to Confirm | Why It Matters |
|---|---|---|
| 1 | Target tube inner diameter | Determines mold and calibration design |
| 2 | Tube wall thickness | Affects extruder output and cooling |
| 3 | Required output | Determines extruder size and motor power |
| 4 | Raw material type | Affects screw design and processing temperature |
| 5 | Tube length | Determines cutting system requirement |
| 6 | Factory voltage | Ensures electrical compatibility |
| 7 | Automation level | Affects labor cost and operation efficiency |
| 8 | Future product range | Helps reserve upgrade flexibility |
Recommended Information to Send Before Quotation
Customers can send the following data to QTech-Machinery:
- Tube inner diameter
- Tube outer diameter or wall thickness
- Required tube length
- PE material type
- Virgin or recycled material percentage
- Required output in kg/h
- Factory voltage and frequency
- Available workshop space
- Required automation level
- Target market application
With this information, our engineers can recommend the correct screw, die, vacuum tank, haul-off, cutter, and control system.

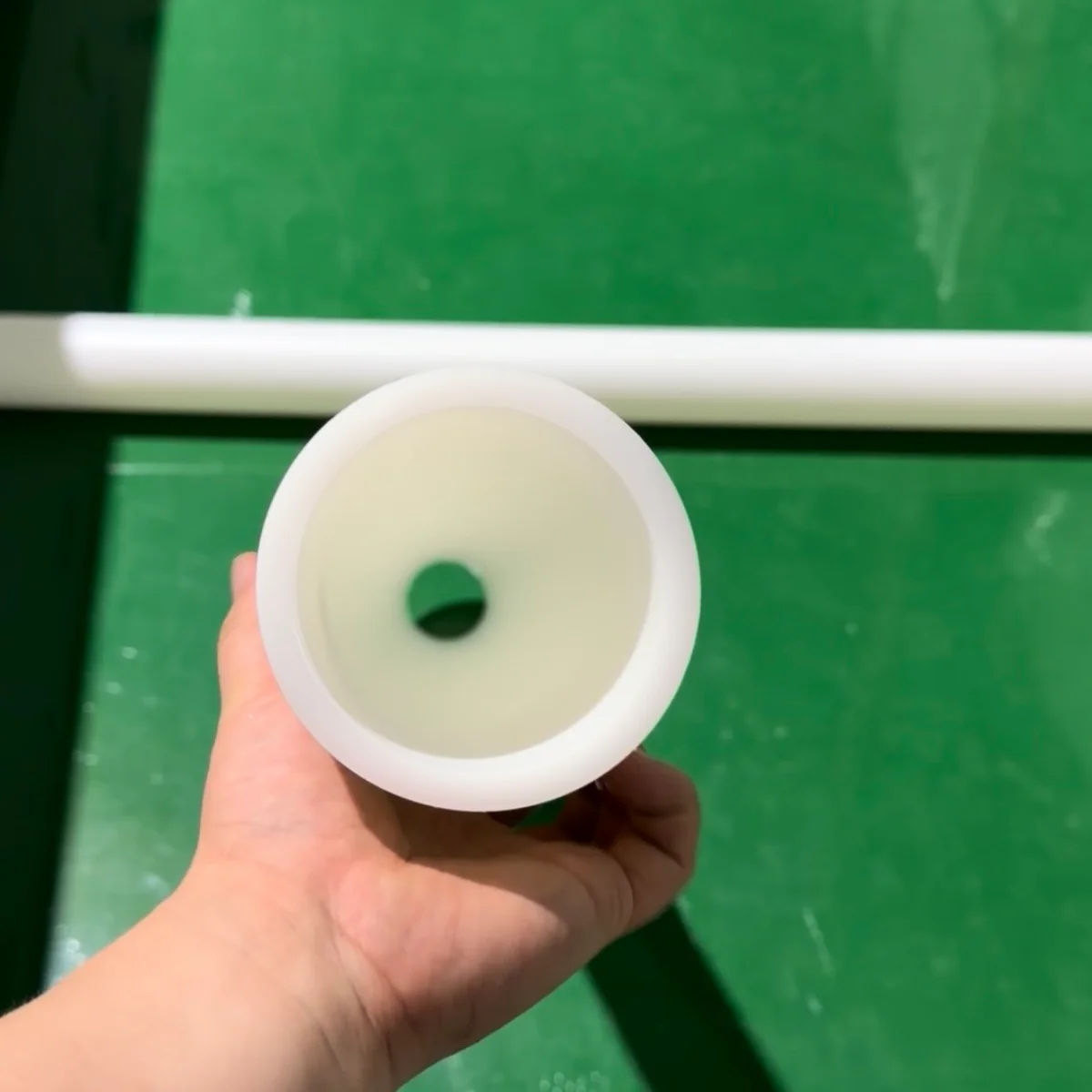

8. Why choose QTech-Machinery for a PE Core Tube Extrusion Line?
QTech-Machinery provides customized extrusion line design, reliable equipment configuration, full run testing, overseas commissioning support, and practical experience in plastic extrusion projects.
QTech-Machinery focuses on plastic extrusion and recycling machinery. For core tube production, we do not only supply individual machines; we provide a complete line solution from material preparation to final cutting and finishing.
Our Advantages
| Advantage | Description |
|---|---|
| Customized Engineering | Line designed according to customer product size, output, and material |
| Stable Extrusion Performance | SJ75/33 extruder with efficient plasticizing and stable output |
| Energy-Efficient Drive | Permanent magnet synchronous servo motor option |
| Accurate Calibration | 7m vacuum tank for better sizing and cooling |
| Servo Haul-Off | Stable traction and better production consistency |
| Chipless Cutting | Cleaner cut surface and less waste |
| PLC Control | Touch screen operation for easier production management |
| Full Run Test | Equipment can be tested before delivery |
| OEM & ODM | Configuration can be adapted to buyer requirements |
| Quote in 24h | Fast response for project evaluation |
Product List We Can Provide
QTech-Machinery can provide complete PE core tube production solutions and related plastic extrusion equipment.
| Product Category | Available Products |
|---|---|
| PE Core Tube Production | PE Core Tube Extrusion Line |
| Main Extrusion Equipment | Single Screw Extruder, Customized Screw & Barrel |
| Downstream Equipment | Vacuum Calibration Tank, Cooling Tank, Haul-Off Machine |
| Cutting Equipment | Fixed-Length Chipless Cutting Machine |
| Auxiliary Equipment | Drying Mixer, Material Loader, Chamfering Machine |
| Control System | PLC + Touch Screen Control Cabinet |
| Custom Parts | Extrusion Mold, Calibration Sleeve, Tube Support Tools |
| Other Extrusion Lines | Plastic Pipe Extrusion Line, PVC Corrugated Pipe Extrusion Line, Profile Extrusion Line |
| Recycling Solutions | Plastic Washing Line, Granulation Line, Pelletizing Line |
Documents We Can Provide
For overseas customers and factory project planning, QTech-Machinery can provide the following documents according to project stage.
| Document | Purpose |
|---|---|
| Technical Proposal | Shows line configuration and process plan |
| Quotation Sheet | Details price, scope, and commercial terms |
| Layout Drawing | Helps customer plan workshop space |
| Power Consumption List | Supports electrical planning |
| Machine Configuration List | Confirms main parts and specifications |
| Operation Manual | Guides daily machine operation |
| Maintenance Manual | Supports long-term equipment care |
| Electrical Diagram | Helps installation and troubleshooting |
| Packing List | Used for shipping and customs checking |
| Test Running Video | Confirms machine performance before shipment |
| Installation Guide | Supports on-site commissioning |
| Spare Parts List | Helps prepare future maintenance stock |
Customer Case Reference: PVC Corrugated Pipe Extrusion Line
QTech-Machinery’s extrusion experience is not limited to PE core tubes. In one customer case, we supplied a PVC Corrugated Pipe Extrusion Line for flexible hose production.
Case link: Flexible Hose Extrusion Line – PVC Corrugated Pipe Extrusion Line
In that project, the customer required:
- High production efficiency
- Stable output consistency
- Better material handling
- Advanced control system
- Scalable configuration for future expansion
QTech-Machinery provided a customized extrusion solution with a precision single screw extruder and downstream forming equipment. The case demonstrates our ability to configure extrusion lines according to the buyer’s material, application, product size, and market needs.
The same project logic applies to PE Core Tube Extrusion Lines: every line should be configured according to the customer’s actual product and factory condition, not by using one fixed standard model.
Recommended Internal Links
You can learn more about QTech-Machinery and related extrusion solutions through the following pages:
- QTech-Machinery Home
- QTech-Machinery Cases
- PVC Corrugated Pipe Extrusion Line Case
- Contact QTech-Machinery
- Plastic Extrusion Line Solutions
Practical Notes from Industry Discussions
In many extrusion-related technical discussions, experienced operators often emphasize that stable extrusion is not only about the extruder itself, but also about the match between screw design, die design, cooling, haul-off, and cutting control.
For PE core tube production, this means the extruder, die, vacuum calibration tank, haul-off, cutter, and control system must work together smoothly.
Useful external references include:
- Eng-Tips Plastics Engineering Forum
- Reddit r/Plastics
- Plastics Technology – Extrusion Knowledge Center
- Society of Plastics Engineers
These references support a practical view: a successful extrusion line depends on the complete system, not only one machine. Commonly discussed extrusion topics include melt temperature stability, screw and barrel condition, die pressure control, cooling efficiency, and haul-off synchronization.
Conclusion
A PE Core Tube Extrusion Line is used to produce plastic core tubes for film, paper, tape, packaging, and industrial roll winding applications. The line must provide stable extrusion, accurate calibration, reliable haul-off, and clean cutting to ensure consistent tube quality.
QTech-Machinery’s PE Core Tube Extrusion Line combines an SJ75/33 single screw extruder, 7m vacuum calibration tank, three-caterpillar servo haul-off, fixed-length chipless cutting, and PLC touch screen control. With customized engineering, full run testing, and overseas project experience, we help customers build efficient and reliable PE core tube production systems.
If you are planning to produce PE core tubes with inner diameters such as 77 mm, 152 mm, or customized sizes, QTech-Machinery can provide a tailored solution based on your material, output, voltage, and market requirements.
