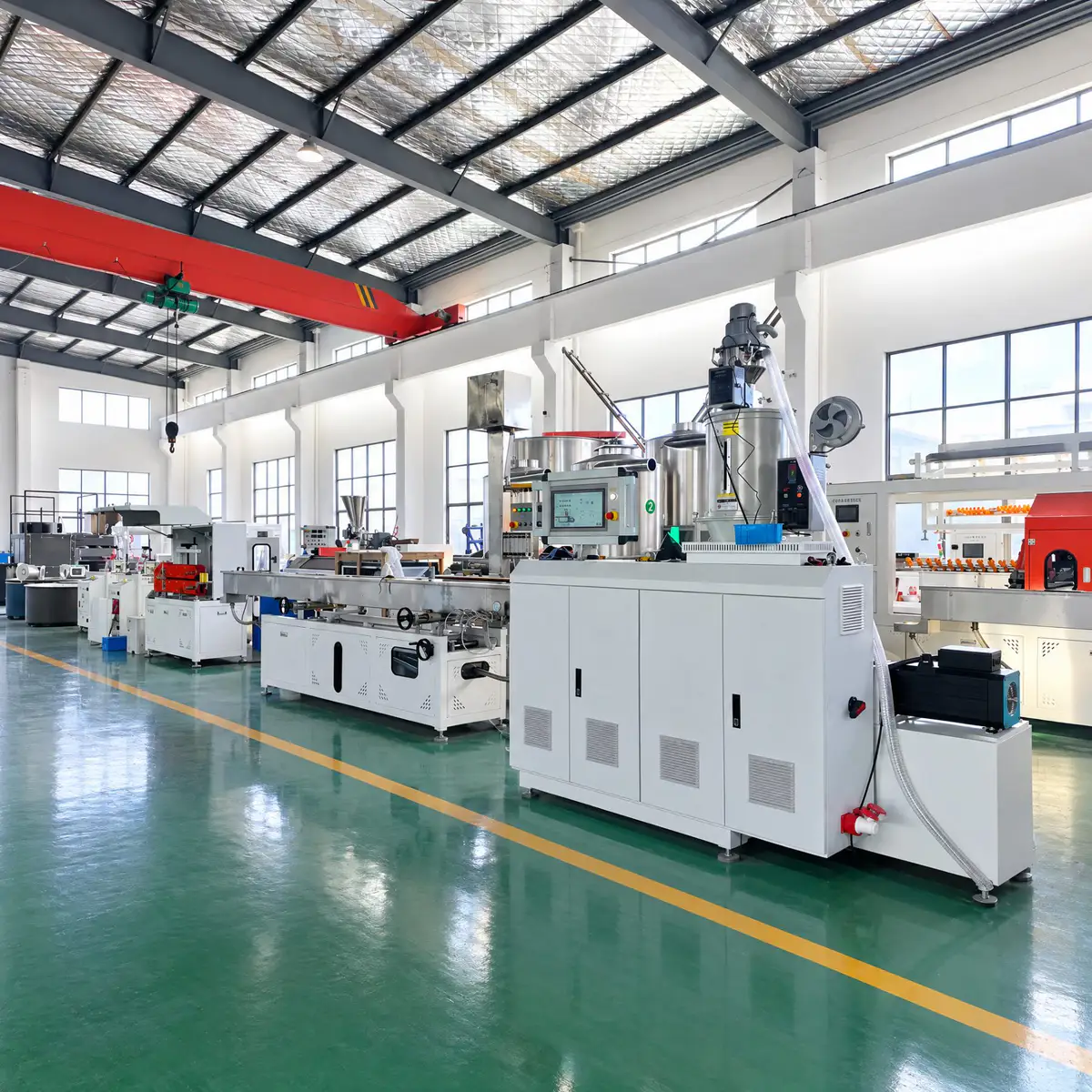

What is a tumbler straw extrusion line?
A tumbler straw extrusion line is a complete plastic tube production system used to manufacture reusable straws for insulated tumblers, water bottles, travel cups, and drinkware products. It normally includes material feeding, extrusion, vacuum calibration, cooling, haul-off, cutting, chamfering, and straw-end opening equipment.
For buyers who need stable production of LLDPE, PCT, PE, PETG, PLA, or other food-grade small-diameter tubes, a well-configured tumbler straw extrusion line can improve product consistency, cutting accuracy, surface quality, and downstream finishing efficiency.
QTech-Machinery supplied a complete THERMOS tumbler straw extrusion line project, designed for reusable straw sizes such as 8 × 6 mm and 9.5 × 7.5 mm, with an output range of approximately 10–40 kg/h.
1. What is a tumbler straw extrusion line?
A tumbler straw extrusion line is a complete production line for making reusable plastic straws through extrusion, cooling, cutting, and finishing.
A tumbler straw extrusion line is designed to continuously melt plastic pellets and form them into small-diameter hollow tubes. These tubes are then cooled, pulled forward, cut to length, and processed into finished reusable tumbler straws.
Unlike disposable straw machines, this type of line is usually built for higher dimensional accuracy, smoother surface quality, better end finishing, and reusable drinkware applications. The final products are commonly used with:
- Insulated tumblers
- Sports bottles
- Travel mugs
- Water cups
- Reusable drinkware sets
- Branded beverage containers
In QTech-Machinery’s THERMOS project, the line was configured for LLDPE and PCT straw production, helping the customer produce compact, smooth, reusable straws for tumbler applications.
Recommended internal link: THERMOS Tumbler Straw Extrusion Line Project
2. What products can a tumbler straw extrusion line produce?
It can produce reusable plastic tumbler straws, small-diameter tubes, drinking straw tubes, and customized hollow plastic profiles.

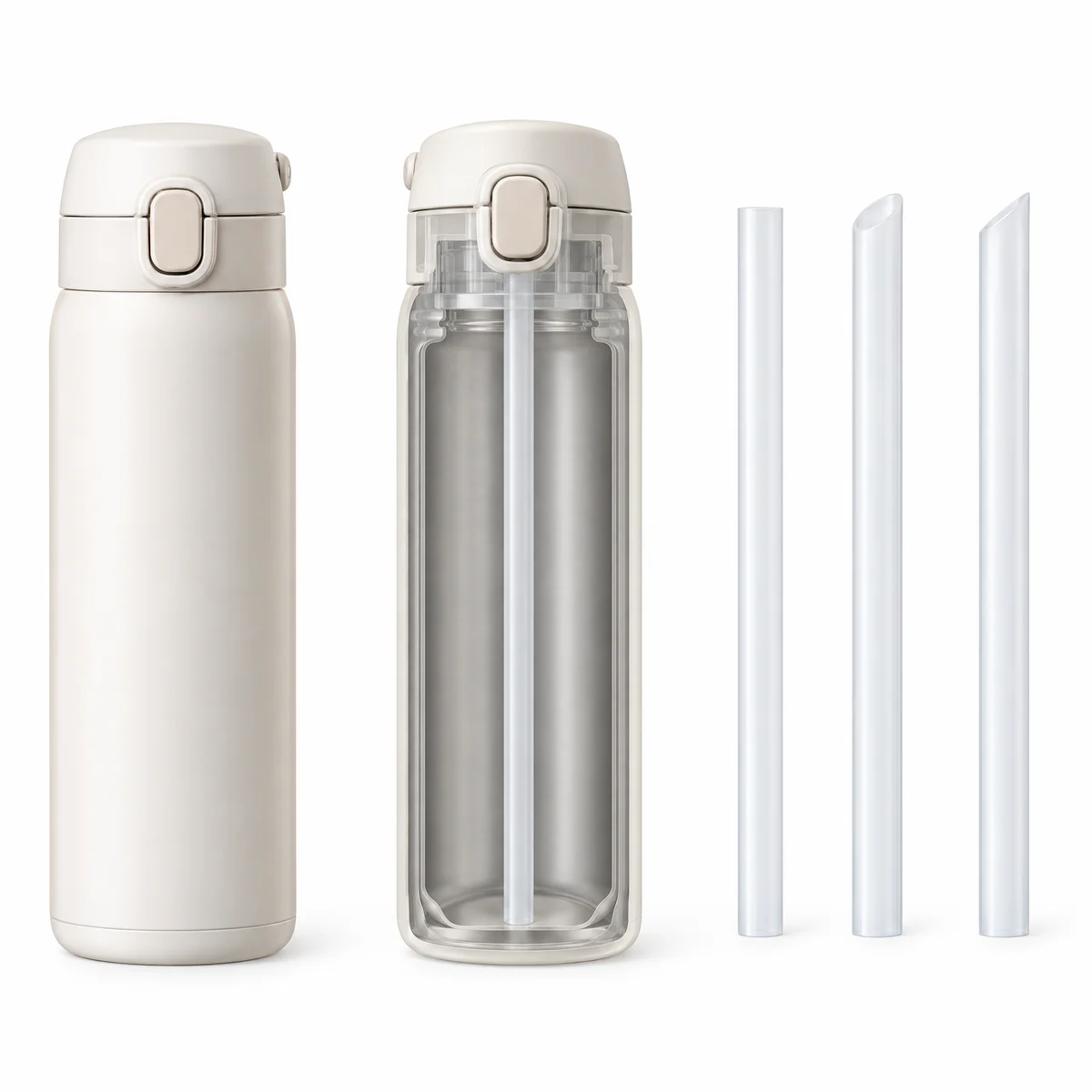

A tumbler straw extrusion line is mainly used for producing small hollow plastic tubes with accurate outer diameter and inner diameter control. Typical products include:
- Straight reusable tumbler straws
- LLDPE flexible straws
- PCT rigid or semi-rigid straws
- Bottle straw tubes
- Drinkware accessory tubes
- Small-diameter plastic tubes for special applications
In the THERMOS case, the customer required:
| Product Type | Material | Straw Size |
|---|---|---|
| Reusable straw | LLDPE | 8 × 6 mm |
| Reusable straw | PCT | 8 × 6 mm |
| Reusable straw | PCT | 9.5 × 7.5 mm |
These sizes show that the line is suitable for precision small tube extrusion, especially where the customer needs stable diameter, clean cutting, and additional end processing.
3. What materials can be used for tumbler straw extrusion?
Common materials include LLDPE, PCT, PE, PETG, PLA, PP, and other food-grade plastic materials depending on the final straw design.
Material selection is one of the most important decisions when choosing a tumbler straw extrusion line. Different materials require different screw design, temperature settings, cooling performance, die structure, and cutting methods.
Common material options include:
| Material | Typical Feature | Common Use |
|---|---|---|
| LLDPE | Flexible, soft, good impact resistance | Flexible reusable tumbler straws |
| PCT | Clear, rigid, good heat resistance | Premium tumbler straw applications |
| PE/HDPE | Durable and economical | General plastic tubes |
| PETG | Transparent and easy to process | Clear drinkware tubes |
| PLA | Bio-based material option | Eco-oriented straw applications |
| PP | Lightweight and chemical resistant | General reusable straw production |
For the THERMOS project, QTech-Machinery configured the line to process LLDPE and PCT, because the customer needed stable production for reusable tumbler straw applications.
A key advantage of QTech-Machinery is that we do not only sell a standard machine. We configure the screw, die, vacuum calibration, cooling tank, haul-off, cutter, and downstream finishing equipment according to the buyer’s material and product size.
4. How does a tumbler straw extrusion line work?
The process includes feeding, melting, extrusion forming, vacuum sizing, cooling, haul-off, cutting, chamfering, and straw-end opening.
A complete tumbler straw extrusion process usually follows these steps:
| Step | Process | Function |
|---|---|---|
| 1 | Material feeding | Sends plastic pellets into the extruder |
| 2 | Plasticizing | Melts and mixes the material inside the barrel |
| 3 | Die extrusion | Forms the melted plastic into a hollow straw tube |
| 4 | Vacuum calibration | Controls straw diameter and roundness |
| 5 | Cooling | Stabilizes the tube shape |
| 6 | Haul-off | Pulls the straw forward at a stable speed |
| 7 | Cutting | Cuts the straw to required length |
| 8 | Chamfering | Smooths the straw end |
| 9 | V-shape opening | Creates a functional opening for tumbler use |
In QTech-Machinery’s supplied configuration, the production flow included:
- QX-300 automatic vacuum loader

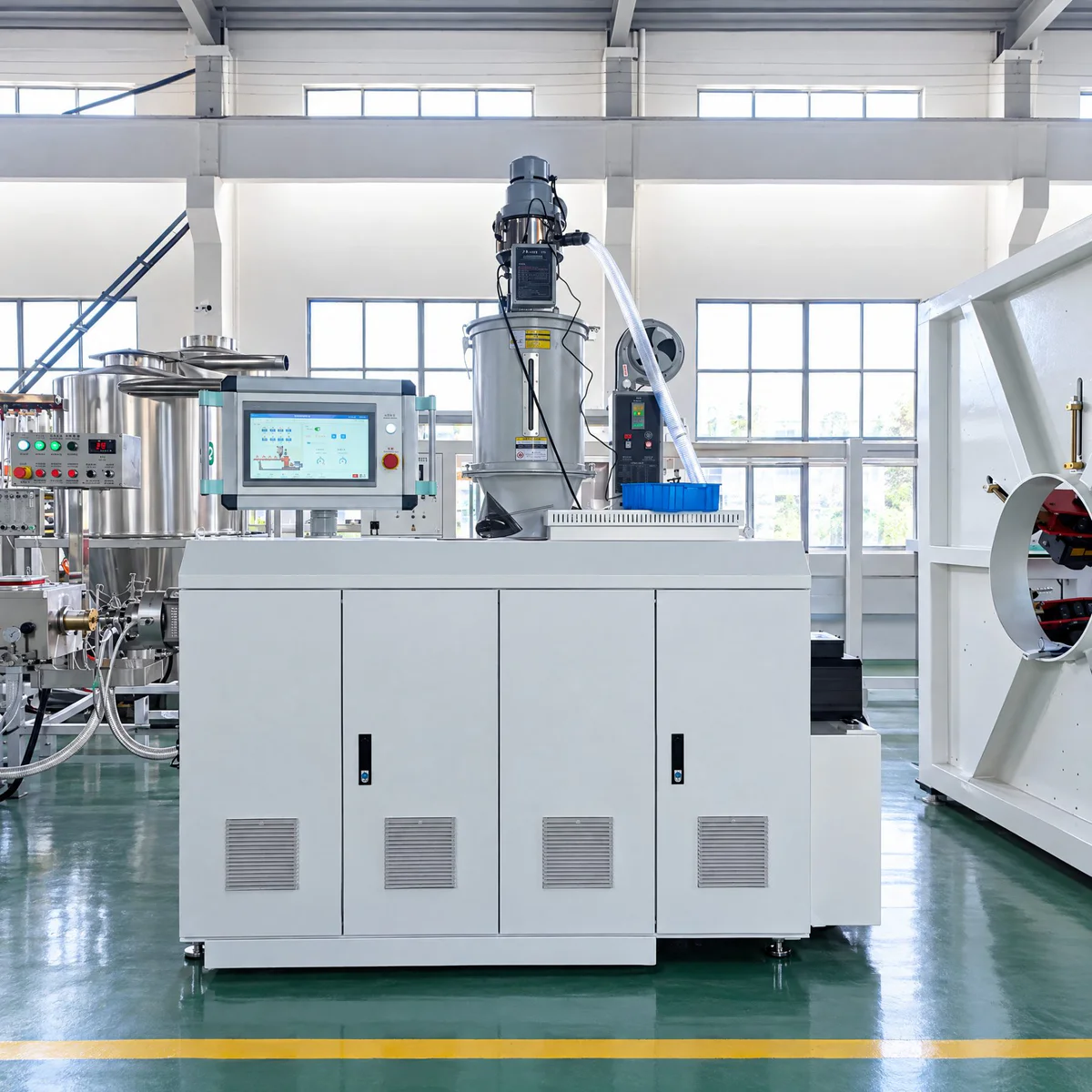

- QX-SJ50/28 precision servo single screw extruder

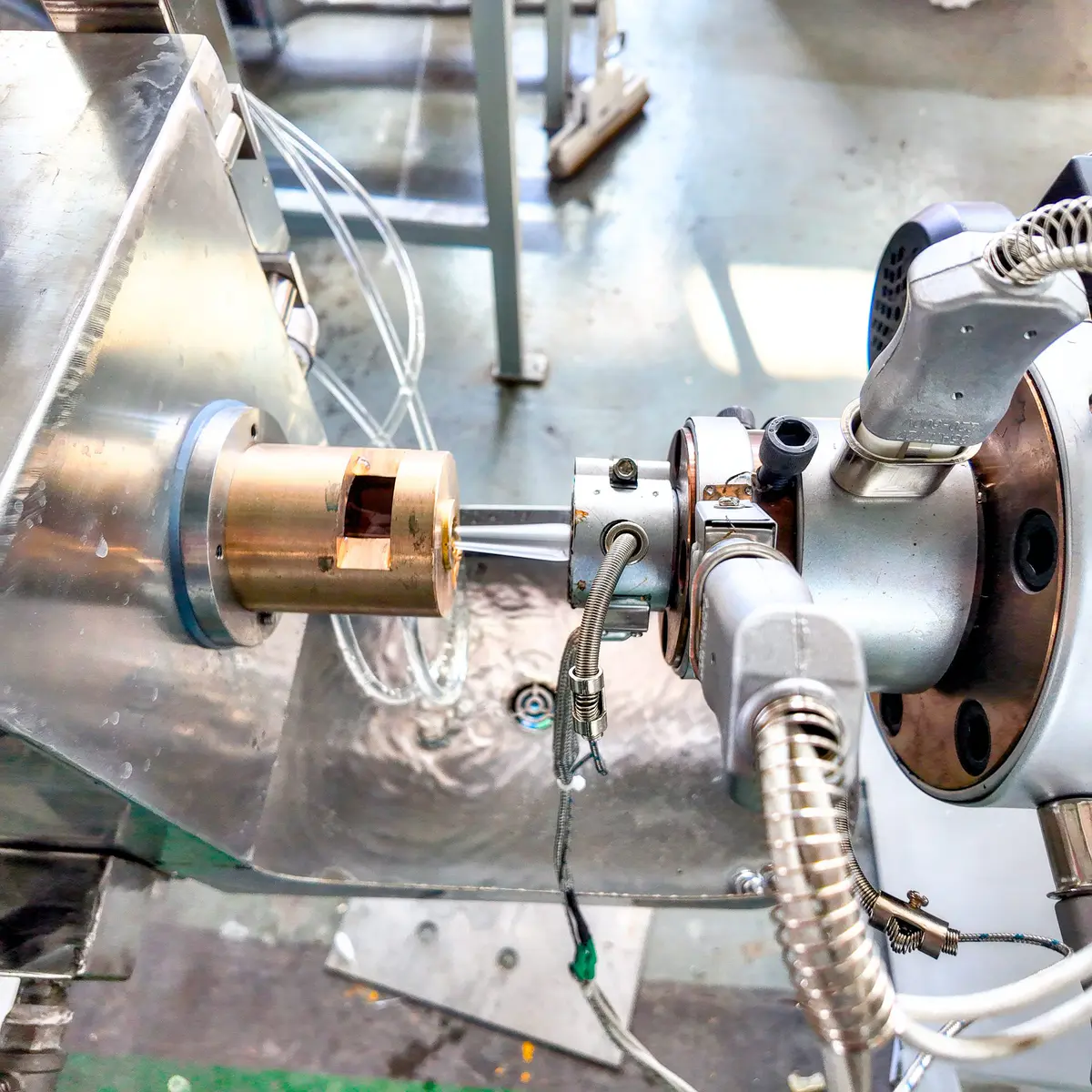

- Straw extrusion die

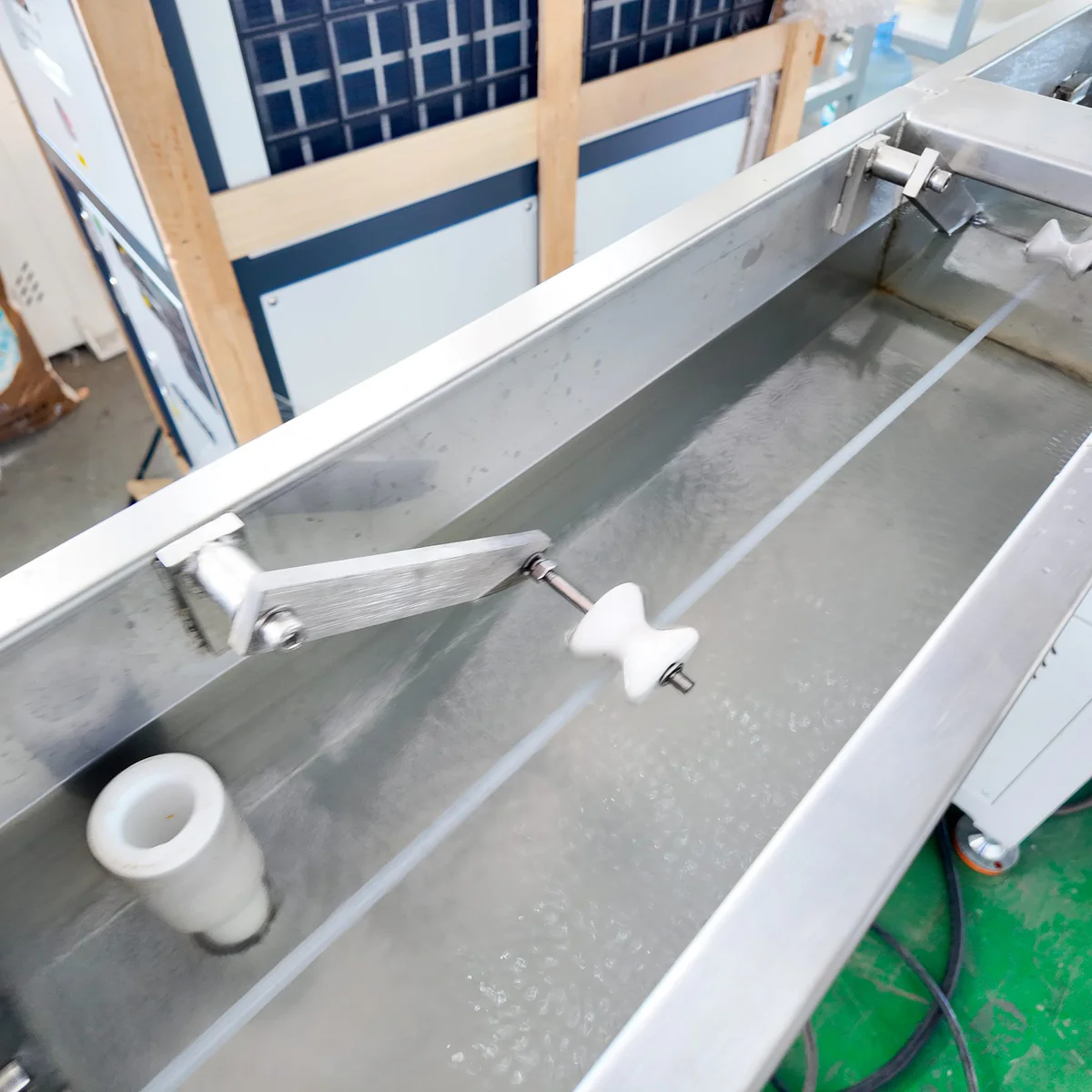

- Vacuum cooling calibration tank

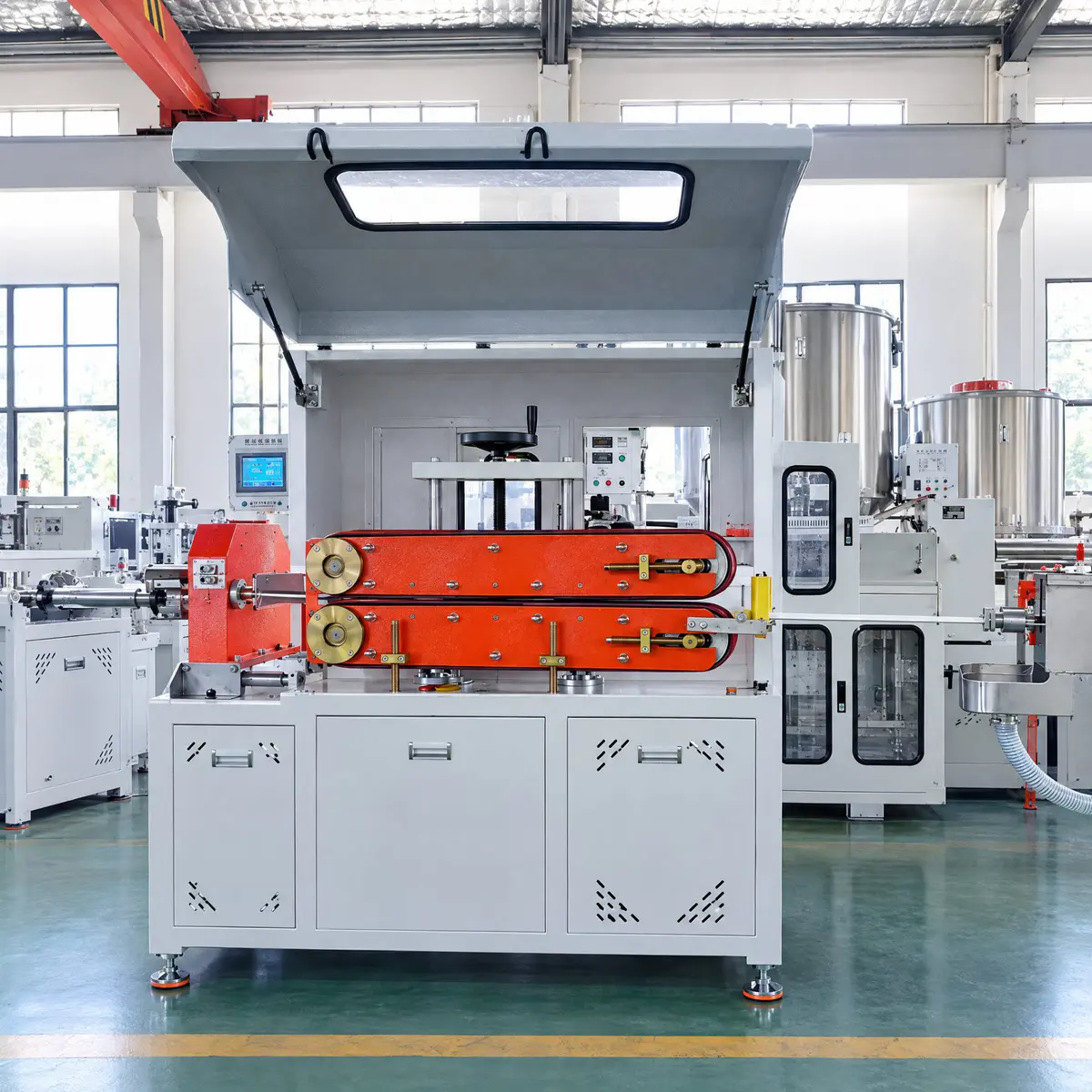

- Servo haul-off cutting machine
- Flying knife cutting system
- Manual chamfering machine
- Manual opening machine
- Industrial chiller
This layout helps the customer achieve continuous production from raw material feeding to finished straw processing.
5. What machine configuration is included in QTech-Machinery’s tumbler straw extrusion line?
QTech-Machinery can provide a complete line including feeding, extrusion, cooling, cutting, chamfering, opening, and auxiliary equipment.
Based on the THERMOS tumbler straw extrusion line project, QTech-Machinery supplied a customized complete line for reusable straw production.
Main machine configuration
| Machine | Model / Description | Key Function |
|---|---|---|
| Automatic vacuum loader | QX-300 | Automatic pellet feeding |
| Precision single screw extruder | QX-SJ50/28 | Melting and stable extrusion |
| Extrusion die | Customized | Forms straw outer and inner diameter |
| Vacuum cooling calibration tank | Customized | Diameter control and cooling |
| Servo haul-off cutting machine | Servo controlled | Stable pulling and length cutting |
| Flying knife cutting system | Integrated | Online cutting without stopping extrusion |
| Chamfering machine | Manual | Smooth straw-end finishing |
| Opening machine | Manual | V-shape straw opening |
| Industrial chiller | Auxiliary system | Provides stable cooling water |
Example technical configuration from THERMOS project
| Item | Specification |
|---|---|
| Output capacity | 10–40 kg/h |
| Screw diameter | 50 mm |
| L/D ratio | 28:1 |
| Screw speed | 0–70 rpm |
| Motor power | 22 kW Inovance permanent magnet synchronous motor |
| Control mode | Touchscreen control |
| Screw material | 38CrMoALA with nitriding and surface treatment |
| Barrel heating zones | 4 zones |
| Loader capacity | 300 kg/h |
| Loader motor power | 0.55 kW |
QTech-Machinery’s advantage is that the complete line can be configured according to:
- Raw material
- Straw size
- Required output
- Cutting length
- Local voltage
- Factory layout
- Automation requirements
- Downstream finishing method
Recommended internal link: QTech Machinery Home
6. How should buyers choose the right tumbler straw extrusion line?
Short answer: Buyers should confirm material, straw dimensions, output capacity, cutting accuracy, finishing method, voltage, and available workshop space before choosing a line.
Choosing a tumbler straw extrusion line is not only about buying an extruder. The full line must match the customer’s finished product requirements and factory conditions.
Customer selection steps
| Step | What to Confirm | Why It Matters |
|---|---|---|
| 1 | Target material | Determines screw design, temperature range, and die design |
| 2 | Straw OD and ID | Determines extrusion die and calibration tooling |
| 3 | Output capacity | Determines extruder size and line speed |
| 4 | Cutting length tolerance | Determines cutter and servo control requirements |
| 5 | End finishing | Determines chamfering and opening equipment |
| 6 | Factory voltage | Ensures electrical compatibility |
| 7 | Cooling conditions | Determines tank and chiller selection |
| 8 | Automation level | Affects labor cost and production efficiency |
Information buyers should provide before quotation
To quote the correct line, QTech-Machinery normally asks for:
- Raw material type
- Straw outer diameter and inner diameter
- Straw length
- Output requirement
- Product drawing or sample
- Required cutting accuracy
- End finishing requirement
- Local voltage and frequency
- Workshop layout if available
- Packaging or downstream automation needs
With these details, our engineers can recommend the correct extruder, die, cooling tank, haul-off cutter, and post-processing machines.
Recommended internal link: QTech Cases
7. What advantages does QTech-Machinery offer for tumbler straw extrusion projects?
QTech-Machinery offers customized line design, OEM/ODM service, voltage configuration, full run testing, and complete project support.
QTech-Machinery focuses on plastic extrusion and recycling machinery, and our tumbler straw extrusion line is designed for customers who need a practical, production-ready solution.
QTech-Machinery advantages
| Advantage | What It Means for Buyers |
|---|---|
| Customized configuration | The line is designed according to material, size, and output |
| OEM and ODM support | Suitable for brand owners, factories, and project contractors |
| Voltage configuration | Machines can be matched to the buyer’s local electrical standard |
| Full run test | The machine can be tested before shipment |
| Complete line supply | From feeding to extrusion, cutting, chamfering, and opening |
| Practical engineering support | Engineers configure screw, die, tank, cutter, and controls together |
| Case experience | Proven project experience with THERMOS tumbler straw production |
| Fast quotation support | Quotation can be prepared after receiving product details |
In the THERMOS project, QTech-Machinery helped the customer solve key production requirements, including:
- Stable small-diameter tube extrusion
- Accurate straw sizing
- Smooth cutting
- Chamfering after cutting
- V-shape straw opening
- Continuous indoor production
- Complete line integration
Recommended internal link: THERMOS Project Case
8. What documents and support can QTech-Machinery provide with the extrusion line?
QTech-Machinery can provide machine configuration, quotation, layout, technical parameters, operation guidance, and supporting documents for production preparation.
For international buyers, documentation is important for purchasing approval, factory planning, installation, operation, and maintenance.
Product list QTech-Machinery can provide
| Product / Equipment | Available from QTech-Machinery |
|---|---|
| Automatic vacuum loader | Yes |
| Single screw extruder | Yes |
| Straw extrusion die | Yes |
| Vacuum calibration cooling tank | Yes |
| Servo haul-off cutter | Yes |
| Flying knife cutting system | Yes |
| Chamfering machine | Yes |
| Straw opening machine | Yes |
| Industrial chiller | Yes |
| Electrical control cabinet | Yes |
| Spare parts package | Optional |
| Customized tooling | Optional |
Document list QTech-Machinery can provide
| Document | Purpose |
|---|---|
| Technical proposal | Confirms machine configuration and line design |
| Formal quotation | Supports purchasing decision |
| Machine layout drawing | Helps factory space planning |
| Electrical configuration list | Confirms voltage and control system |
| Main component list | Shows key brands and specifications |
| Operation manual | Supports daily operation |
| Maintenance guide | Helps reduce downtime |
| Packing list | Used for shipment checking |
| Test video or run-test report | Confirms machine running condition before shipment |
| Product sample photos or videos | Supports production confirmation |
These documents help customers reduce communication risk and make the purchasing process clearer.
Recommended internal link: Contact QTech Machinery
Customer case: THERMOS tumbler straw extrusion line project
QTech-Machinery supplied a complete tumbler straw extrusion line for THERMOS, a globally recognized insulated drinkware brand.
The project was designed for producing small-diameter reusable plastic straws for insulated tumblers, water bottles, and drinking cups. The customer required production of:
- LLDPE straw: 8 × 6 mm
- PCT straw: 8 × 6 mm
- PCT straw: 9.5 × 7.5 mm
- Output capacity: 10–40 kg/h
- Stable extrusion
- Accurate cutting length
- Smooth chamfering
- V-shape opening
- Continuous indoor operation
QTech-Machinery supplied a complete customized solution including material feeding, precision extrusion, vacuum cooling, haul-off cutting, chamfering, opening, and chilling system.
Read the full case here: THERMOS Tumbler Straw Extrusion Line Project
Practical buyer checklist
Before requesting a quotation, buyers can prepare the following information:
- What material will you use: LLDPE, PCT, PP, PE, PETG, PLA, or others?
- What are the straw outer diameter and inner diameter?
- What is the required straw length?
- Do you need chamfering?
- Do you need V-shape opening?
- What output capacity do you expect?
- What is your local voltage and frequency?
- Do you already have product samples or drawings?
- Do you need full automation or semi-automatic operation?
- Do you need run testing before shipment?
Providing this information allows QTech-Machinery to design a more accurate and cost-effective line.
External references and forum notes
When buyers research reusable straws, common online discussions often focus on material choice, environmental impact, product usability, and straw durability.
For example, engineering and consumer discussions compare reusable straw materials such as plastic, metal, and other alternatives, often asking whether reusable options are truly better depending on production, lifetime use, and cleaning behavior. These discussions show that customers care not only about the machine, but also about the final product’s durability and user experience. [3]
Consumer forum discussions also mention practical issues such as straw tip design, lid insertion, and whether the straw end is easy to use with cup lids. This supports the importance of downstream processing such as chamfering and V-shape opening in tumbler straw production. [0]
General video content about plastic straw manufacturing shows that straw production normally requires multiple machines, including extrusion, cooling, cutting, and downstream handling equipment. This matches the complete-line approach used in professional tumbler straw extrusion projects. [1]
Although some discussions criticize poor packaging or inefficient material use in reusable straw products, these comments also highlight the need for manufacturers to design practical, durable, and well-finished reusable straws instead of focusing only on the straw material itself. [2]
Reference links
- Reddit AskEngineers discussion on reusable straw material comparison: https://www.reddit.com/r/AskEngineers/comments/d3i7d1/are_metal_straws_really_better/
- Consumer discussion about straw usability and lid insertion: https://www.facebook.com/groups/dullmensclub/posts/1501414837181719/
- Plastic straw making process video reference: https://www.youtube.com/watch?v=Iwr07oSzWTg
- Reddit discussion on reusable straw packaging design: https://www.reddit.com/r/CrappyDesign/comments/bp5bih/a_metal_straw_used_to_save_plastic_is_wrapped_in/
Conclusion
A tumbler straw extrusion line is a complete manufacturing system for producing reusable plastic straws with accurate size, stable quality, smooth cutting, and functional end finishing.
For buyers producing LLDPE or PCT tumbler straws, QTech-Machinery can provide a customized complete line based on product size, material, output capacity, local voltage, and downstream finishing requirements.
With proven experience from the THERMOS tumbler straw extrusion line project, QTech-Machinery can support customers from technical consultation and line configuration to run testing, documentation, and delivery.
