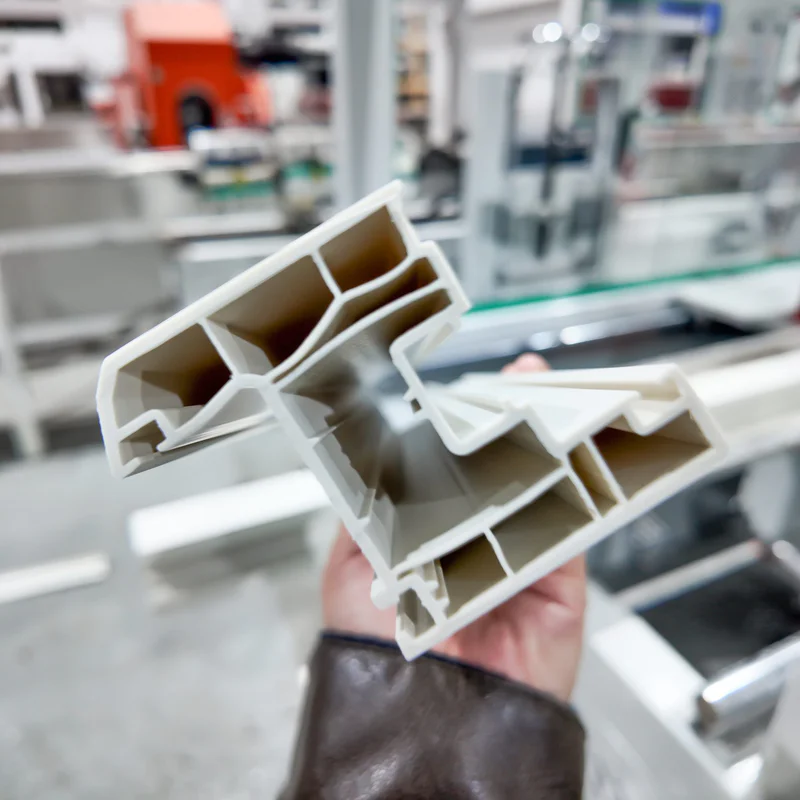

Explore our PVC Window Profile Extrusion Line, engineered for precision and efficiency in creating durable and high-quality window profiles.
Explore our PVC Window Profile Extrusion Line, engineered for precision and efficiency in creating durable and high-quality window profiles.
Process Stages Shown
Materials Covered
Configuration points shown or mentioned in the footage. Scroll sideways on mobile to see the full table.
| Parameter | Value | Notes |
|---|---|---|
| Screw Loader | Capacity: 150 kg | Conveying Capacity: 800 kg/h |
| SRL300-600 High-Speed Mixer | Mixing Type: Hot and cold mixing | Volume: Hot mixer: 300 L, Cold mixer: 600 L |
| Push-Type Screw Loader | Capacity: 250 kg | Conveying Capacity: 1000 kg/h |
| SJSZ65/132 Conical Twin-Screw Extruder | Production Capacity: 150-250 kg/h | Screw Diameter: Φ65/132 mm |
| Vacuum Cooling Calibration Table | Length: 6 meters | Cooling System: Water-cooled with advanced heat isolation |
| Two-Claw Belt Haul-Off | Motor Power: 1.5 kW × 2 units | Speed: 0.1-5 m/min |
| Saw Blade Lift Cutter | Motor Power: 2.2 kW | Cutting Width: 0-130 mm |
| 4.5-Meter Discharge Rack | Material: 201 stainless steel | Flip Mode: Pneumatic flipping |
Welcome to QTech-Machinery! In this video, we present our PVC window profile extrusion line, a state-of-the-art solution designed to streamline your manufacturing process.
Production Testing: Watch as the extrusion line achieves stable output rates of 100–250 kg/h using high-quality PVC raw materials.
Advanced Calibration: The vacuum cooling calibration table ensures precise dimensions and uniform cooling for flawless PVC profiles.
Efficient Operation: See the PLC-controlled systems in action, including the saw blade lift cutter and belt haul-off machines, delivering precision and automation.
Energy Optimization: The line is equipped with energy-efficient motors, advanced temperature controls, and durable materials to minimize operational costs.
Seamless Integration: Learn how the extrusion line components are interconnected for smooth workflow and easy installation.
High-quality components from leading brands like Siemens, Schneider Electric, and Wannan Motors.
Customizable machine configurations to meet specific requirements, including adjustable center height and color options.
Lifetime technical support and one-year warranty for added peace of mind.
Whether you’re producing PVC profiles for windows, doors, or other applications, this extrusion line is engineered to deliver consistent results with minimal downtime.
The machine in this video is one configuration. Send your target output, raw material, product size range, and local voltage, and our engineers quote the correct screw, die, downstream, and control setup for your market.
If your question is not covered here, send it over. Maggie replies with drawings, test footage, or a spare parts list within 24 hours.
The PVC window profile extrusion line can achieve a stable production capacity of 100–250 kg/h, making it suitable for various manufacturing scales and ensuring efficient PVC profile production.
The line features a vacuum cooling calibration table that ensures precise dimensions and uniform cooling, resulting in high-quality PVC window profiles with smooth surfaces and structural integrity.
The extrusion line is equipped with energy-efficient motors, advanced temperature controls, and durable materials, all designed to minimize power consumption while maintaining peak performance.
Model ranges, output in kg/h, and configuration options on the product pages.
Full specifications, model comparison, and voltage options on the product page.
View Product PageFull specifications, model comparison, and voltage options on the product page.
View Product PageShare your output target in kg/h, product size range in mm, raw material, and destination country. We map every parameter shown here to your project and reply with drawings and a quotation within 24 hours.
