This video helps customers understand how the PVC decorative profile extrusion line works in real production. It shows the process from PVC extrusion and mould forming to vacuum calibration, belt hauling and final cutting, making it...
This video helps customers understand how the PVC decorative profile extrusion line works in real production. It shows the process from PVC extrusion and mould forming to vacuum calibration, belt hauling and final cutting, making it easier to evaluate the machine configuration, production flow and finished profile quality before purchase.
Process Stages Shown
Materials Covered
Configuration points shown or mentioned in the footage.
| Parameter | Value |
|---|---|
| Main Extruder | SJSZ65/132 Conical Twin Screw Extruder Suitable for PVC decorative profile extrusion |
| Product Type | PVC Decorative Profile / PVC Moulding Trim Used for interior decoration, trim strips and small profiles |
| Mould | PVC Decorative Profile Mould Customized according to customer drawing or sample |
| Calibration System | Vacuum Calibration Table Helps cool and shape the profile accurately |
| Haul-off Unit | Belt Haul-off Machine Provides stable pulling for continuous production |
| Cutting Unit | Lifting Knife Cutting Machine Cuts finished profiles to required length |
| Production Process | Extrusion, Moulding, Calibration, Hauling, Cutting Complete PVC decorative profile production flow |
| Machine Supplier | QTech-Machinery Complete extrusion line solution for overseas customers |
This video shows a complete PVC Decorative Profile Extrusion Line supplied by QTech-Machinery for an overseas customer. The line is designed for producing PVC interior decorative moulding profiles, trim strips, small decorative profiles and other PVC building decoration materials.
Through this video, customers can see the full production process, including PVC extrusion, profile moulding, vacuum calibration, belt hauling and automatic cutting.
The overseas customer needed a reliable production line for manufacturing PVC decorative profiles used in interior decoration, wall trim, door and window decoration and small moulding profile applications.
The main purpose of this line is to produce PVC decorative profiles with stable dimensions, smooth surface quality and consistent profile shape during continuous production.

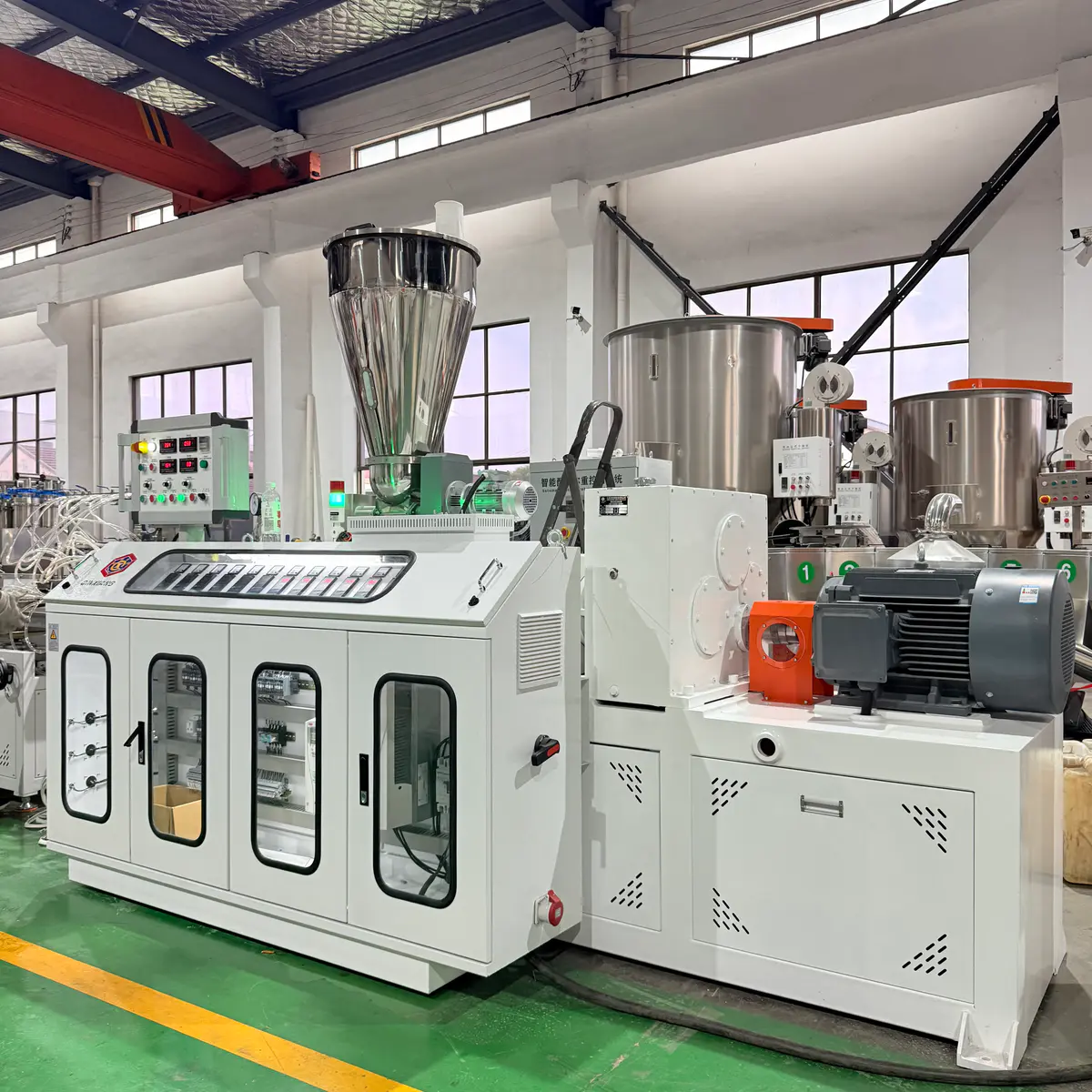

The PVC material is plasticized and extruded by the SJSZ65/132 conical twin screw extruder. This extruder is suitable for PVC processing and provides stable output for decorative profile production.

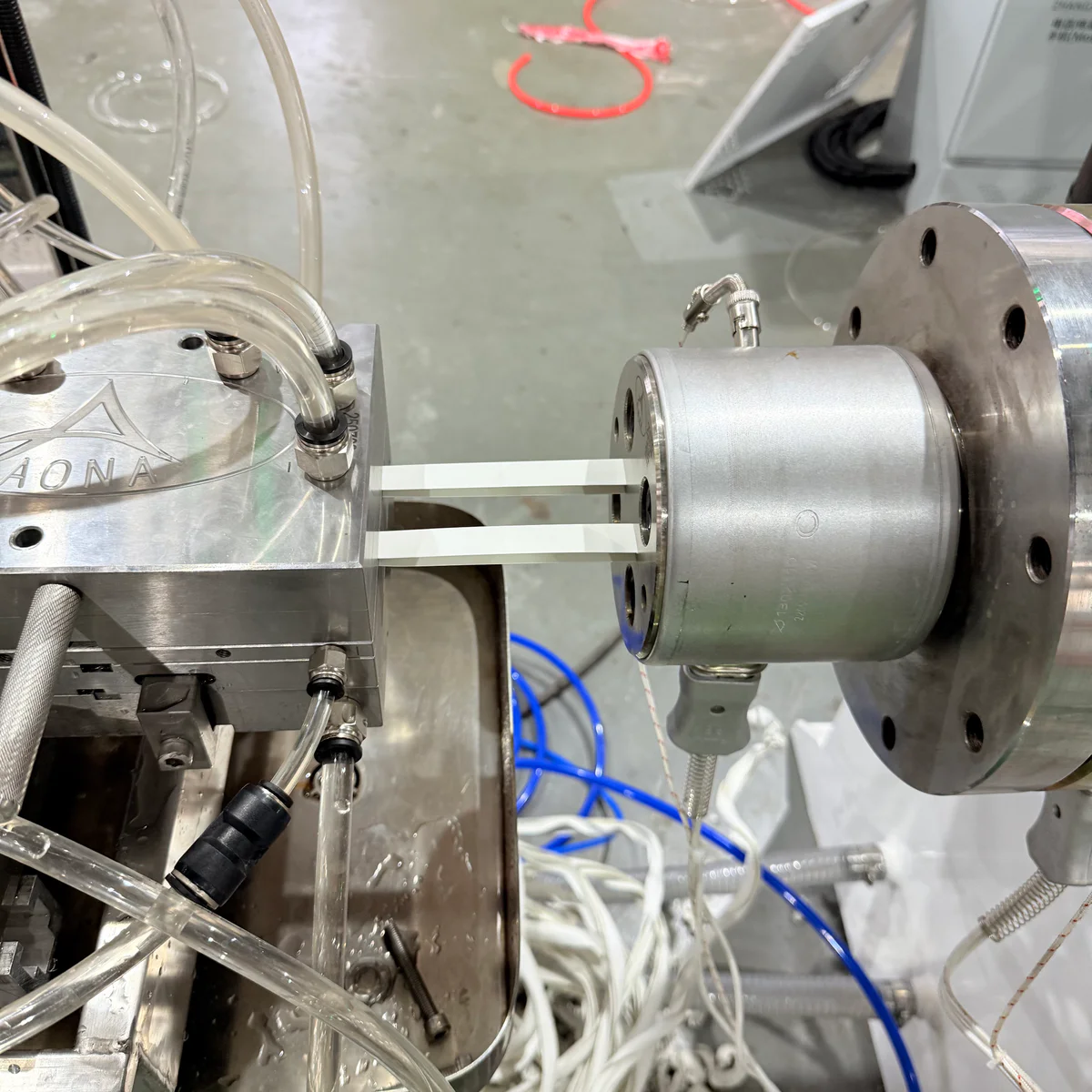

The PVC melt enters the customized decorative profile mould, where the product shape is formed according to the customer’s profile drawing or sample.

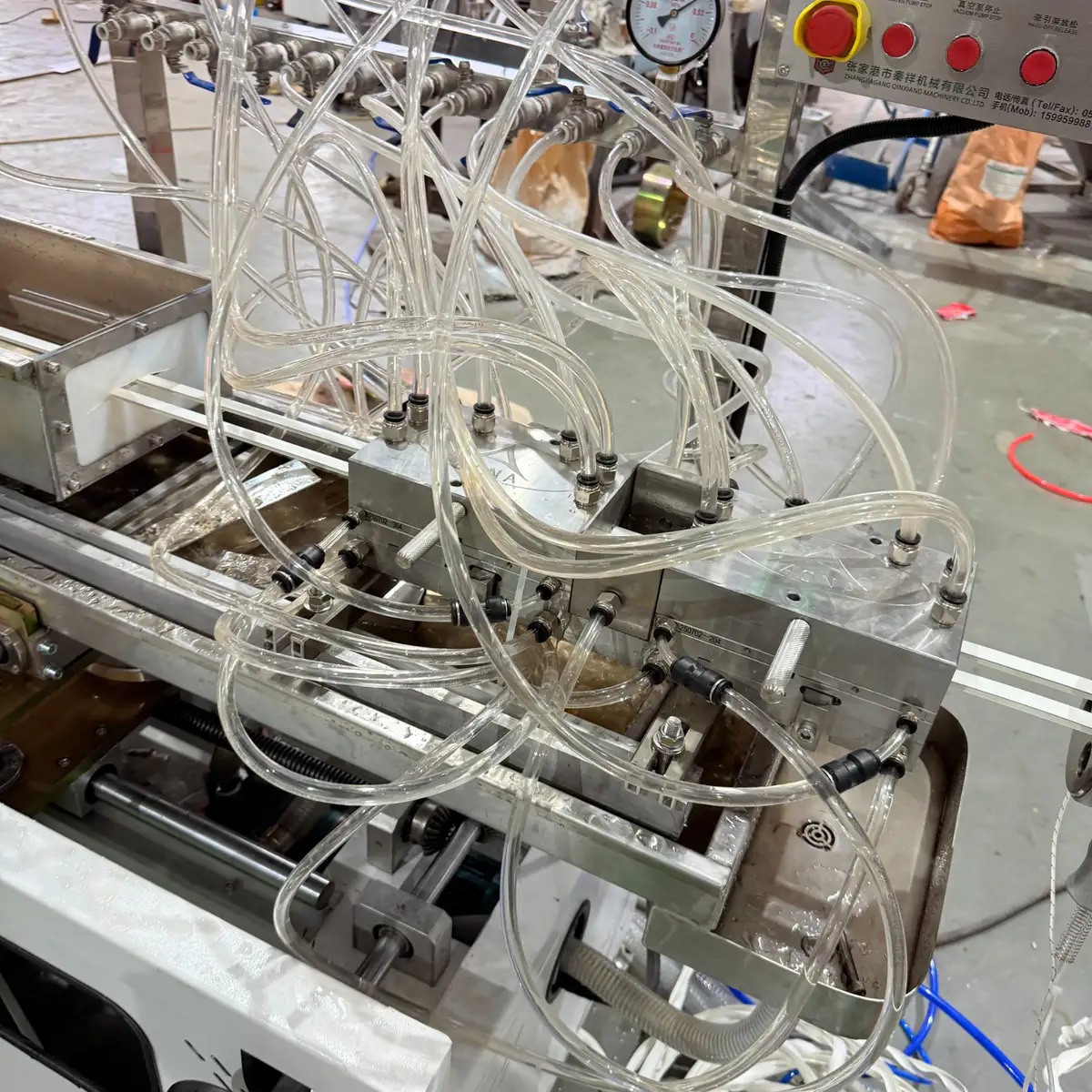

After leaving the mould, the profile passes through the vacuum calibration table. This section helps cool the profile and keep accurate dimensions and shape.

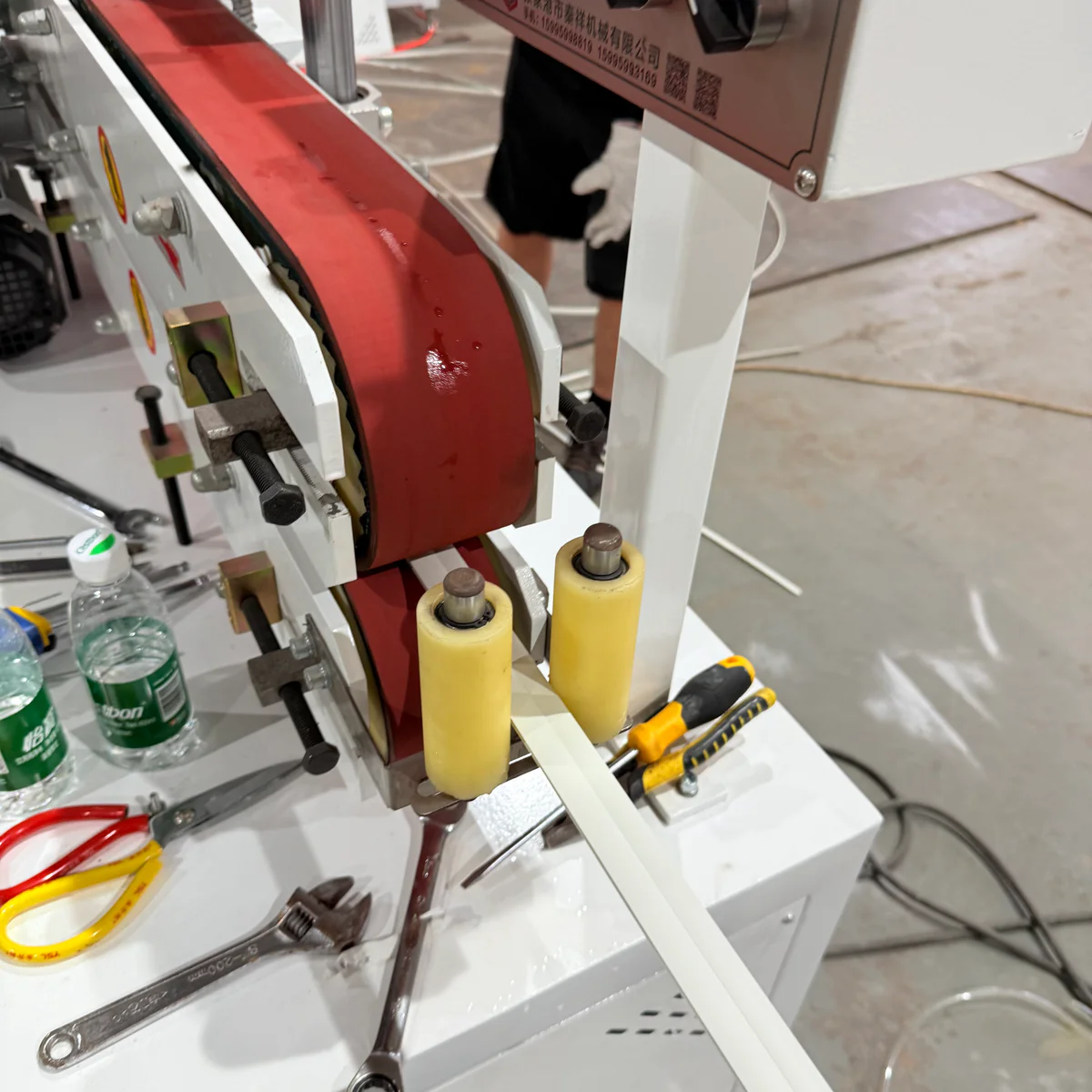

The belt haul-off machine pulls the PVC decorative profile continuously and steadily, helping maintain stable production speed and product quality.
The lifting knife cutting machine cuts the finished PVC profiles to the required length for collection, packing and further use.
| Equipment | Function | Advantage |
|---|---|---|
| SJSZ65/132 Conical Twin Screw Extruder | Plasticizes and extrudes PVC material | Stable extrusion and suitable for PVC profile production |
| PVC Decorative Profile Mould | Forms the required profile shape | Customized according to customer drawing or sample |
| Vacuum Calibration Table | Cools and calibrates the profile | Helps ensure accurate dimensions and stable shape |
| Belt Haul-off Machine | Pulls the profile continuously | Smooth traction and stable production speed |
| Lifting Knife Cutting Machine | Cuts profiles to required length | Clean cutting and easy operation |
The video shows the actual running condition of the PVC decorative profile extrusion line before or during customer project operation.

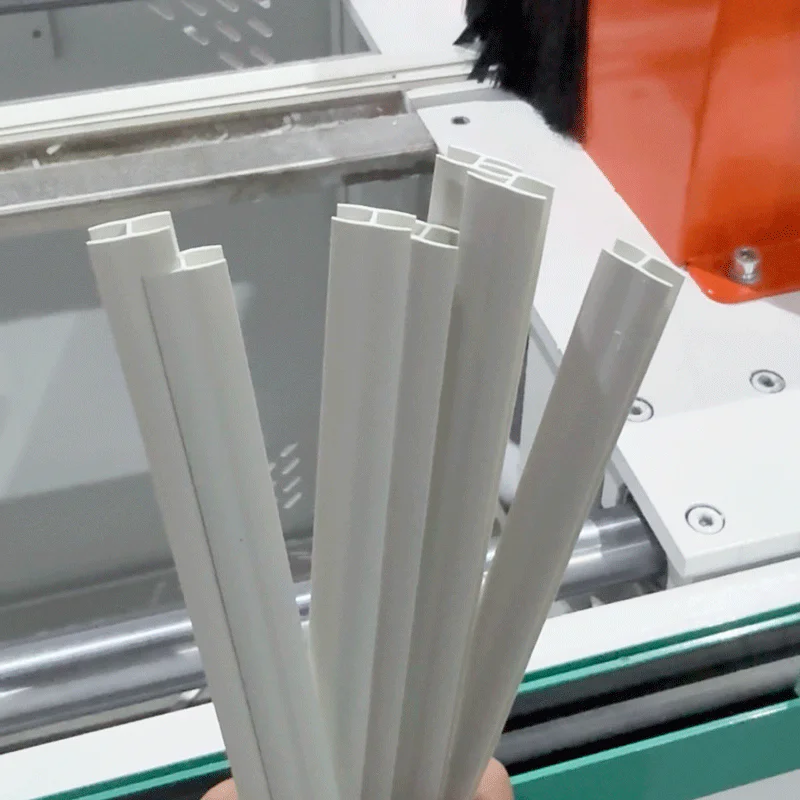

Customers can observe the finished PVC decorative profiles, including their surface finish, profile shape and production stability.
The video helps customers understand how the production line works from extrusion to final cutting.
This PVC decorative profile extrusion line can be used to produce different types of small PVC profiles and decorative trim products.
| Product Type | Application |
|---|---|
| PVC decorative moulding profiles | Interior decoration and wall trim |
| PVC trim strips | Door, window and furniture decoration |
| PVC corner profiles | Wall corner protection and decoration |
| PVC small profiles | Building decoration and panel accessories |
| PVC custom profiles | Produced according to customer sample or drawing |
QTech-Machinery can design the PVC decorative profile extrusion line according to the customer’s profile drawing, material formula, output requirement and workshop layout.
The line uses a conical twin screw extruder, customized mould, vacuum calibration system, belt haul-off and lifting knife cutter to support stable and continuous production.
QTech-Machinery can provide technical support, machine testing, packing arrangement and project guidance for overseas PVC profile extrusion projects.
This video provides a clear view of the PVC Decorative Profile Extrusion Line supplied by QTech-Machinery for an overseas customer. The line includes an SJSZ65/132 conical twin screw extruder, PVC decorative profile mould, vacuum calibration table, belt haul-off machine and lifting knife cutting machine.
It is a practical solution for customers who want to produce PVC decorative profiles, moulding trim, small profiles and interior decoration strips with stable extrusion performance, accurate profile shape and smooth surface quality.
The machine in this video is one configuration. Send your target output, raw material, product size range, and local voltage, and our engineers quote the correct screw, die, downstream, and control setup for your market.
If your question is not covered here, send it over. Maggie replies with drawings, test footage, or a spare parts list within 24 hours.
This line is used to produce PVC decorative profiles, moulding trim, decorative strips, corner profiles and small PVC profiles for interior decoration applications.
The line includes an SJSZ65/132 conical twin screw extruder, PVC decorative profile mould, vacuum calibration table, belt haul-off machine and lifting knife cutting machine.
A conical twin screw extruder is suitable for PVC material processing. It provides stable plasticizing and extrusion performance for PVC decorative profile production.
The vacuum calibration table cools and shapes the PVC profile after it leaves the mould. It helps keep the profile size, shape and dimensional stability.
Yes. The mould can be customized according to the customer’s profile drawing, product sample or specific application requirement.
The belt haul-off machine pulls the PVC profile continuously and steadily, helping maintain stable production speed and consistent profile quality.
The finished profiles are cut by a lifting knife cutting machine according to the required length.
This video is useful for customers who want to understand the machine configuration, production process and finished product quality of a PVC decorative profile extrusion line before purchasing.
