This video gives a clear look at the PETG small tube extrusion line, including extrusion, vacuum sizing, haul-off, and chipless cutting. It helps customers understand the machine layout, key configurations, and how each section supports stable...
This video gives a clear look at the PETG small tube extrusion line, including extrusion, vacuum sizing, haul-off, and chipless cutting. It helps customers understand the machine layout, key configurations, and how each section supports stable tube production.
Process Stages Shown
Materials Covered
Configuration points shown or mentioned in the footage.
| Parameter | Value |
|---|---|
| Extruder Model | SJ50/28 Single Screw Extruder Designed for PETG small tube extrusion |
| Max Output | Up to 50 kg/h Output may vary depending on material and tube size |
| Screw Type | PETG special screw Optimized for stable plasticizing and uniform melt |
| Screw L/D Ratio | 28:1 Suitable for PETG processing |
| Main Motor Power | 15 kW Stable drive for continuous extrusion |
| Speed Control | Yaskawa inverter Supports precise extrusion speed adjustment |
| Heating Zones | 4 zones Barrel heating control |
| Temperature Range | 100℃–360℃ Adjustable according to PETG processing requirements |
| Tube Sizes | 14.5 mm / 17.5 mm OD Two tube specifications supported |
| Wall Thickness | 0.75 mm / 0.9 mm Corresponding to different tube sizes |
| Vacuum Tank Length | 4.5 m Stainless steel vacuum calibration and cooling tank |
| Vacuum Pump Power | 2.2 kW For tube sizing and calibration |
| Vacuum Control Range | 0 to -50 KPa Supports stable tube forming |
| Haul-off Belt Width | 80 mm Red V-belt for stable traction |
| Haul-off Speed | 0–10 m/min Adjustable according to production speed |
| Cutting Range | 10–50 mm Suitable for small tube cutting |
| Cutting Method | Rotary chipless cutting Clean cutting without chips |
| Control System | Siemens PLC + HMI Used on cutting machine |

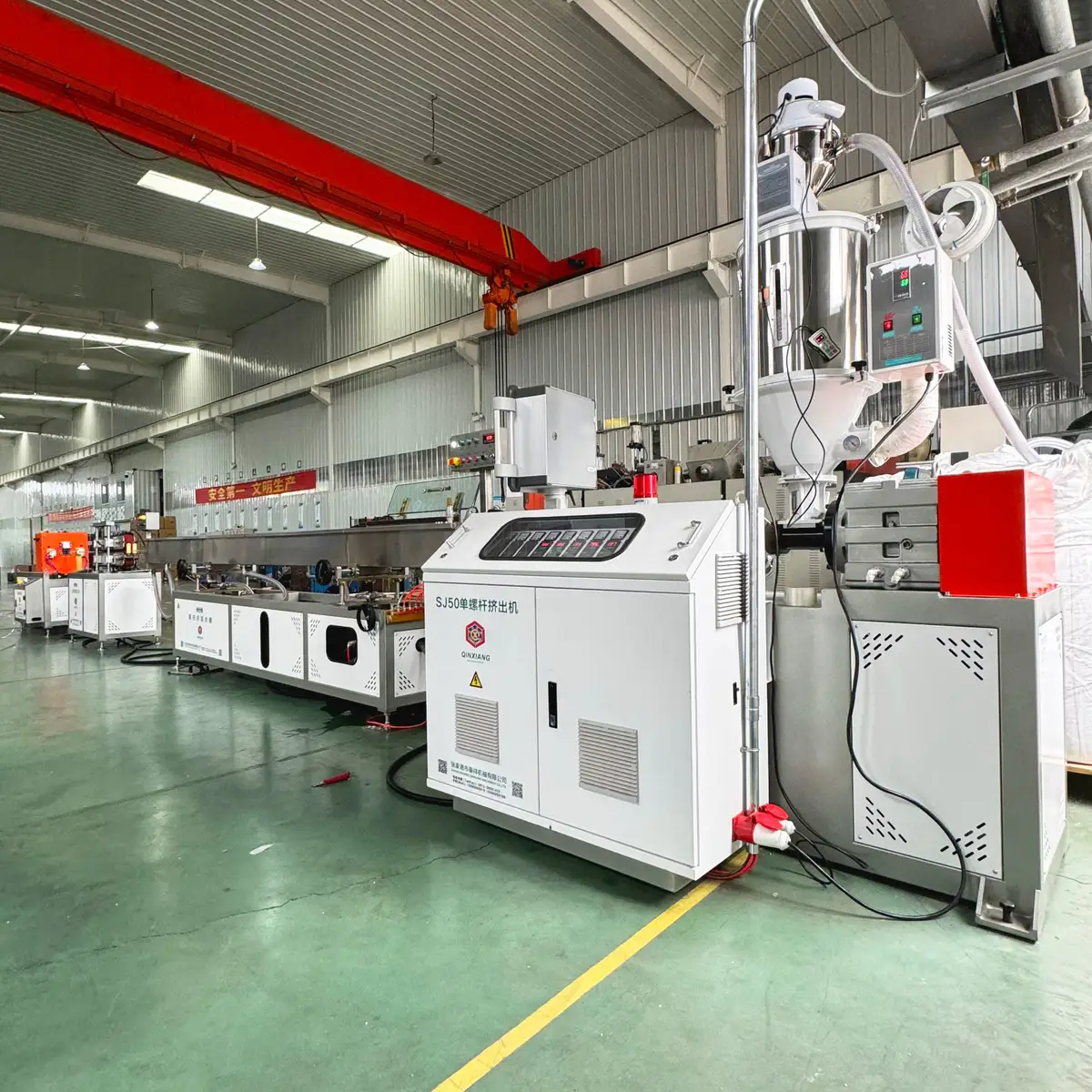

This video presents a customized PETG small tube extrusion line supplied by QTech-Machinery for precision PETG tube production. The complete line is designed for stable extrusion, accurate sizing, smooth traction, and clean chipless cutting.
The customer required a reliable production solution for manufacturing PETG small tubes with consistent dimensions and good surface quality. The target tube specifications included 14.5 mm and 17.5 mm outer diameters, with stable wall thickness control during continuous production.
The PETG tube extrusion line includes five main sections: extrusion, mold forming, vacuum calibration, haul-off, and chipless cutting. Each machine works together to ensure stable material plasticizing, accurate tube shaping, efficient cooling, and precise cutting.
| Section | Equipment | Function |
|---|---|---|
| 1 | SJ50/28 Single Screw Extruder | Melts and plasticizes PETG material for stable extrusion |
| 2 | PETG Tube Extrusion Mold | Forms PETG tubes with required outer diameter and wall thickness |
| 3 | 4.5 m Stainless Steel Vacuum Calibration Tank | Calibrates, cools, and stabilizes tube dimensions |
| 4 | 80 mm Belt Haul-off Machine | Provides steady traction for continuous production |
| 5 | Small Chipless Circular Cutting Machine | Cuts tubes cleanly without chips or dust |
| Machine | Key Features |
|---|---|
| SJ50/28 Single Screw Extruder | PETG special screw, 28:1 L/D ratio, 15 kW main motor, Yaskawa inverter, 4 heating zones |
| PETG Tube Extrusion Mold | Supports 14.5 mm and 17.5 mm tube sizes, 40Cr mold body, copper sizing sleeves, mica heating |
| Vacuum Calibration Tank | 4.5 m stainless steel tank, 2.2 kW vacuum pump, high-level water tank, digital water temperature display |
| Belt Haul-off Machine | 80 mm red V-belt, 0–10 m/min speed range, dual 1.1 kW motors, inverter speed control |
| Chipless Cutting Machine | Rotary cutting, pneumatic knife feeding, 10–50 mm cutting range, Siemens PLC and HMI control |
After installation and testing, the PETG small tube extrusion line achieved stable running performance. The system delivered uniform extrusion, accurate tube sizing, smooth haul-off, and clean cutting results. It provides the customer with an efficient and reliable solution for continuous PETG tube production.
The project demonstrates QTech-Machinery’s ability to provide customized PETG tube extrusion solutions based on customer production needs. With optimized extrusion technology, precise calibration, stable traction, and chipless cutting, this line helps customers improve production efficiency and product consistency.
The machine in this video is one configuration. Send your target output, raw material, product size range, and local voltage, and our engineers quote the correct screw, die, downstream, and control setup for your market.
If your question is not covered here, send it over. Maggie replies with drawings, test footage, or a spare parts list within 24 hours.
This video shows a complete PETG small tube extrusion line, including the SJ50/28 extruder, extrusion mold, vacuum calibration tank, belt haul-off machine, and chipless cutting machine.
The line is configured for PETG tubes with 14.5 mm and 17.5 mm outer diameters, with corresponding wall thickness options of 0.75 mm and 0.9 mm.
Tube size and shape are controlled by the extrusion mold and the 4.5 m vacuum calibration tank, which helps calibrate, cool, and stabilize the PETG tube during production.
The line uses an 80 mm belt haul-off machine with adjustable speed from 0–10 m/min, allowing traction speed to match the extrusion output.
The line uses a rotary chipless cutting machine with pneumatic knife feeding. It cuts PETG tubes cleanly without producing chips or dust.
The SJ50/28 single screw extruder can reach an output of up to 50 kg/h, depending on tube size, material condition, and production settings.
The extruder uses Yaskawa inverter speed control, while the cutting machine is equipped with Siemens PLC and HMI for parameter setting and operation control.
Visitors can understand the full PETG tube extrusion process, machine layout, key configuration points, and how each section works together for stable tube production.
