QTech-Machinery’s PPR Pipe Extrusion Line

PPR Pipe Extrusion Line Video Introduction

This video introduces a customized PPR pipe extrusion line developed by QTech-Machinery for a customer in the plumbing and plastic pipe manufacturing industry. The production line is designed for making PP and PPR pipes from Φ20mm to Φ110mm, supporting stable output, accurate pipe dimensions and efficient long-term operation.

Through this video, viewers can understand the complete PPR pipe production process, including single-screw extrusion, color marking, vacuum calibration, spray cooling, caterpillar haul-off and no-chip cutting. It also shows how QTech-Machinery configures a pipe extrusion solution based on the customer’s pipe diameter range, output target, material, local voltage, automation level and application requirements.

Project Background

Customer Requirement

The customer needed a high-efficiency PPR pipe extrusion line to improve production capability in the plumbing industry. The line had to support a wide diameter range, deliver consistent product quality and use durable components for reliable long-term production.

Key requirements included:

• Production of PPR pipes from Φ20mm to Φ110mm
• Suitable processing for PP and PPR materials
• High production efficiency with controlled energy consumption
• Stable pipe dimensions and surface quality
• Advanced automation for easier operation
• Robust machine construction for long service life
• Clean and accurate pipe cutting
• Optional color marking for product identification

QTech-Machinery Solution

QTech-Machinery supplied a complete PPR pipe extrusion line centered on an SJ75/33 single screw extruder. The system also includes a color marking extruder, vacuum calibration tank, spray cooling tank, three-jaw caterpillar haul-off, no-chip cutting machine and automated electrical control system.

The line was configured to improve plasticizing quality, enhance cooling efficiency, maintain dimensional stability and provide clean cutting for PP/PPR pipe production.

Key Machine Configuration

	Machine / Section	Specification	Function
Main Extruder	SJ75/33 Single Screw Extruder	Melts and extrudes PP/PPR material
Screw Diameter	75 mm	Suitable for Φ20-Φ110mm PPR pipe production
Screw L/D Ratio	33:1	Supports stable plasticizing and uniform melt
Screw Structure	Optimized BM screw structure	Improves plasticization and production stability
Main Motor Power	55 kW	Provides strong extrusion power
Speed Control	Yaskawa inverter	Enables precise extruder speed adjustment
Heating System	Ceramic heaters with fan cooling	Maintains stable barrel temperature
Heating Zones	4.5 kW × 6 zones	Supports accurate temperature control
Color Marking Extruder	SJ25/25	Adds color marking line on pipe surface
Vacuum Calibration Tank	6 m stainless steel tank	Sizes and stabilizes pipe after extrusion
Vacuum Pumps	Dual 4 kW vacuum pumps	Provides vacuum force for dimensional accuracy
Spray Cooling Tank	6 m cooling tank	Further cools pipe after calibration
Water Pump	5.5 kW	Supports efficient spray cooling
Haul-Off Machine	Three-jaw caterpillar haul-off	Pulls pipe steadily through the line
Effective Haul-Off Length	2500 mm	Provides stable contact length for traction
Haul-Off Speed	0.2-15 m/min	Adjustable according to pipe size and output
Cutting Machine	No-chip cutter	Cuts pipe cleanly without material chips
Cutting Diameter Range	Φ20-Φ110 mm	Matches the full pipe size range of the line
Control Components	Siemens and Schneider components	Supports reliable and automated operation

What Visitors Can See in the Video

Complete PPR Pipe Production Flow

The video shows the complete production process from raw material extrusion to pipe shaping, cooling, hauling and cutting. It helps buyers understand how each section works together to produce high-quality PPR pipes.

Efficient Single-Screw Extrusion

The SJ75/33 single screw extruder is the core of the line. Its 75mm screw, 33:1 L/D ratio and optimized BM screw structure help ensure high plasticization, stable material output and uniform melt quality.

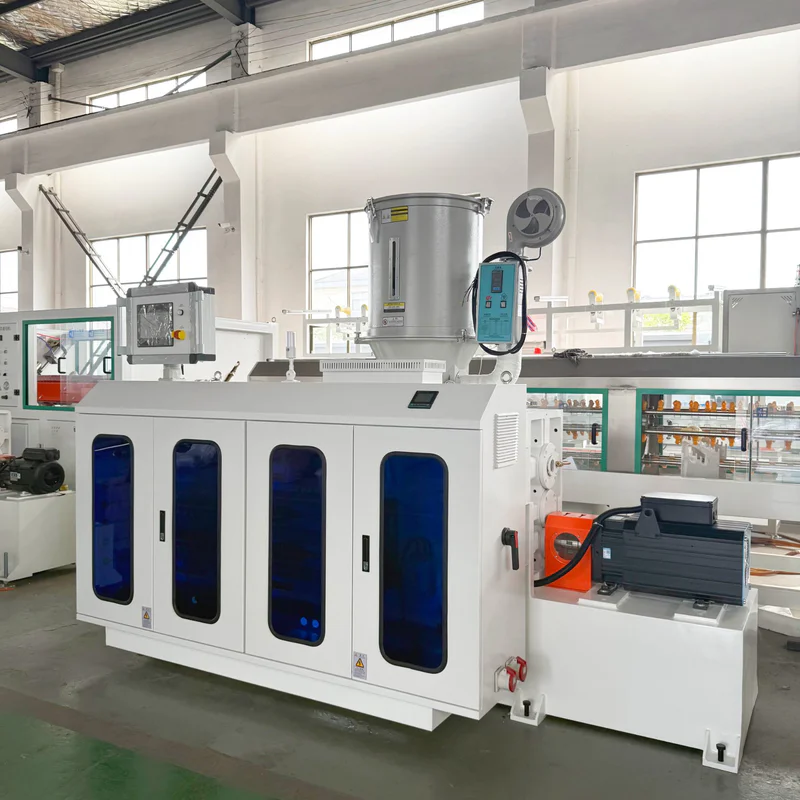

Color Marking for Pipe Identification

The SJ25/25 color marking extruder can add a colored line to the pipe surface. This is useful for product identification, brand differentiation and market requirements.

Vacuum Calibration and Spray Cooling

The 6-meter vacuum calibration tank helps maintain pipe roundness and dimensional accuracy, while the 6-meter spray cooling tank provides rapid and uniform cooling. This combination supports stable pipe quality during continuous production.

Stable Haul-Off and Clean Cutting

The three-jaw caterpillar haul-off machine provides steady traction with an adjustable speed range of 0.2-15 m/min. The no-chip cutting machine cuts pipes from Φ20mm to Φ110mm cleanly and accurately, reducing material waste and improving finished product appearance.

Main Value of This Video

For PPR Pipe Manufacturers

This video gives PPR pipe manufacturers a clear reference for selecting a complete pipe extrusion line. It shows the main machines, production workflow and configuration needed for producing pipes in the Φ20-Φ110mm range.

For Plumbing Pipe Producers

The line is especially suitable for hot and cold water pipe production in the plumbing industry. The video helps buyers evaluate machine performance, pipe quality control and downstream equipment configuration.

For Engineers and Project Buyers

Engineers and buyers can use the video to review the line layout, extrusion system, cooling design, haul-off structure and cutting method before investing in similar equipment.

Application Areas

Customization Options

Why This Project Matters

This project demonstrates QTech-Machinery’s ability to provide a complete and efficient PPR pipe extrusion solution for the plumbing industry. The line combines an optimized single-screw extruder, color marking system, vacuum calibration, spray cooling, three-jaw haul-off and no-chip cutting into one integrated production system.

It also highlights how QTech-Machinery configures each line according to the buyer’s product size, material, output target, automation requirements and local operating conditions.

Conclusion

This video presents a complete PPR pipe extrusion line designed for producing Φ20-Φ110mm PP/PPR pipes with stable quality and efficient operation. It highlights the machine configuration, technical specifications and production workflow, helping viewers understand how QTech-Machinery supports global customers with customized plastic pipe extrusion solutions.

For manufacturers planning to produce PPR plumbing pipes, construction pipes, irrigation pipes or industrial plastic pipes, this project video provides a useful reference for choosing the right extrusion line configuration and evaluating a reliable turnkey machinery supplier.
