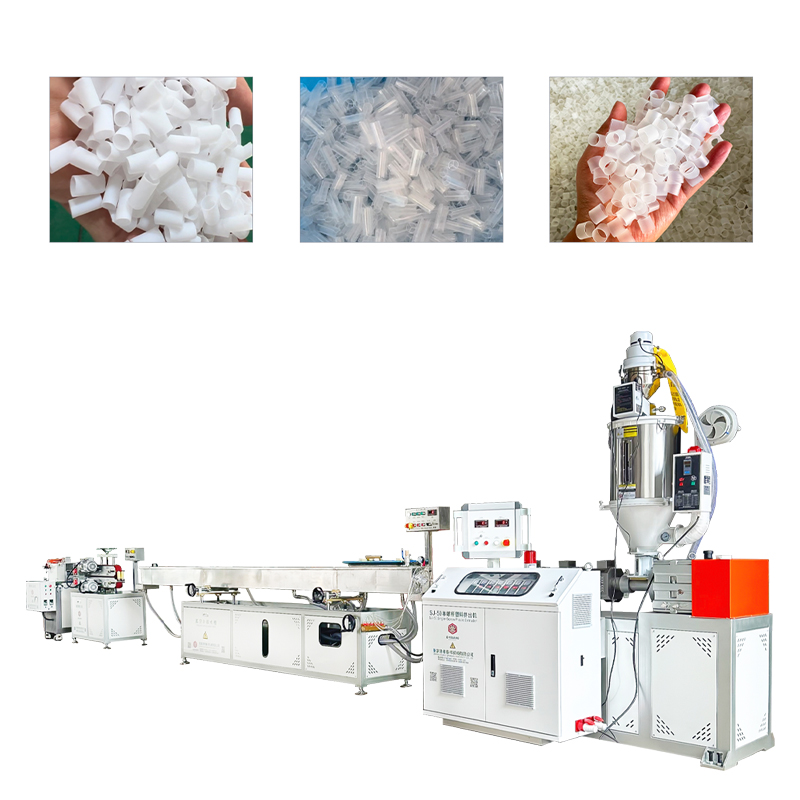

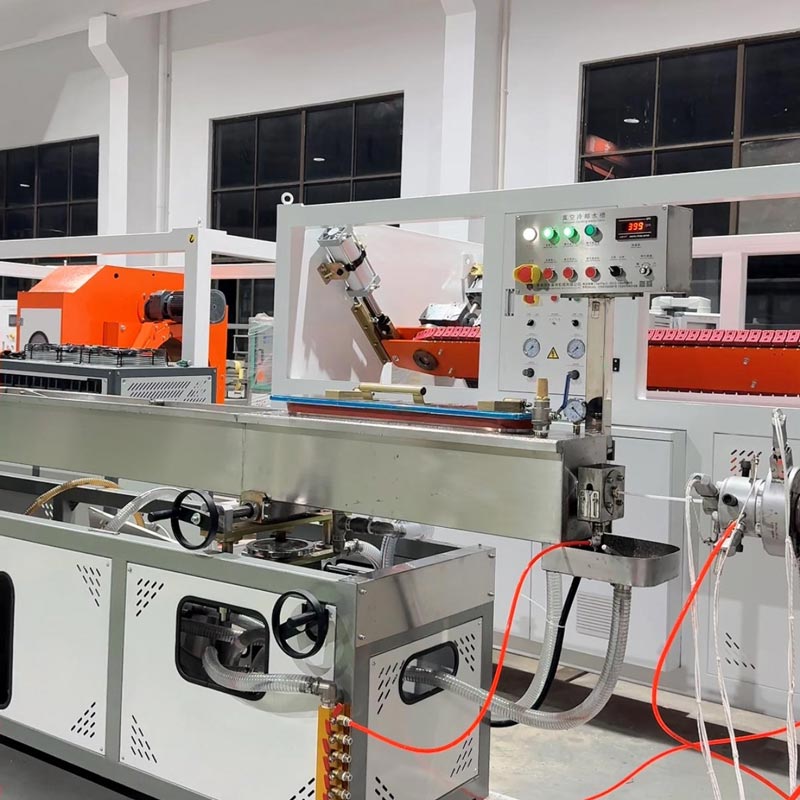

TPE/PE Soft Hose Extrusion Line
TPE/PE Soft Hose Extrusion Line is designed for producing flexible, durable, and eco-friendly soft hoses for medical, food-grade, irrigation, and industrial applications. With stable extrusion performance and customizable configurations, it ensures high efficiency and consistent product quality.
๐ Extended Product Introduction โ TPE/PE Soft Hose Extrusion Line
๐ฆ Product Overview
The TPE/PE Soft Hose Extrusion Line is a high-performance production system for manufacturing flexible hoses and soft tubes using Thermoplastic Elastomer (TPE) and Polyethylene (PE) materials. With advanced extrusion technology, this line delivers smooth surface finish, accurate dimensions, and consistent flexibility.
Thanks to its modular design, the line can be configured for single-layer or multi-layer soft hoses, meeting diverse industry requirements. The entire production process is fully automated, controlled by a PLC system with touchscreen operation, ensuring easy adjustments, reduced labor cost, and reliable output.
This extrusion line is widely used in the medical industry, household water systems, beverage and food industries, agricultural irrigation, pneumatic systems, and cable protection applications. Its flexible production capacity makes it a preferred choice for both small-diameter medical tubing and large-diameter industrial hoses.
๐ฆ Technical Specifications
| Parameter | Value / Range | Description |
|---|---|---|
| Hose Diameter Range | 4 โ 63 mm | Options available up to 110 mm |
| Production Speed | 1 โ 20 m/min | Adjustable according to hose size & material |

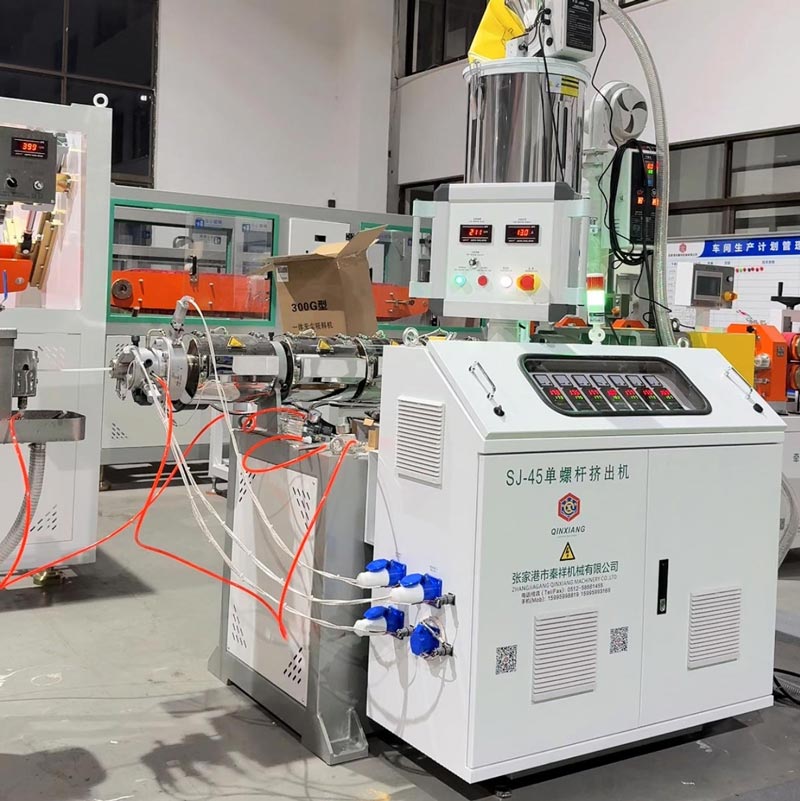

| Extruder Models | SJ45 / SJ65 / SJ75 | Special screw design for TPE & PE materials |
| Drive Motor | Siemens / ABB | High torque, energy-efficient performance |
| Control System | Siemens PLC + Touch Screen | Smart automation, recipe storage, data logging |
| Calibration System | Vacuum calibration tank | Stainless steel construction, precision sizing |
| Cooling Tank | Multi-stage spraying | Ensures even hose cooling, avoids deformation |
| Haul-off Unit | Multi-belt / caterpillar type | Stable pulling without deformation |
| Cutting System | Flying cutter / coiler | Automatic hose length control and winding |
| Energy Efficiency | 15โ25% power saving | Optimized heating and motor system |
๐ฆ Production Process
- Raw Material Feeding & Drying โ Automatic feeder and dryer ensure dust-free and stable raw material supply.
- Extrusion & Plasticization โ High-efficiency extruder melts and mixes raw materials with optimized temperature control.

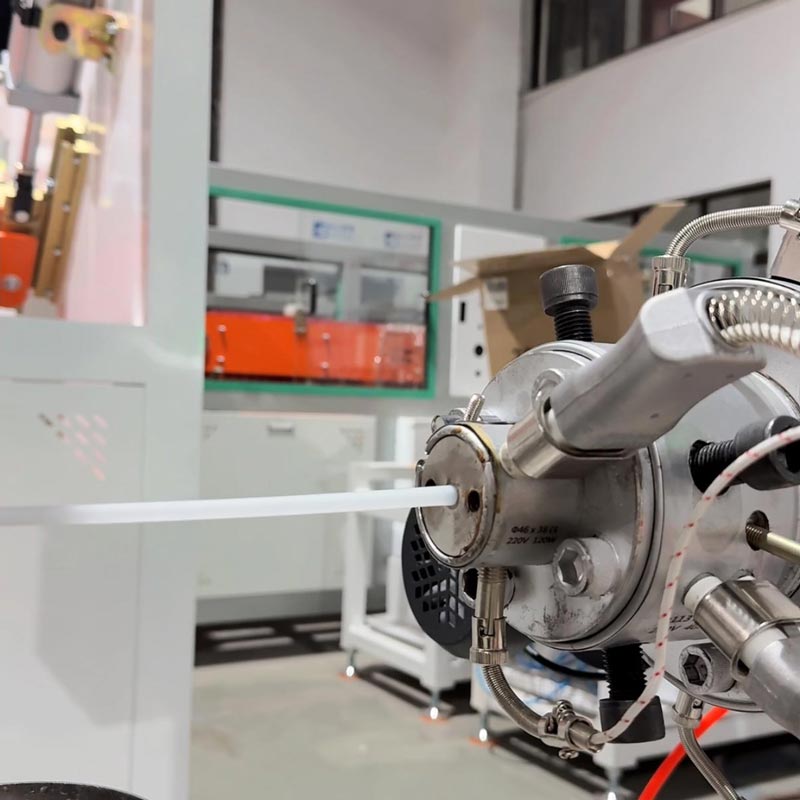

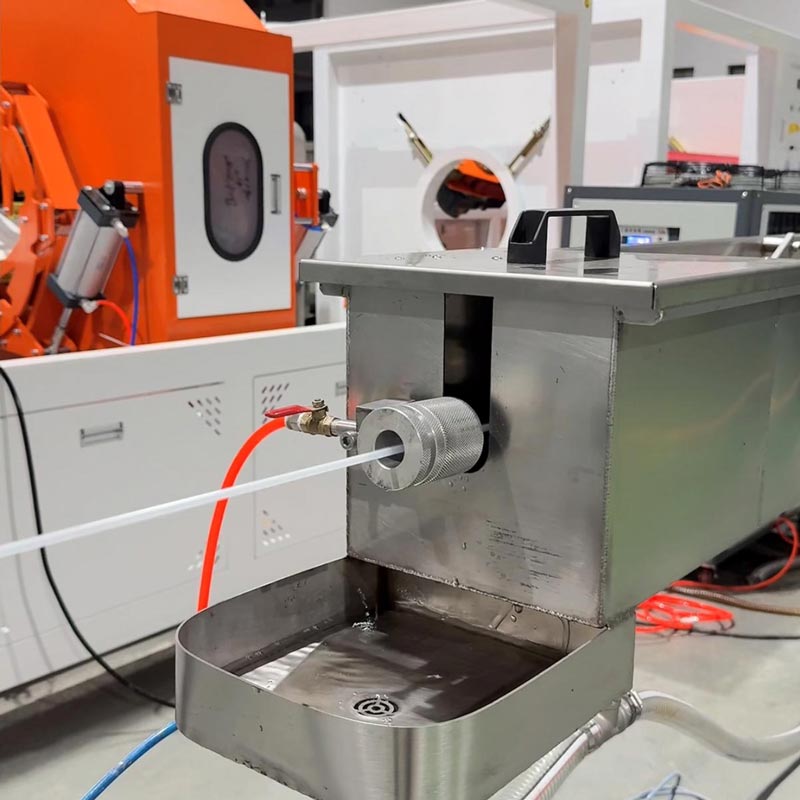

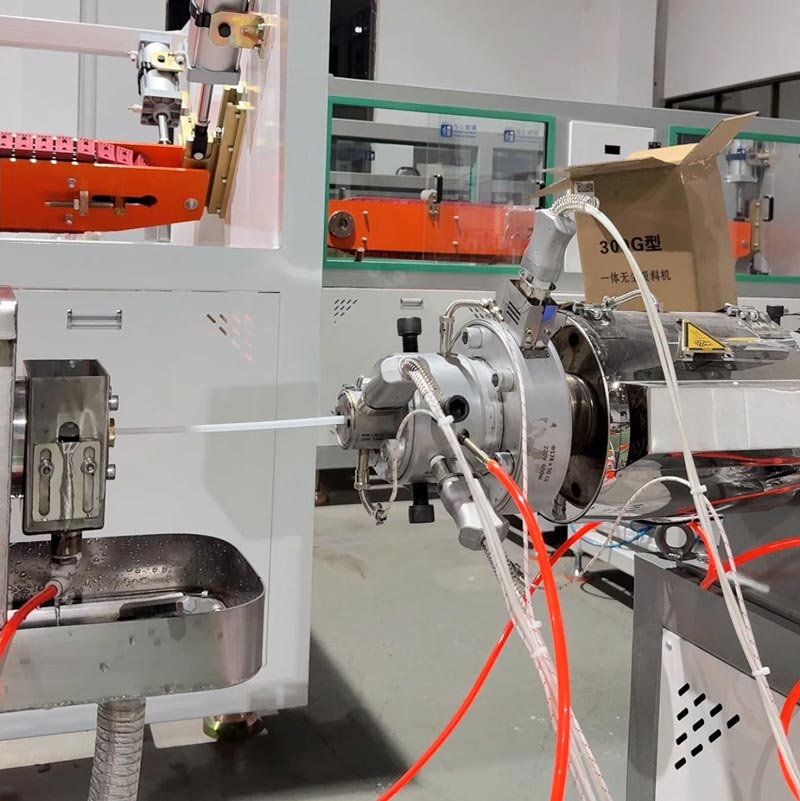

- Die Head & Calibration โ Specially designed die ensures accurate hose shape, while the vacuum calibration tank provides perfect dimensional accuracy.

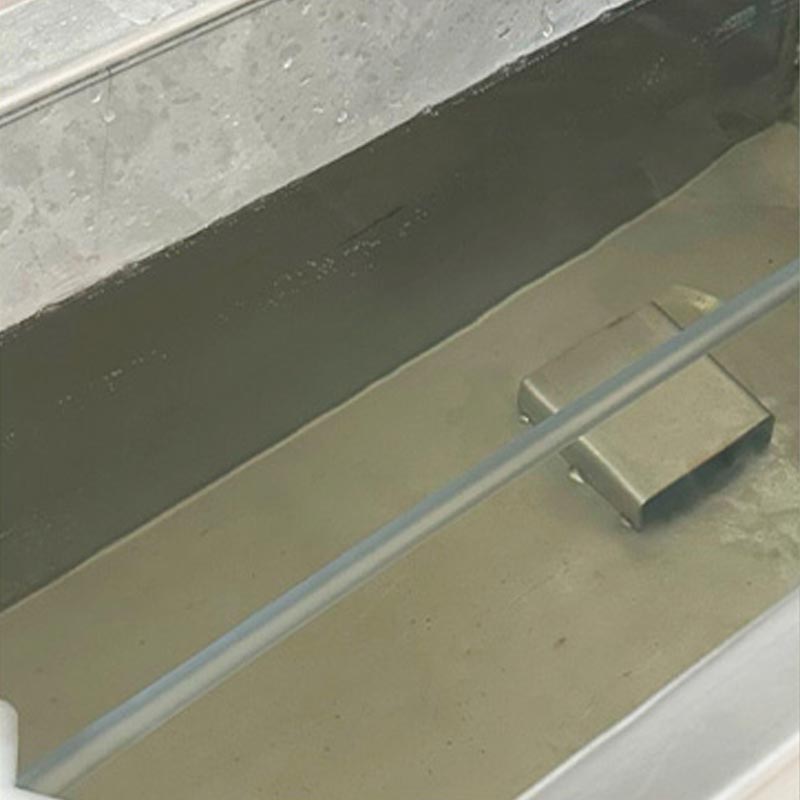

- Cooling & Stabilizing โ Multi-stage cooling system avoids internal stress and guarantees smooth tube surface.
- Haul-off Unit โ Precisely controls line speed and ensures consistent wall thickness.
- Cutting or Coiling โ Cutter for fixed-length products or automatic winder for continuous hose collection.
- Quality Inspection & Packaging โ Real-time monitoring system checks hose diameter, roundness, and thickness before packaging.
๐ฆ Applications
- Medical Sector โ Infusion tubes, respiratory tubes, dialysis hoses, catheter tubing
- Household Applications โ Drinking water supply hoses, shower tubes, kitchen appliance tubing, garden hoses
- Industrial Applications โ Pneumatic hoses, chemical-resistant tubes, oil and gas transfer hoses
- Food & Beverage โ Transparent soft tubes for beverage filling and transport
- Agriculture & Irrigation โ Flexible irrigation pipes, soft water delivery hoses
- Electrical & Communication โ Cable and wire protective conduits
๐ฆ Key Advantages
- Versatile Production โ Supports TPE, PE, EVA, TPU, and multi-layer hose production
- High Precision โ Consistent wall thickness and roundness for medical and industrial use
- Energy-Efficient Design โ Optimized barrel heating, inverter motors, and efficient cooling systems reduce operating costs
- User-Friendly Operation โ Siemens PLC with touch screen allows recipe storage, real-time monitoring, and automatic alarm system
- Durability & Reliability โ Stainless steel tanks and branded electrical parts (Siemens, ABB, Schneider) ensure long service life
- Customizable Solutions โ Flexible configurations for hose diameter, layer structure, and automation level

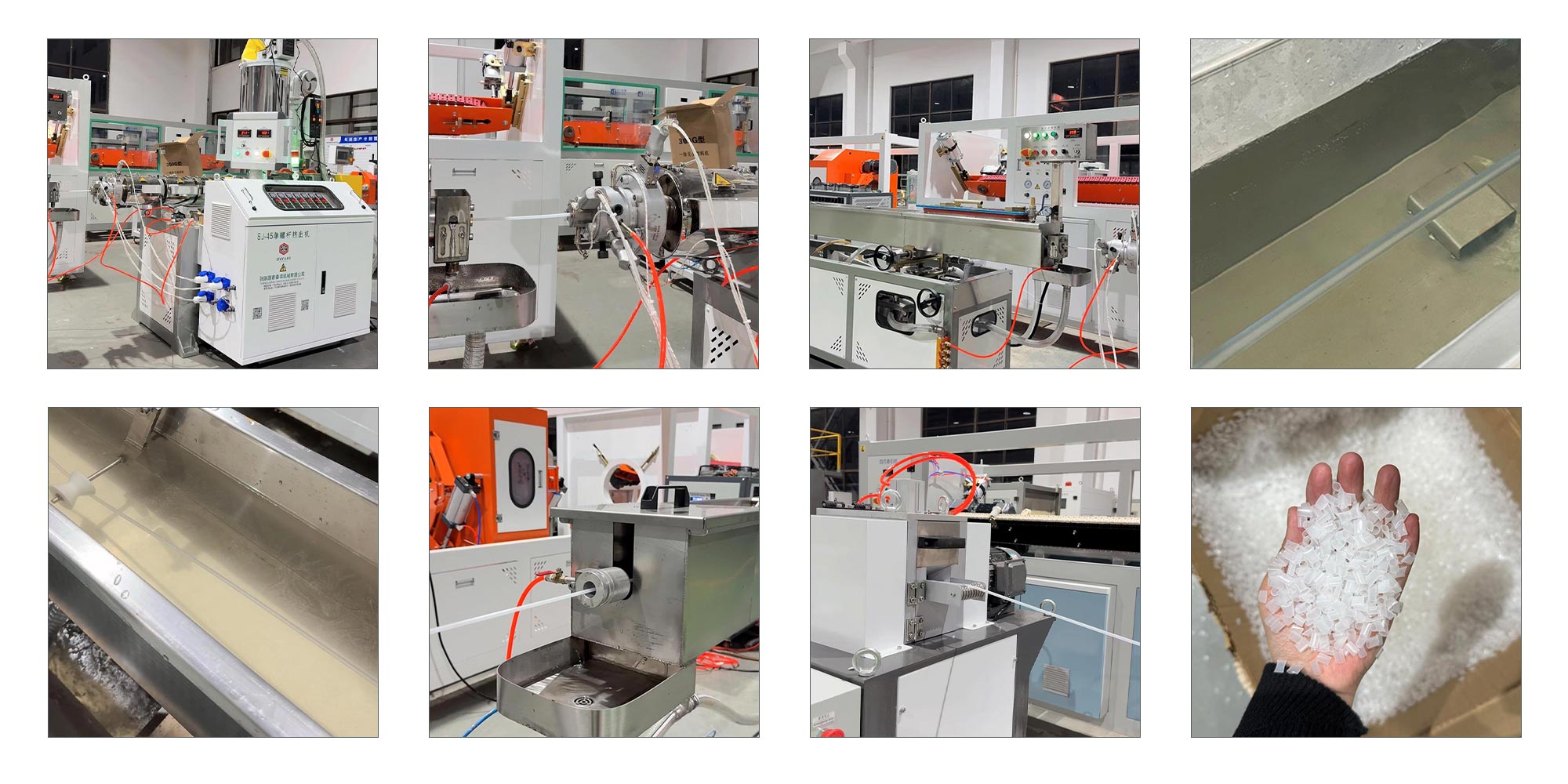

๐ฆ Customer Case
๐ฆ Why Choose Our Extrusion Line?
The TPE/PE Soft Hose Extrusion Line provides a turnkey solution for manufacturers seeking high-quality hose production with low maintenance costs. Its wide adaptability allows production of hoses for medical-grade applications as well as industrial heavy-duty uses.
With global service support, spare parts availability, and training programs, we ensure that your production runs continuously and efficiently, delivering fast ROI and strong competitiveness in the market.
How to choose between PE and TPE soft hose?
- PE hose: Lightweight, cost-effective, excellent chemical resistance, suitable for irrigation, drainage, and general water supply.
- TPE hose: Higher flexibility, softer touch, recyclable, widely used in medical, automotive, and food-grade applications.
If your application requires high flexibility and eco-friendly materials, TPE is preferred. For cost-sensitive, general-purpose piping, PE is an ideal choice.
