20–63 HDPE Pipe Extrusion Line

Deliver high-quality HDPE pipes from 20mm to 63mm with a stable, energy‑efficient extrusion system. Designed for continuous, precise production, this HDPE pipe extrusion line integrates advanced control, efficient cooling, and clean cutting for smooth surfaces and accurate diameters.

Product Features

The Φ20-Φ63 HDPE Pipe Production Line is a state-of-the-art system designed to produce high-quality HDPE pipes with diameters ranging from 20mm to 63mm. This production line is equipped with advanced technology and precision engineering, ensuring superior performance, high efficiency, and consistent output. Key features include:

• High Efficiency: Capable of producing up to 48 kg/day, optimized for continuous production.
• Precision Engineering: Incorporates advanced components like SJ65/33 and SJ25/30 single-screw extruders, ensuring consistent pipe dimensions and quality.
• Automated Systems: Features PLC control systems, automatic water level control, and adjustable traction and cutting speeds for seamless operation.
• Energy Efficiency: Equipped with Siemens motors and ABB inverters, ensuring optimal energy utilization.
• Durable Construction: Built with 38CrMoAlA nitrided screws, stainless steel tanks, and high-quality electrical components for long-lasting performance.

Technical Specifications

The Φ20-Φ63 HDPE Pipe Production Line is designed to meet the demanding requirements of modern pipe manufacturing.

General Specifications

• Pipe Diameter Range: Φ20mm-Φ63mm
• Production Capacity: 48kg/day (24 hours)
• Voltage Requirements: 380V/50Hz, three-phase
• Operating Direction: Customizable
• Operating Environment: Indoor, non-hazardous, humidity ≤85%

Key Components

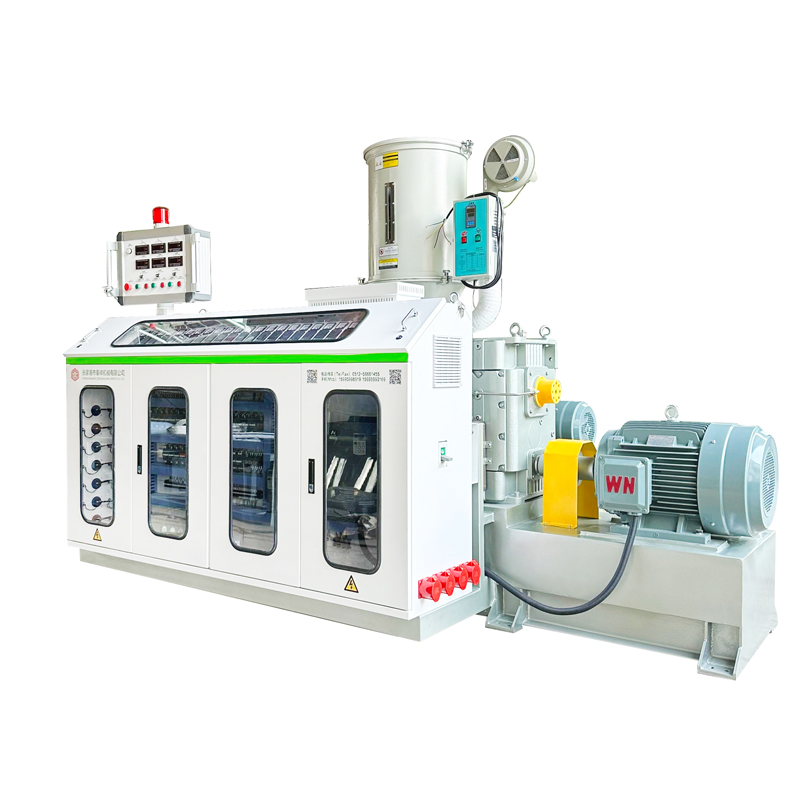

1. SJ65/33 Single-Screw Extruder
   • Screw Diameter: 65mm
   • L/D Ratio: 33:1
   • Motor Power: 55kW Siemens motor
   • Heating Power: 3.9kW x 5 zones
2. SJ25/30 Single-Screw Extruder
   • Screw Diameter: 25mm
   • Motor Power: 1.1kW
   • Heating Power: 0.55kW

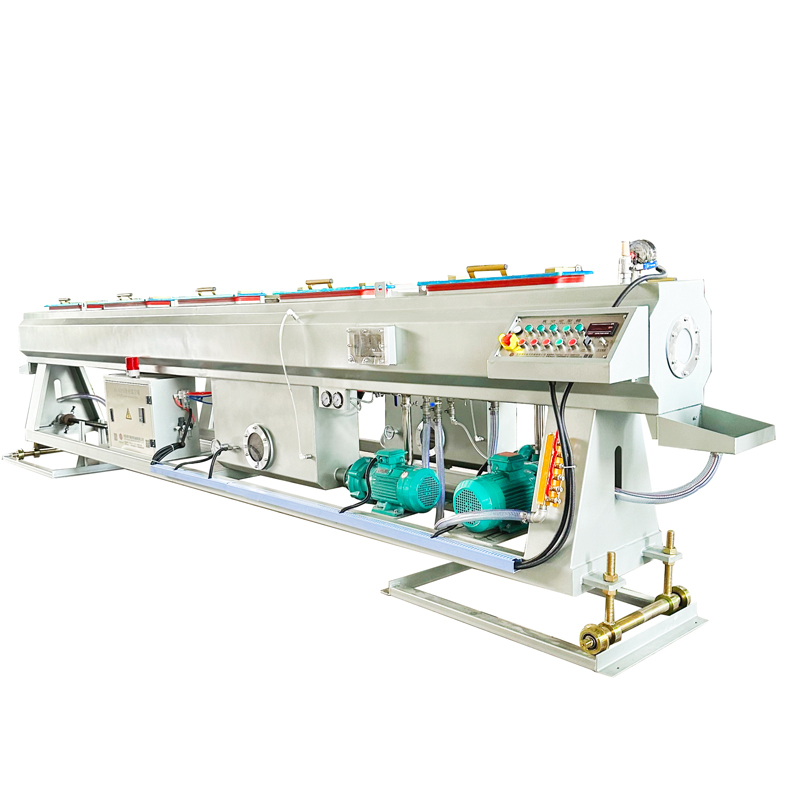

3. Vacuum Calibration Tank
   • Length: 6m
   • Material: 3mm stainless steel
   • Vacuum Pump Power: 4kW
   • Water Pump Power: 4kW
4. Spray Cooling Water Tank
   • Length: 6m
   • Material: 3mm stainless steel

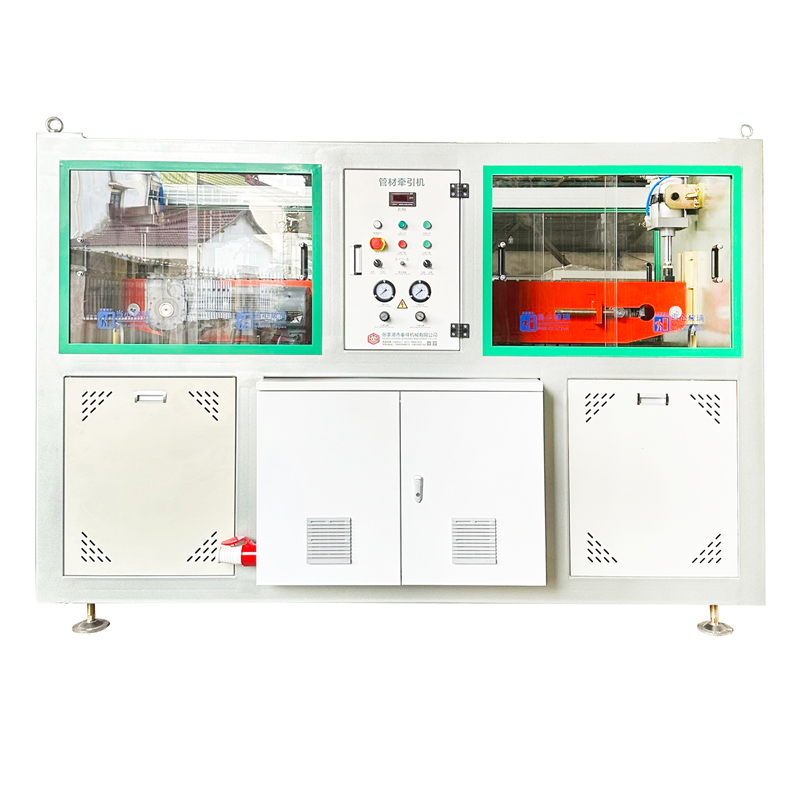

5. Two-Claw Traction Machine
   • Traction Speed: 0.6-20m/min
   • Motor Power: 2.2kW

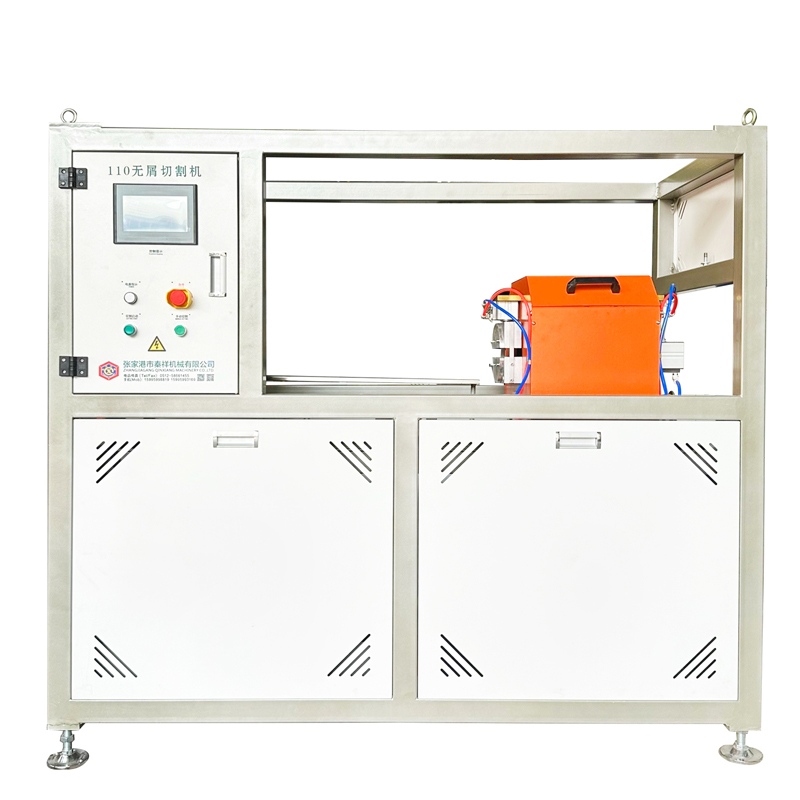

6. PE Chipless Cutter
   • Cutting Range: 20-110mm
   • Cutting Method: Rotary cutting with pneumatic feeding
   • Motor Power: 1.1kW

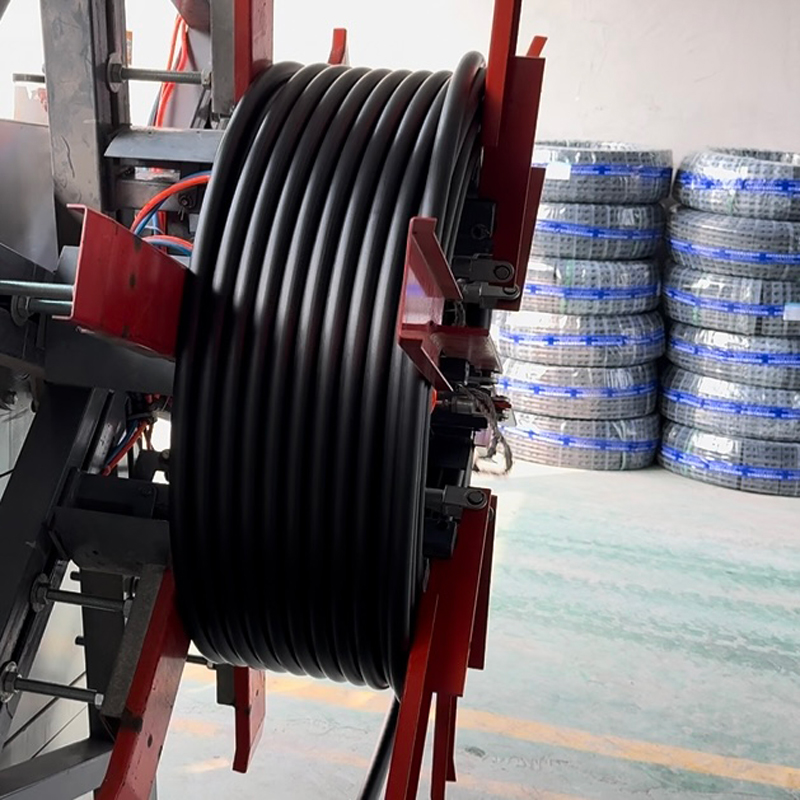

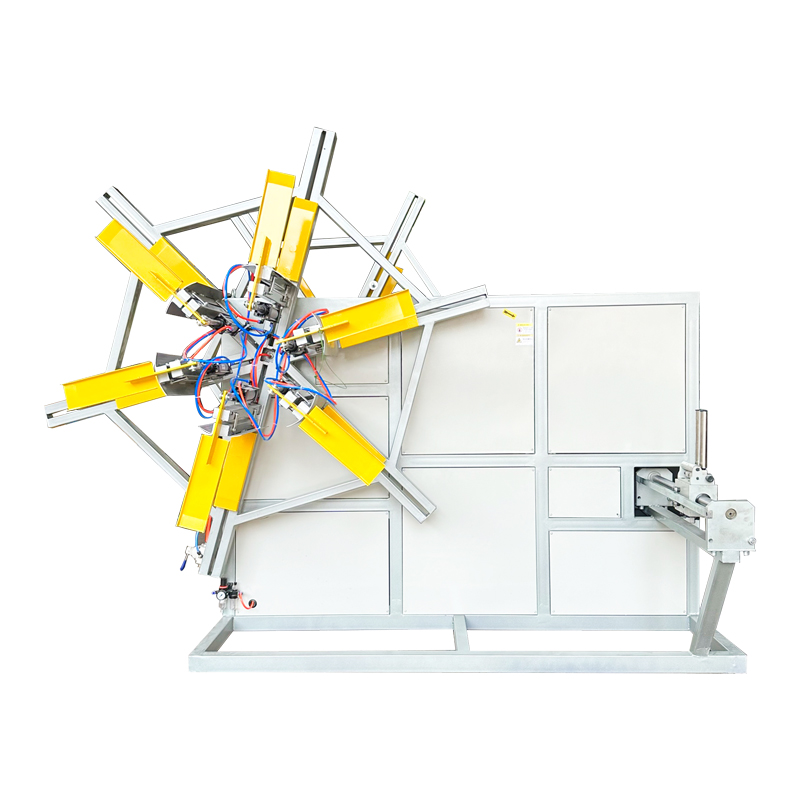

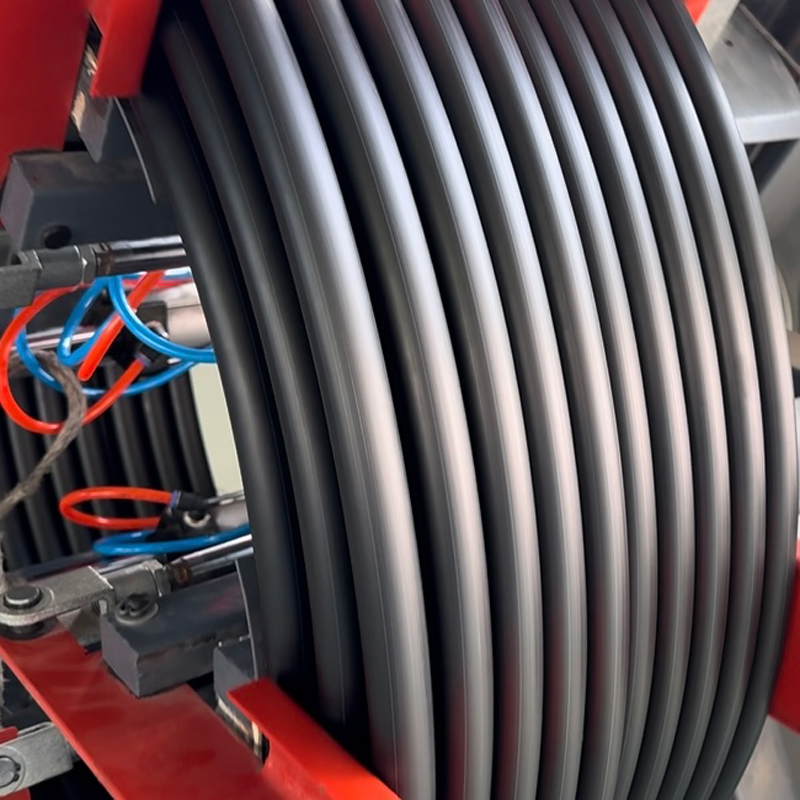

7. Double-Station Coiler
   • Suitable Pipe Diameter: 20-75mm HDPE pipes
   • Maximum Coiling Diameter: 2500mm
   • Coiling Speed: 0.5-40m/min

Why Choose Our HDPE Pipe Extrusion Line?

Consistent Quality, Lower Production Cost

• Tight ovality and wall‑thickness tolerance reduce scrap
• Optimized energy profile lowers kWh/kg

Easy Operation and Fast Changeover

• Intuitive HMI, guided setup, and recipe storage for size 20–63mm
• Tooling designed for quick calibration and minimal downtime

Built for SEO‑Friendly Markets

• HDPE pipe production line for 20–63mm
• HDPE pipe extrusion line with vacuum calibration
• Energy‑efficient extruder for HDPE water pipe
• Servo haul‑off and chipless cutter for smooth HDPE pipes

Optional Upgrades and Compliance

Upgrades

• Co‑extrusion stripes (1–3 lines) for identification
• Online ovality and wall‑thickness measurement
• Centralized data + remote support

Standards and Materials

• Compatible with PE100/PE80 resins
• Supports compliance with common standards (e.g., ISO 4427, EN 12201) when paired with proper process control and testing

Get a Quote

Start Your 20–63mm HDPE Pipe Project

• Request throughput options (kg/h), energy profile, and footprint layout
• Share target pipe SDRs, application, and local standards for a tailored proposal

Contact us to receive a detailed configuration, price, delivery time, and sample run video for the 20–63 HDPE pipe production line.
