Factory Direct HDPE Pipe Extrusion Line
High-efficiency HDPE pipe extrusion line with vacuum sizing, multi-layer co-extrusion, online diameter control, and PLC automation for stable mass production.
Product Video

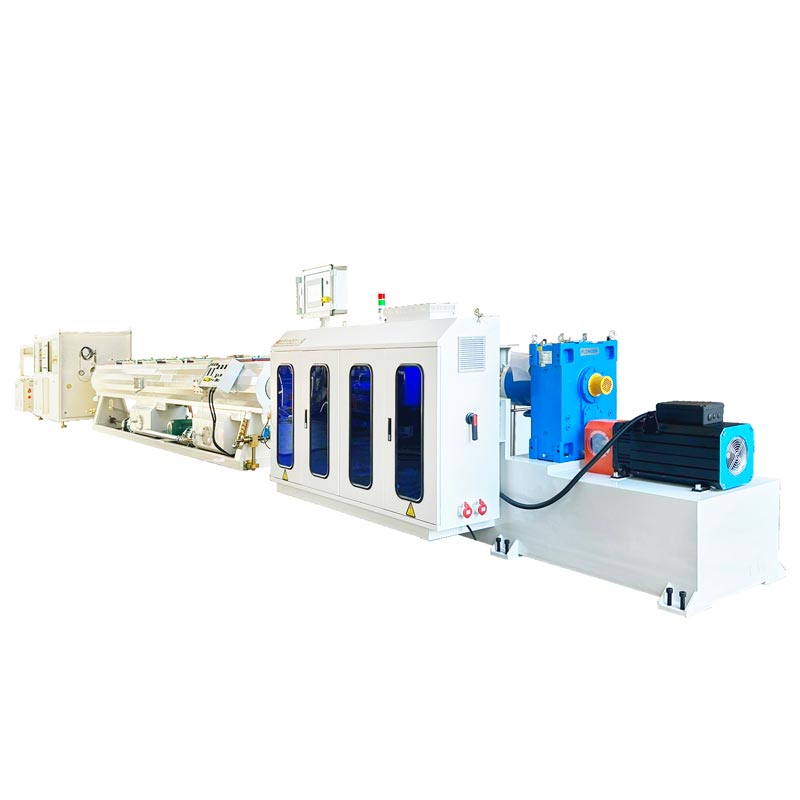

HDPE Pipe Extrusion Line – Reliable PE Pipe Manufacturing Solution
Product Overview
The HDPE Pipe Extrusion Line is a state-of-the-art system designed for the continuous production of strong, lightweight, and corrosion-resistant HDPE and PE pipes. Built for high performance, it combines precision extrusion technology, advanced control systems, and efficient cooling methods to deliver pipes that meet strict international standards.
This PE Pipe Production Line is ideal for manufacturing pipes for municipal water systems, gas transportation, agricultural irrigation, and industrial fluid handling. Its modular design allows easy customization for different pipe diameters, wall thicknesses, and output capacities.
Key Components & Features
- Automatic Feeding and Dosing System
- Ensures consistent material flow and accurate formulation ratios.

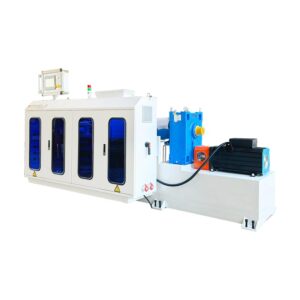

- High-Performance Single Screw Extruder
- Specialized screw geometry for optimal HDPE melting and dispersion.
- Advanced barrel heating and cooling for stable temperature control.
- Spiral Die Head with Streamlined Flow Channel
- Provides even melt distribution and precise wall thickness.
- Supports smooth transitions for multi-layer pipe production.

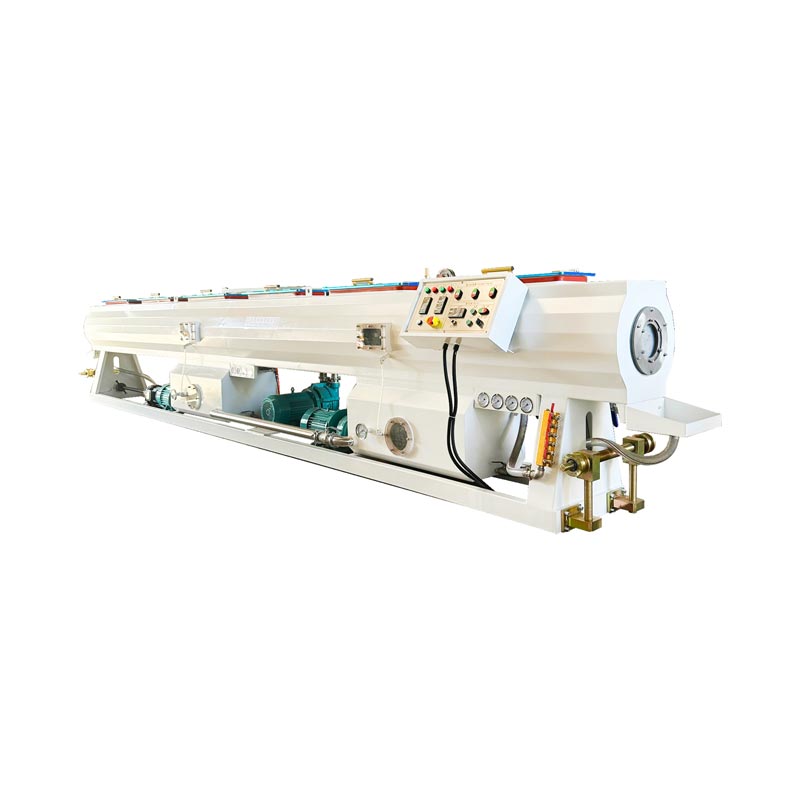

- Vacuum Calibration Tank
- High-efficiency vacuum pumps for accurate pipe sizing.
- Adjustable supports for different pipe diameters.
- Multi-Section Cooling Tanks
- Uniform cooling to maintain pipe roundness and prevent deformation.

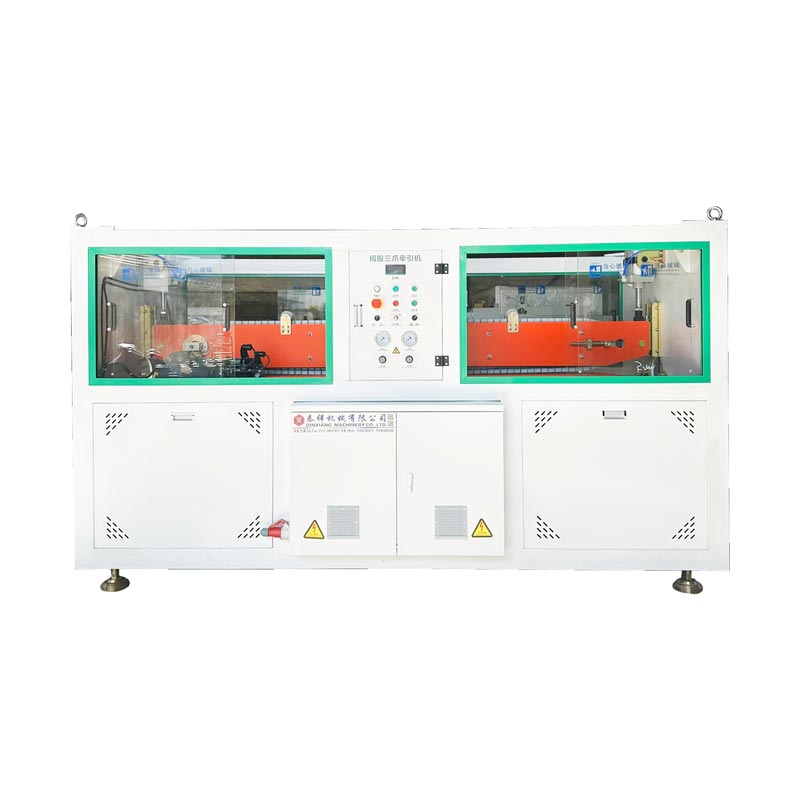

- Heavy-Duty Haul-Off Unit
- Synchronizes with extrusion speed to ensure consistent pipe dimensions.

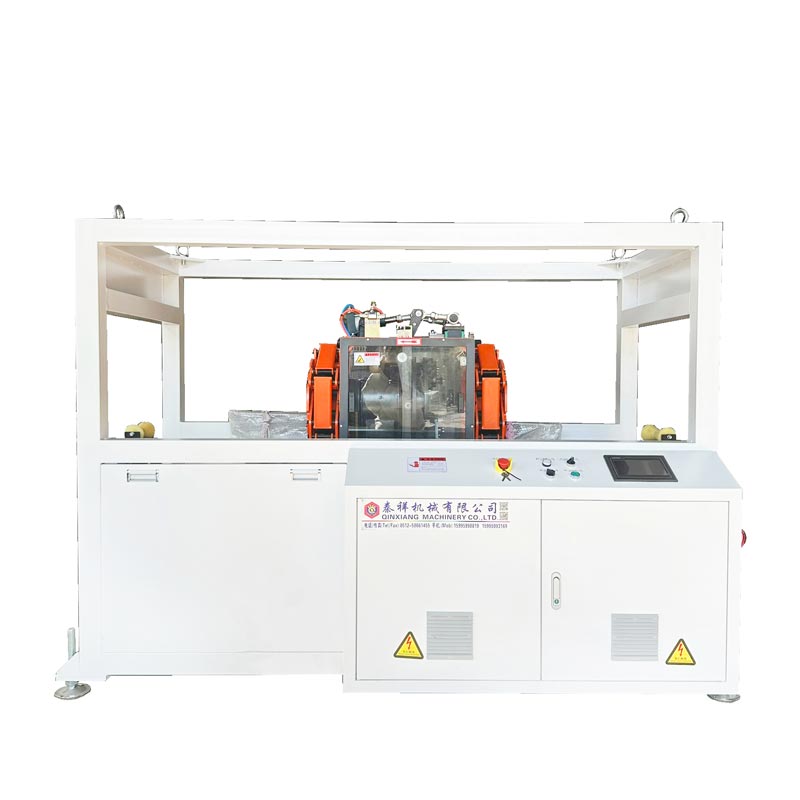

- Precision Cutting System
- Chipless or planetary cutting options for clean, dust-free cuts.
- Automatic Discharge and Stacking
- Reduces manual handling and improves workflow efficiency.
Typical Technical Range (Customizable)
| Model | Diameter Range | Extruder Model | Max Output | Power Consumption |
|---|---|---|---|---|
| HDPE-110 | 20–110 mm | SJ-65/33 | 180 kg/h | 65 kW |
| HDPE-250 | 75–250 mm | SJ-75/33 | 320 kg/h | 110 kW |
| HDPE-450 | 160–450 mm | SJ-90/33 | 550 kg/h | 165 kW |
| HDPE-800 | 315–800 mm | SJ-120/33 | 900 kg/h | 280 kW |
| HDPE-1200 | 630–1200 mm | SJ-150/33 | 1300 kg/h | 400 kW |
Applications
- Municipal Water Supply – Durable, leak-proof pipes for long-term service.
- Gas Distribution – High-pressure resistance and chemical stability.
- Agricultural Irrigation – UV-resistant pipes for outdoor use.
- Industrial Piping – Suitable for chemicals, slurry, and waste fluids.
- Protective Sleeves – For cables and telecommunication lines.
Why Choose Our HDPE Pipe Manufacturing Equipment?
- Precision Engineering – Consistent pipe dimensions, smooth surfaces.
- Energy Efficiency – Optimized drive and heating systems reduce costs.
- Custom-Built Solutions – Tailored for specific production needs.
- Low Maintenance – Durable components and easy-to-replace parts.
- Global Service Support – Installation, training, and after-sales assistance.
Customer Case
Call to Action
Share your target OD range, wall/SDR, throughput or line speed, standards (ISO/EN/ASTM, CE/UL), and delivery timeline. We’ll return a tailored configuration, layout, lead time, and quotation.
