Straw Extrusion Line

Straw Extrusion Line – High-Precision, Energy-Efficient Solution for Modern Manufacturing

A next-generation straw extrusion line engineered for precision, stability, and efficiency. Optimized for LLDPE and PCT materials, this line delivers consistent OD control, smooth surface finish, and reliable throughput, making it ideal for high-volume production and multi-spec customization.

Product Features

Precision & Stability

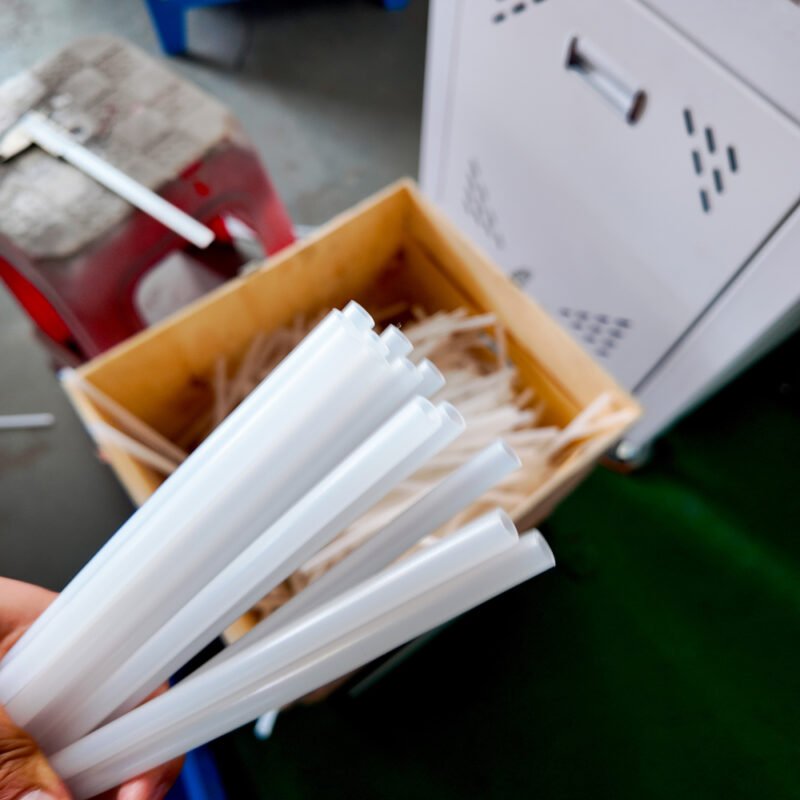

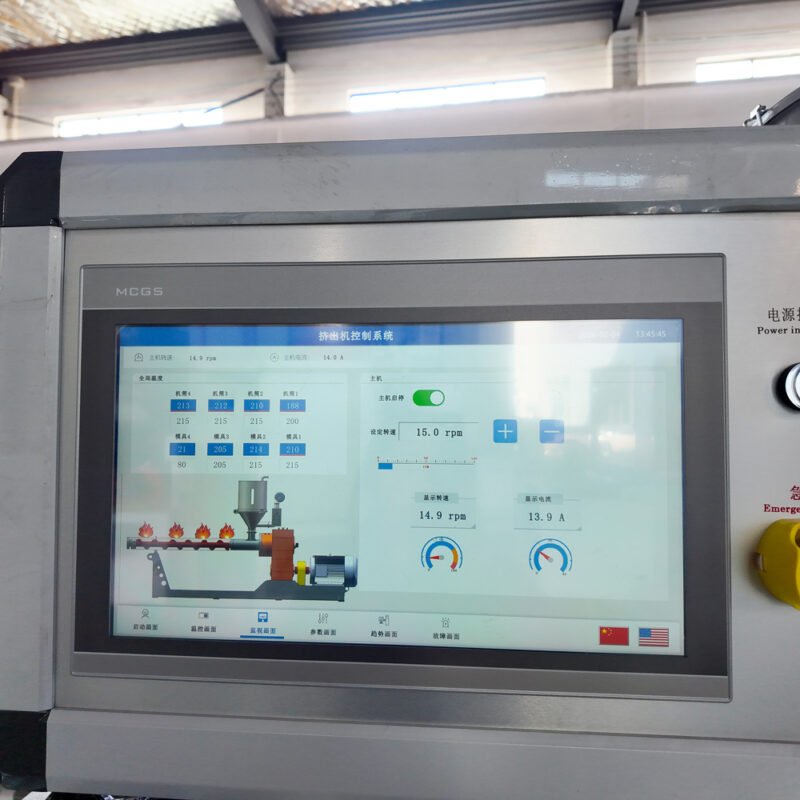

High-accuracy servo single-screw extruder (QX-SJ50/28) with Mitsubishi PLC and 15″ HMI ensures real-time, closed-loop control for stable output and precise temperature management.
Nitrided 38CrMoAlA screw and barrel with optimized L/D 28:1 provide uniform melt, reduced shear, and improved material compatibility for LLDPE and PCT.
4-zone aluminum cast heaters (8.8 kW) plus forced air cooling deliver fast heat-up and tight temperature bands, minimizing start-up scrap.

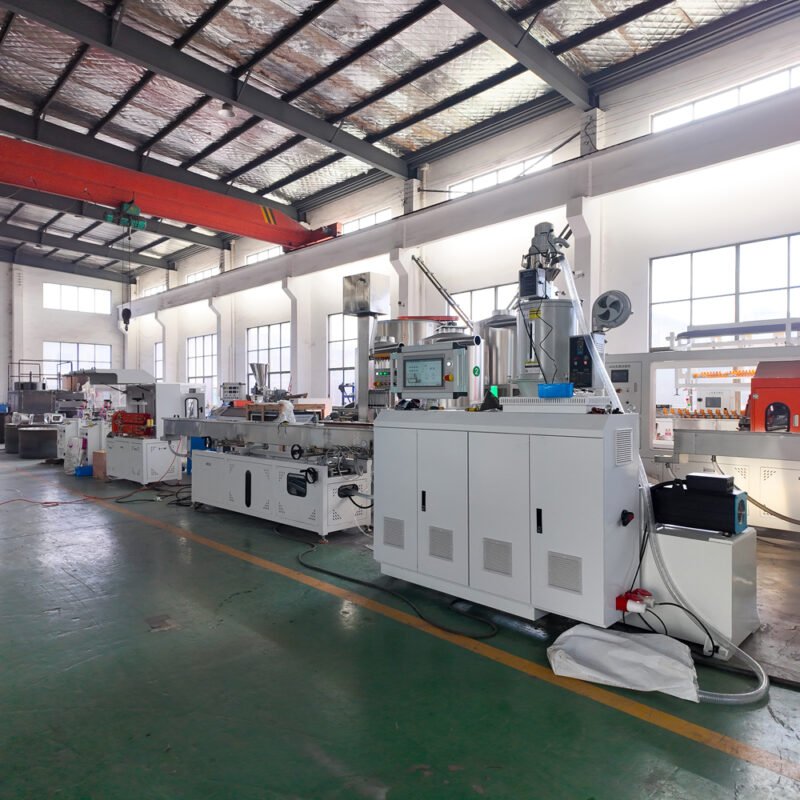

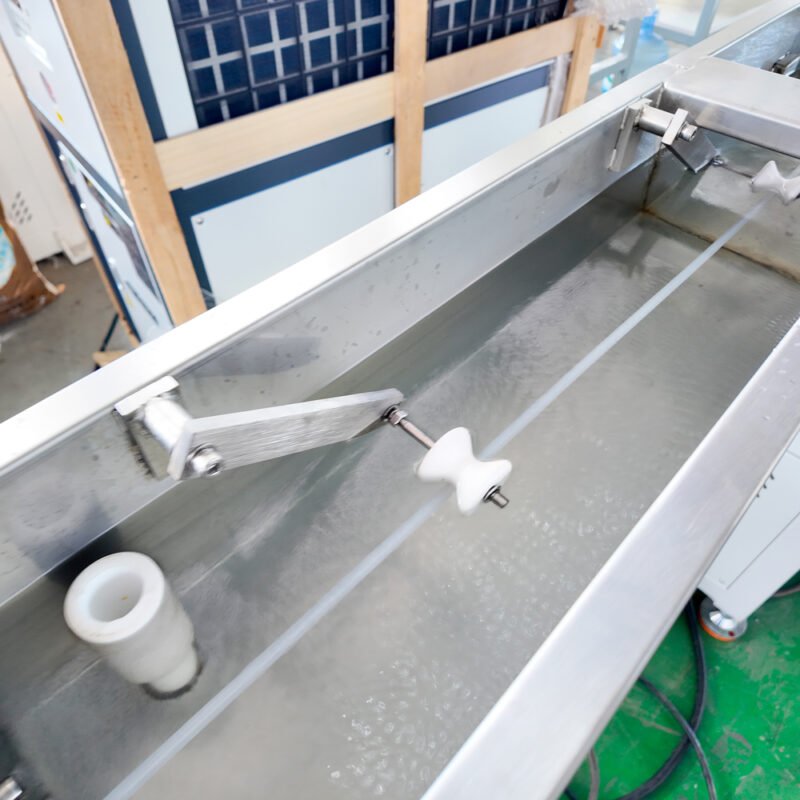

Vacuum sizing tank (QX-SC4500) with stainless-steel 304 construction and 0–(-50 kPa) control ensures roundness, OD consistency, and glossy finish.

Process Efficiency & Energy Savings

Rated capacity 10–40 kg/h, optimized for small tube/straw OD 8×6 mm and 9.5×7.5 mm with low energy footprint (total installed power 32 kW).

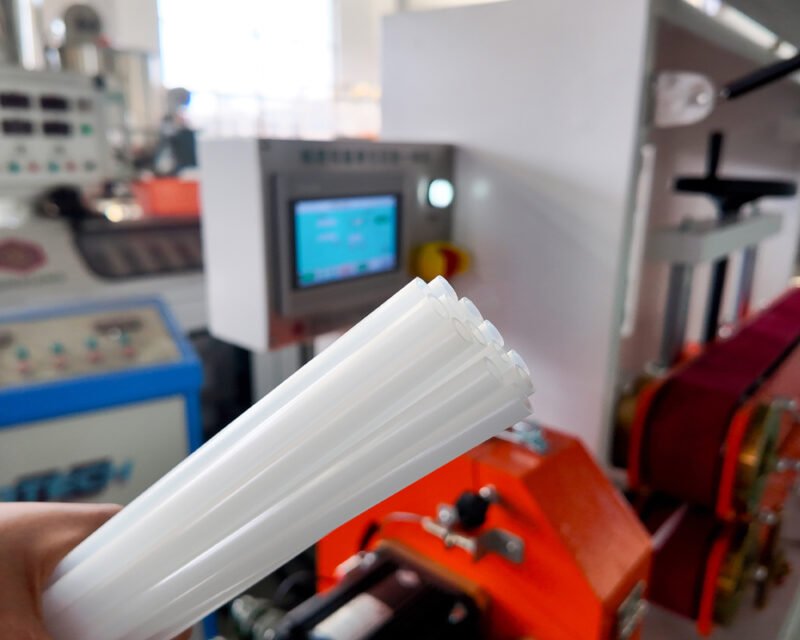

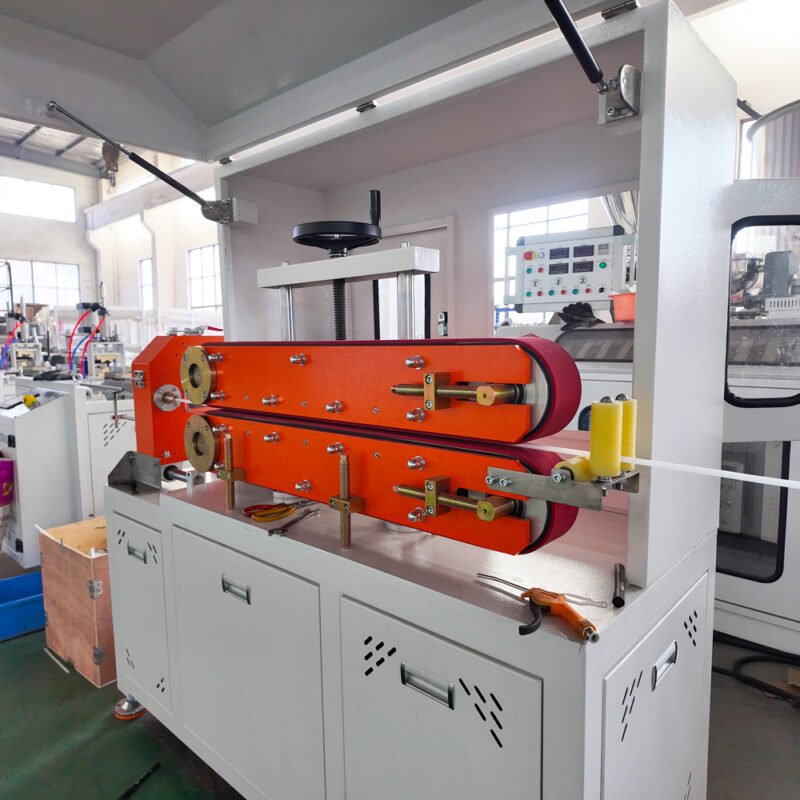

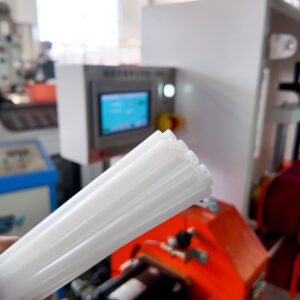

Integrated servo haul-off and rotary cutter (QY-CM1200) maintains synchronous line speed, reducing deformation and burrs.
Shell-and-tube air-cooled chiller (JLSF-5HP) stabilizes cooling water at 5–35°C for consistent dimension control and reduced cycle time.

Material Flexibility & Surface Quality

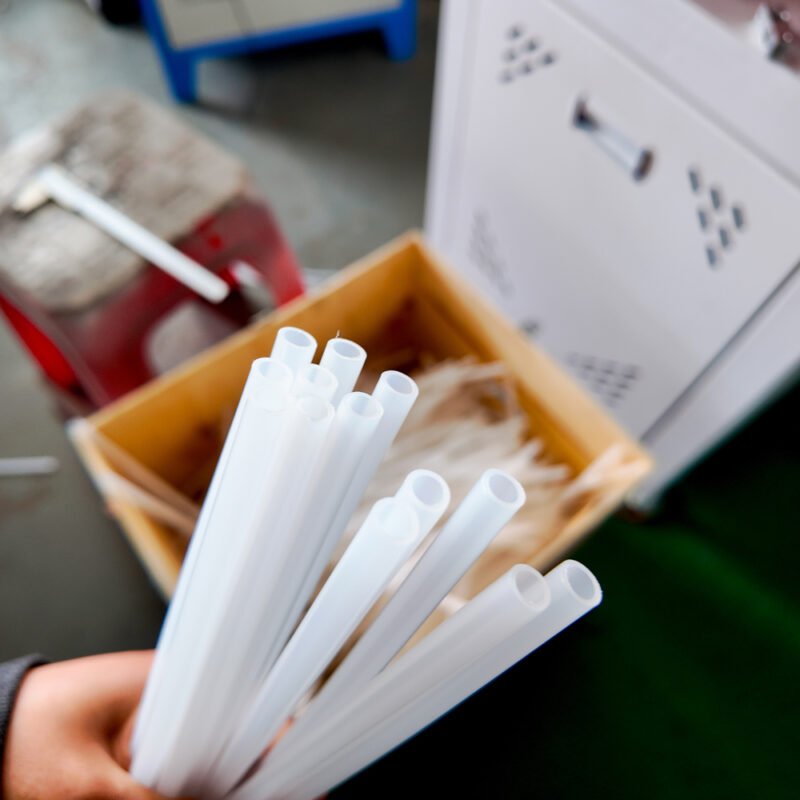

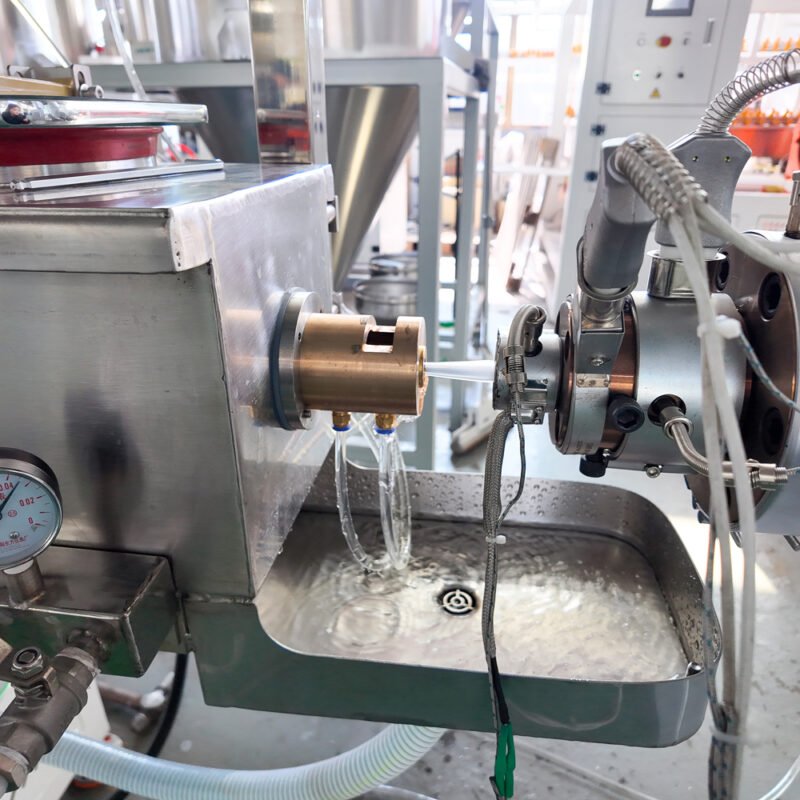

LLDPE and PCT compatible tooling with S316H cores and brass sizers, water-cooled molding for smooth inner wall and uniform OD.
Multi-fiber polyurethane haul-off belts (80 mm) provide soft yet firm clamping, avoiding surface marks.

Smart Control & Easy Operations

Siemens/Mitsubishi PLC options with intuitive HMI, recipe memory, alarm diagnostics, and one-click start/stop.
Modular layout with 1000±50 mm center height and right-to-left operation for ergonomic line setup and maintenance.
Automatic vacuum loader (QX-300) and stainless-steel hopper (QX-25) improve feeding stability and minimize contamination.

Application Areas

Cross-Industry Use

Building & Construction: protective small tubing, cable guiding straws, flexible sleeves.
Furniture & Home: decorative small tubes, packaging straws, organizers.
Automotive: fluid indicator straws, wire harness small sleeves, ventilation capillaries.
Consumer Goods: beverage straws, craft straws, disposable packaging tubes.
Medical & Laboratory (per material compliance): sample capillaries, guide tubes.
Electronics: insulation micro-tubes, sensor protection sleeves.

Technical Specifications

Core Parameters

Materials: LLDPE, PCT
Product sizes: OD 8×6 mm (LLDPE), 8×6 mm / 9.5×7.5 mm (PCT)
Output: 10–40 kg/h
Center height: 1000±50 mm
Line power: 32 kW, 380 V / 50 Hz, three-phase
Utilities: Cooling water ≤20°C ≥0.3 MPa; compressed air 1 m³/min ≥0.6 MPa

Equipment Configuration

Extruder: QX-SJ50/28, 22 kW servo motor, L/D 28:1, 38CrMoAlA screw/barrel, 4 heating zones (8.8 kW), forced air cooling
Tooling: S316H die & core, brass sizer, water-cooled, spiral flow for uniform melt
Vacuum Sizing & Cooling: QX-SC4500, 304 SS tank (4500×230×235 mm), vacuum pump 1.5 kW, precision vacuum/flow control, pre-cooling inlet
Haul-off & Cutting: QY-CM1200, dual servo motors, planetary gearboxes, rotary knife 1.8 kW, adjustable clamping
Post-Processing: Manual chamfering (QX-75M, 1.1 kW), manual slit/opening (QX-OM, 1.8 kW, V-knife)
Feeding: QX-300 vacuum loader (300 kg/h), QX-25 SS hopper (25 kg)
Chiller: JLSF-5HP, R22, 14.2 kW nominal, air-cooled, multi-protection alarms

Energy & Control

Optimized energy usage per kg output via servo synchronization and smart temperature zoning
PLC/HMI: Mitsubishi/Siemens, Schneider/Delixi electrical components, comprehensive alarms and data logging
