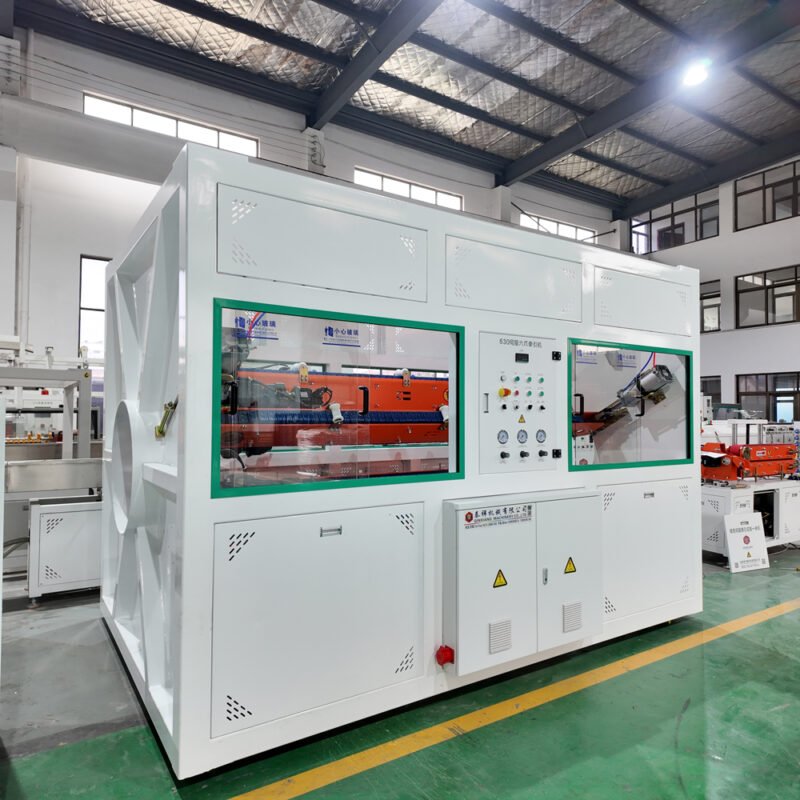

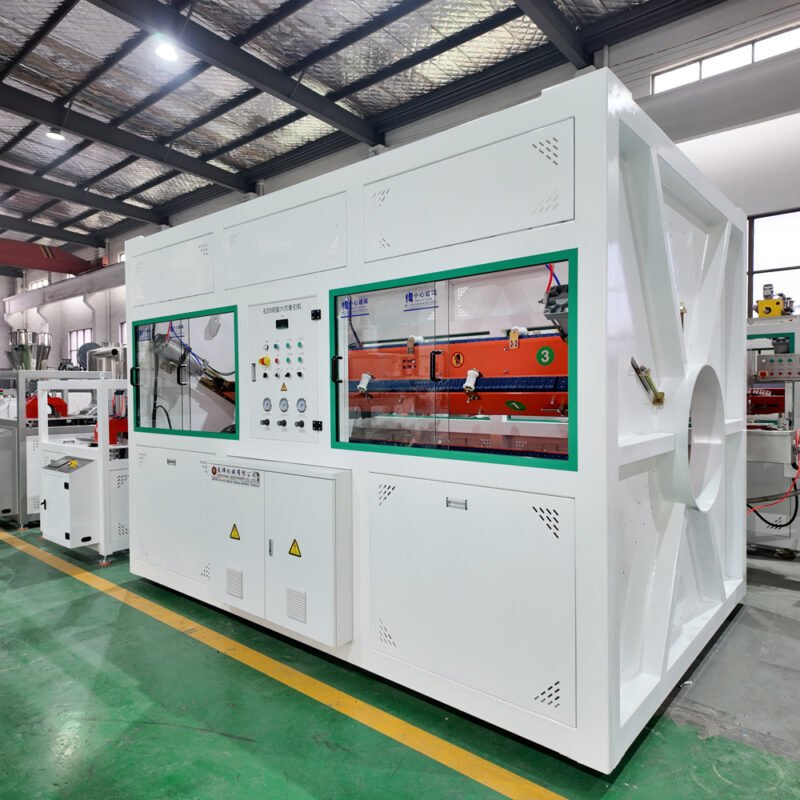

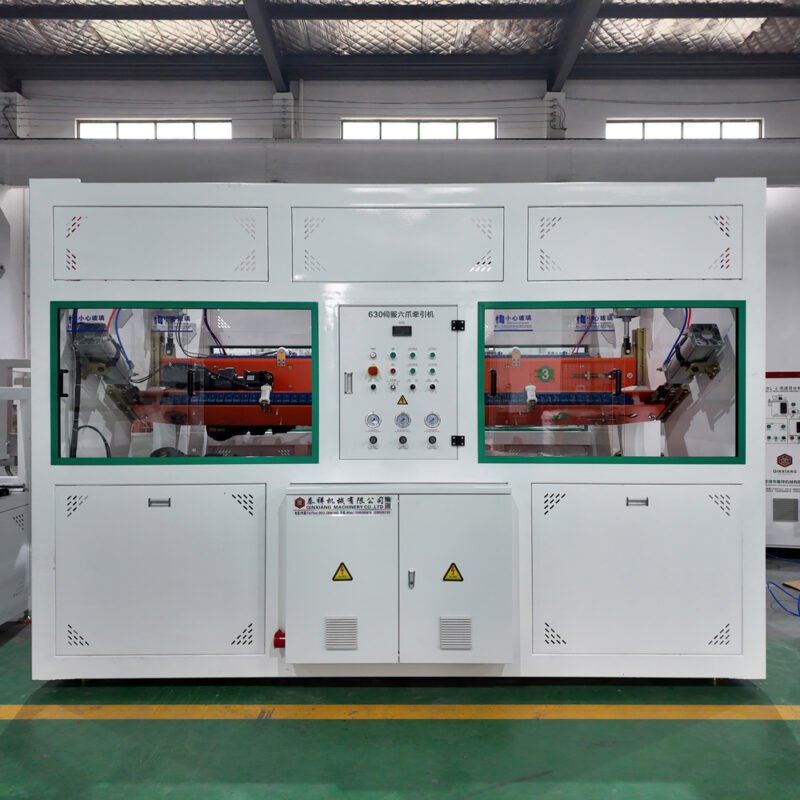

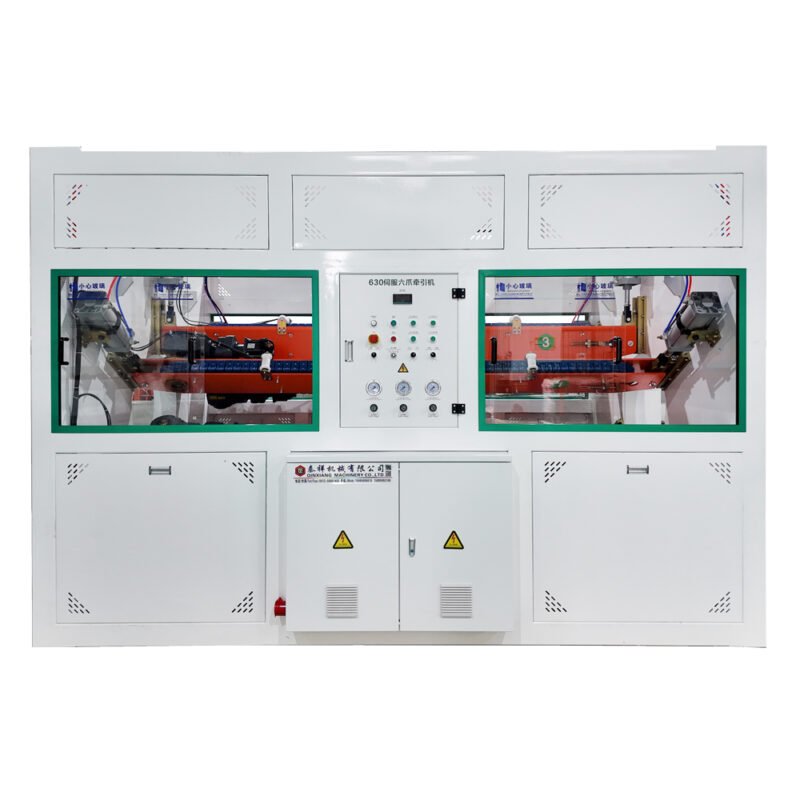

Servo Six-Claw Pipe Haul-Off Machine

Product Features

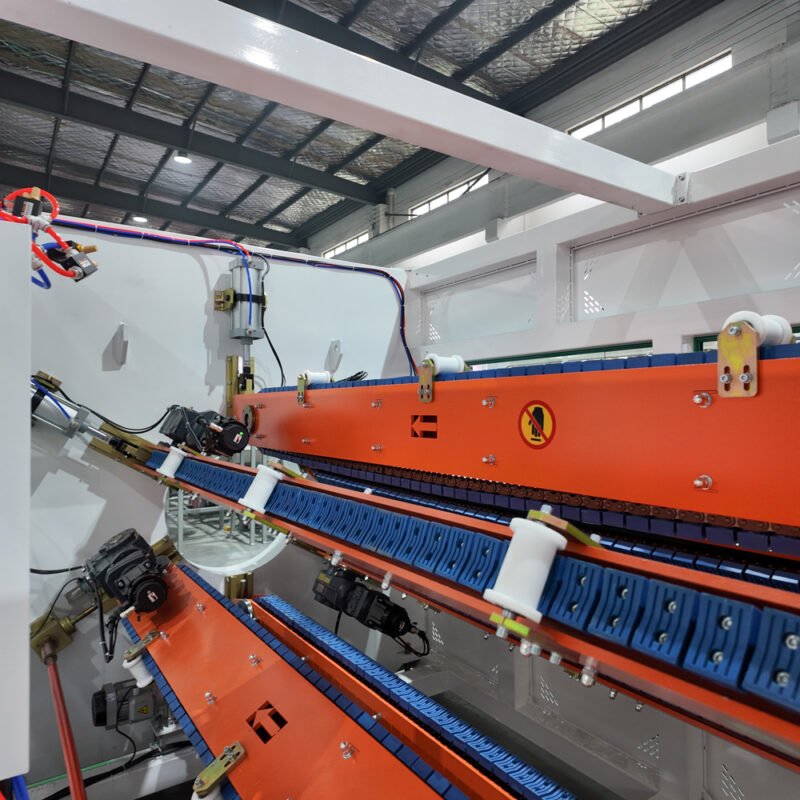

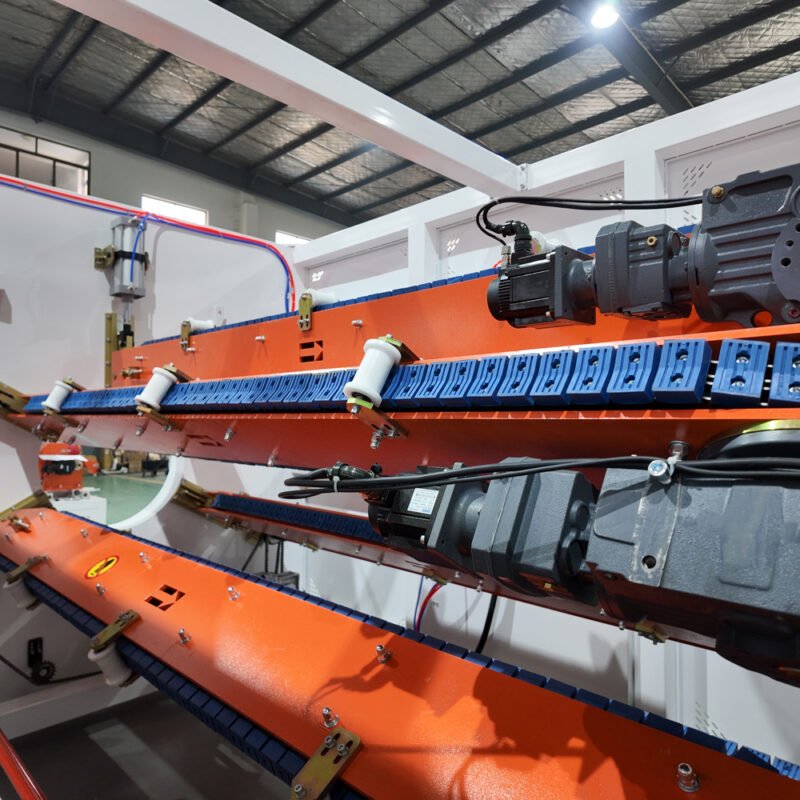

Precision Traction with Six-Claw Synchronization

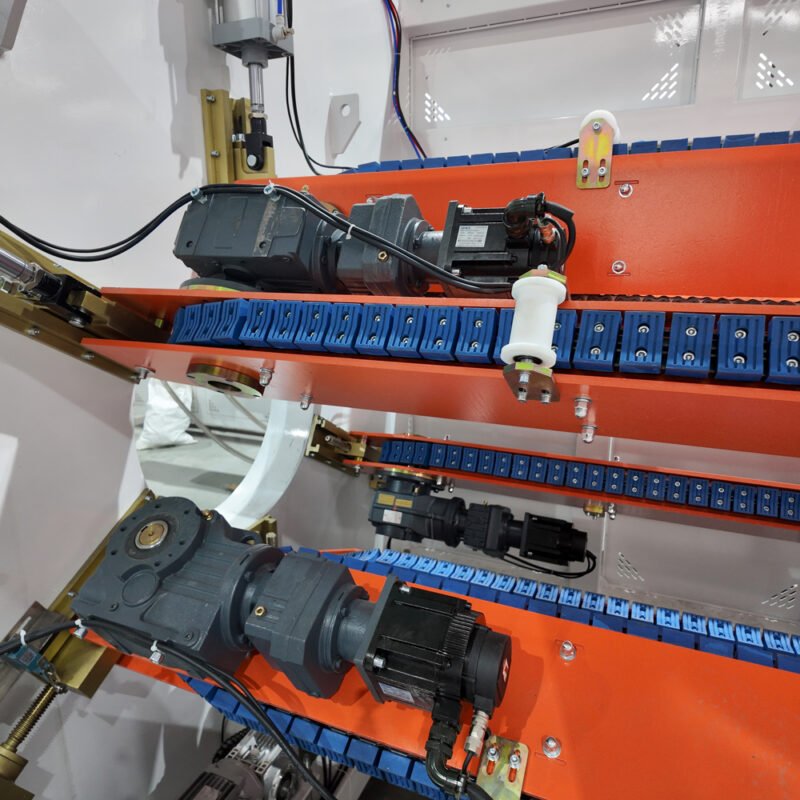

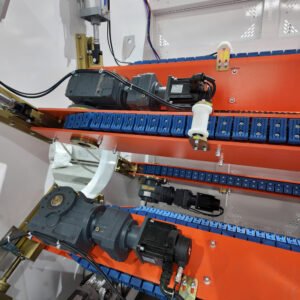

• Each claw is driven by a high-torque servo motor for independent, closed-loop control, ensuring uniform gripping force and zero slippage across the pipe circumference.
• Electronic cam and vector synchronization maintain consistent line speed and tension, minimizing ovality and wall-thickness variation.

Wide Material Compatibility and Gentle Handling

• Optimized for PVC, CPVC, PE, HDPE, PPR, PB, PEX, and multilayer composite pipes.
• Large-area, wear-resistant rubber pads and adjustable contact geometry reduce surface marking while maximizing frictional traction.

Modular, Heavy-Duty Construction

• Rigid, vibration-damped frame with linear guideways ensures long-term alignment and low maintenance.
• Quick-change pad modules and tool-free jaw adjustment accelerate product changeovers.

Smart Control and Industry 4.0 Integration

• PLC + HMI with recipe management, digital torque control, and real-time monitoring (speed, tension, power).
• Supports OPC UA/MQTT for MES/SCADA connectivity; remote diagnostics and alarm analytics cut downtime.

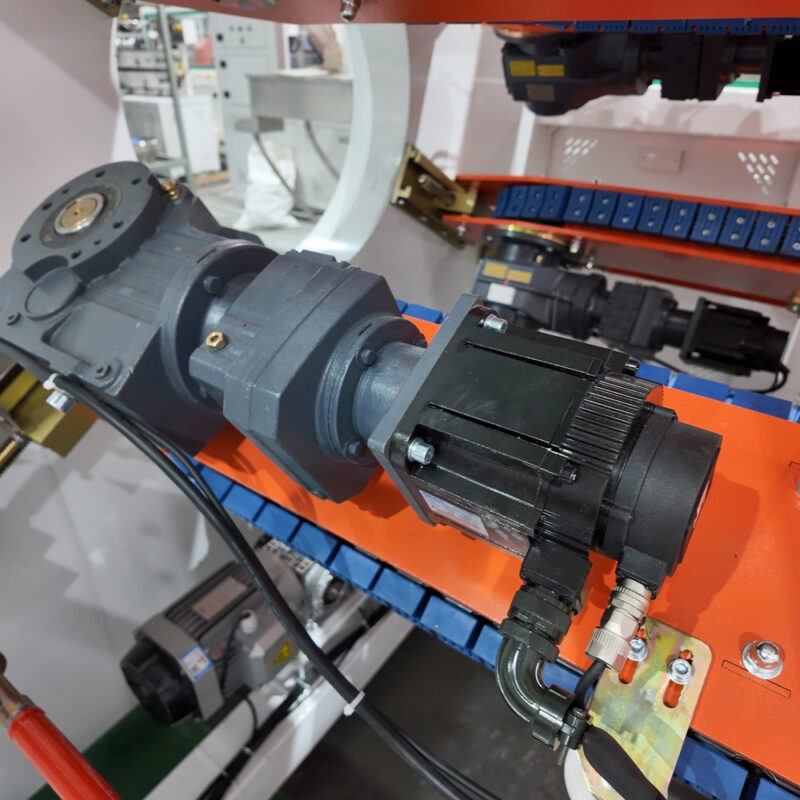

Energy-Efficient Drive Technology

• High-efficiency servo drives with regenerative braking reduce energy consumption by 15–30% vs. AC inverter systems.
• Adaptive traction algorithms automatically tune speed and pressure to product diameter and material.

Clean, Quiet, and Safe Operation

• Low-noise servo actuation and fully enclosed safety guards.
• Conforms to CE/UL safety directives; integrated emergency stop and over‑torque protection.

Application Fields

Building & Infrastructure

• PVC/CPVC water supply and drainage pipes, conduit, cable protection, sewer and stormwater pipelines, irrigation lines.

Furniture & Home

• Decorative profiles, lightweight tubing for shelving and frames, HVAC condensate lines.

Automotive & Transportation

• Fuel and vapor lines (PE/PA composites with suitable pads), washer fluid tubes, protective cable ducts.

Industrial & Energy

• Compressed air lines, chemical process pipes (material-dependent), protective sleeves for wires and sensors.

Agriculture & Landscaping

• Drip irrigation, sprinkler systems, and micro-tubing requiring stable traction at small diameters.

Technical Specifications

Performance and Capacity

• Pipe diameter range: 10–250 mm (custom options available to 315 mm).
• Line speed: up to 0.5–30 m/min (material- and diameter-dependent).
• Traction force: up to 30 kN combined (six-claw), continuously adjustable.
• Speed stability: ±0.2% with closed-loop servo control.
• Ovality control support: synchronized with extrusion, calibration, and sizing tanks.

Mechanical and Drive Configuration

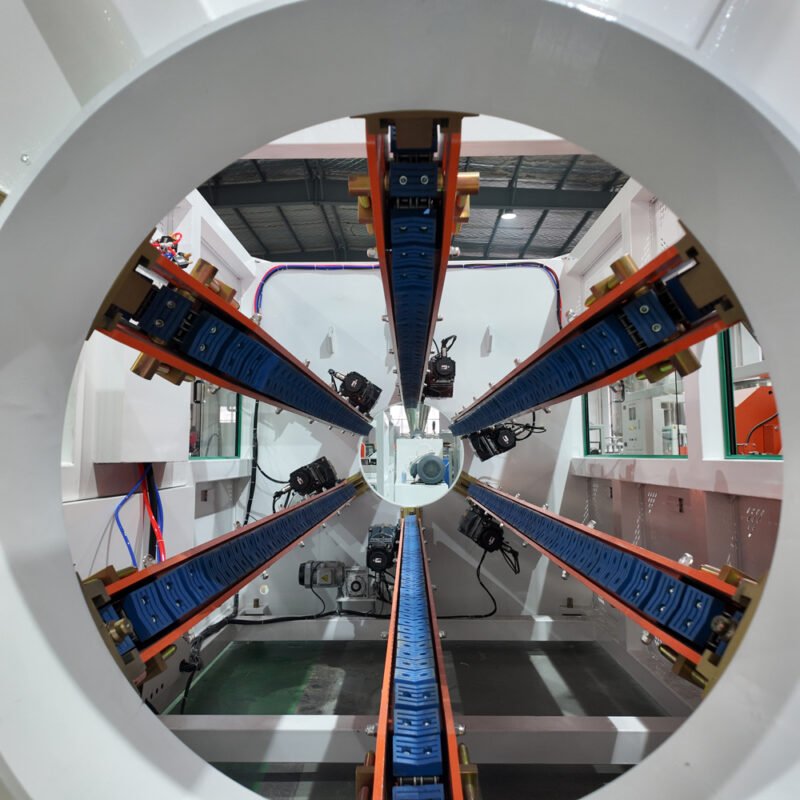

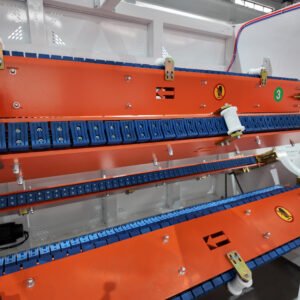

• Claw count: 6 (servo-driven, independent control).
• Contact length per claw: 200–1000 mm, modular.
• Pad material: oil-resistant EPDM/NBR, high-friction rubber, or polyurethane; food-grade options on request.
• Frame: welded steel with finite-element optimized stiffeners; linear guides for vertical alignment.

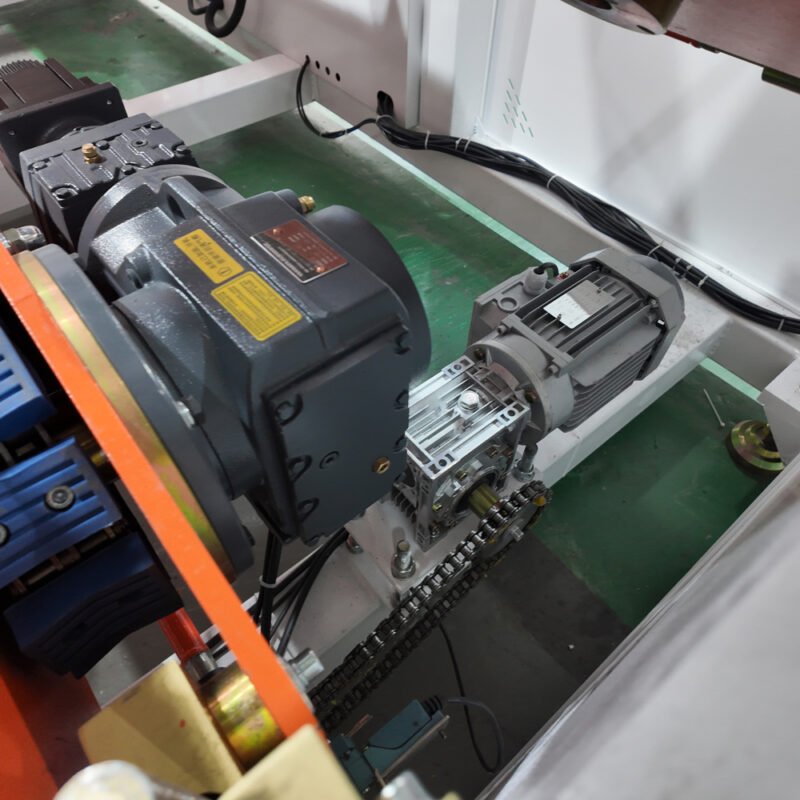

• Adjustment: motorized center height and jaw opening for fast diameter changes.

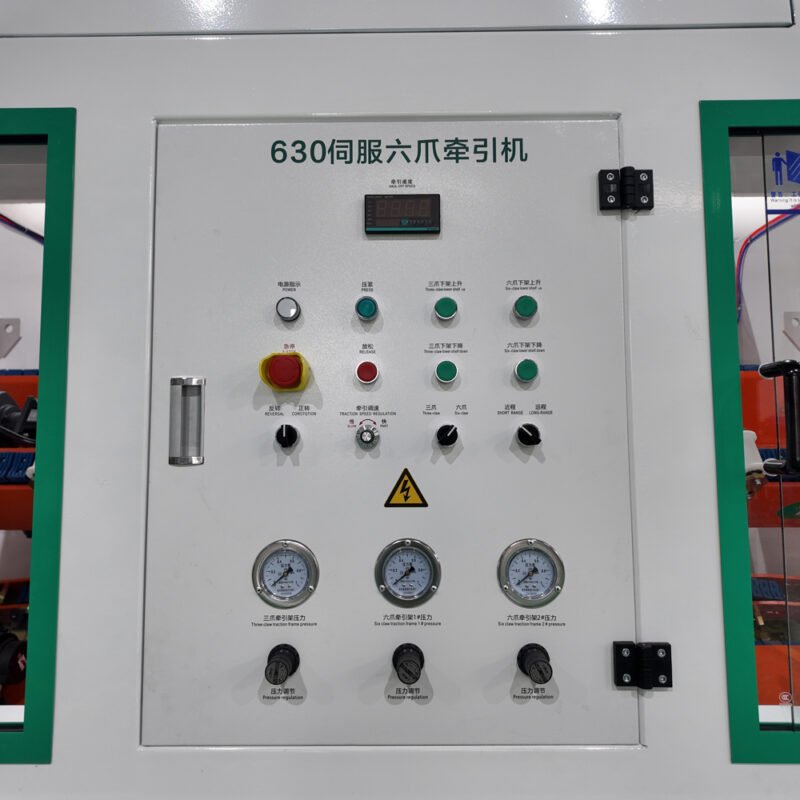

Control and Connectivity

• Controller: industrial PLC with 10–12″ touchscreen HMI.
• Interfaces: OPC UA, MQTT, Modbus TCP; encoder inputs for line synchronization.
• Data: production recipes, runtime KPIs, energy logs, event/alarm history.

Energy & Utilities

• Power supply: 380–480 V, 50/60 Hz, three phase.
• Installed power: 8–18 kW (configuration-dependent); typical running power 3–9 kW.
• Pneumatics (if equipped for clamping assist): 0.4–0.6 MPa.

Safety & Compliance

• CE/UL compliant; Category 3 PL d safety circuits.
• Guarding: full enclosure with interlocks, emergency stops front and rear.

User Recognition

Proven in High-Mix, High-Volume Lines

• Building materials manufacturer increased line speed by 18% while reducing scrap by 22% on 110–160 mm PVC pipes due to improved traction stability.
• Automotive supplier achieved scratch-free surface quality on thin-wall PE tubes, enabling a 30% reduction in downstream rework.

Consistent ROI and Uptime

• Average payback within 12–18 months driven by energy savings, lower maintenance, and faster changeovers.
• Remote diagnostics reduced unplanned downtime by up to 25% through predictive alerts and quick parameter optimization.

Customer Feedback Highlights

• “Uniform grip without deformation across the diameter range.”
• “Recipe-based setup cut changeover time from 45 to 15 minutes.”
• “Energy consumption decreased noticeably at the same throughput.”
