Servo Belt Haul-Off Machine & Servo Puller Cutter Combination

A comprehensive product overview for manufacturers seeking high-precision, energy-efficient solutions in extrusion lines. This page introduces our servo belt haul-off machine and our integrated servo puller cutter (puller-cutter), highlighting key features, applications, technical specifications, and customer success—optimized with relevant keywords for Google indexing.

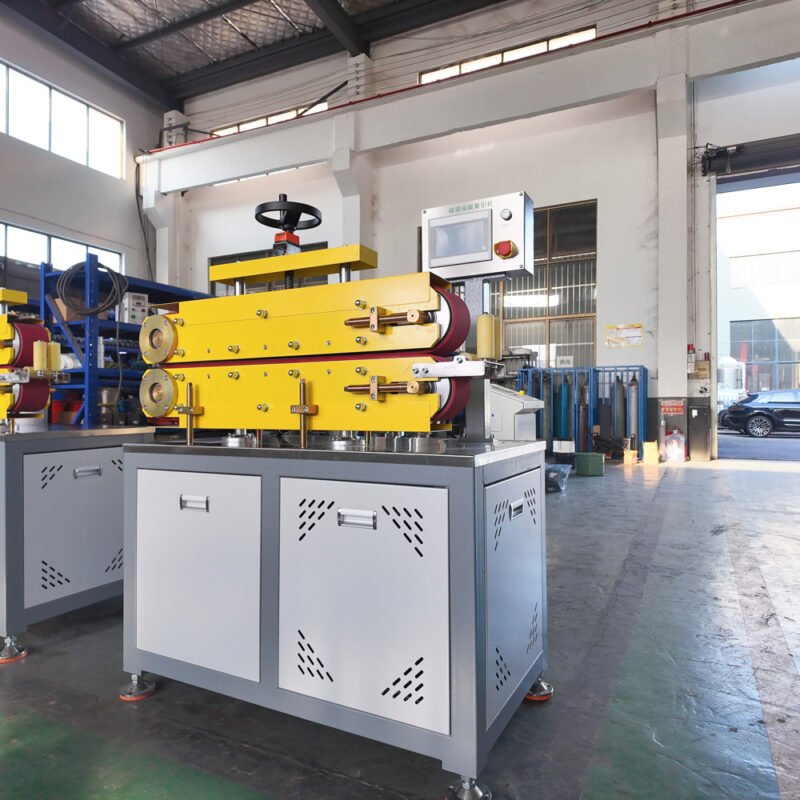

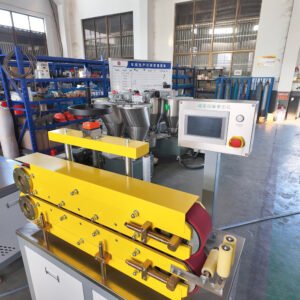

Servo Belt Haul-Off Machine (Servo Belt Puller)

Overview

Engineered for consistent traction and precise speed synchronization, the servo belt haul-off machine ensures stable extrusion downstream handling for pipes, tubes, and profiles. With closed-loop servo control, wide traction belts, and low-noise operation, it delivers excellent surface finish and dimensional accuracy across diverse materials.

Key Features

Precision Traction and Speed Control

• Closed-loop servo system with encoder feedback for constant speed and torque control.
• Synchronous dual-belt design (caterpillar-type puller) minimizes slippage for soft and rigid materials.
• High-precision length stability for inline measurements and downstream processes.

Material Compatibility and Surface Protection

• High-friction, wear-resistant rubber belts or silicone belts for PVC, PE, PP, PEX, PU, nylon, silicone tube, wire/cable sheathing, and soft profiles.

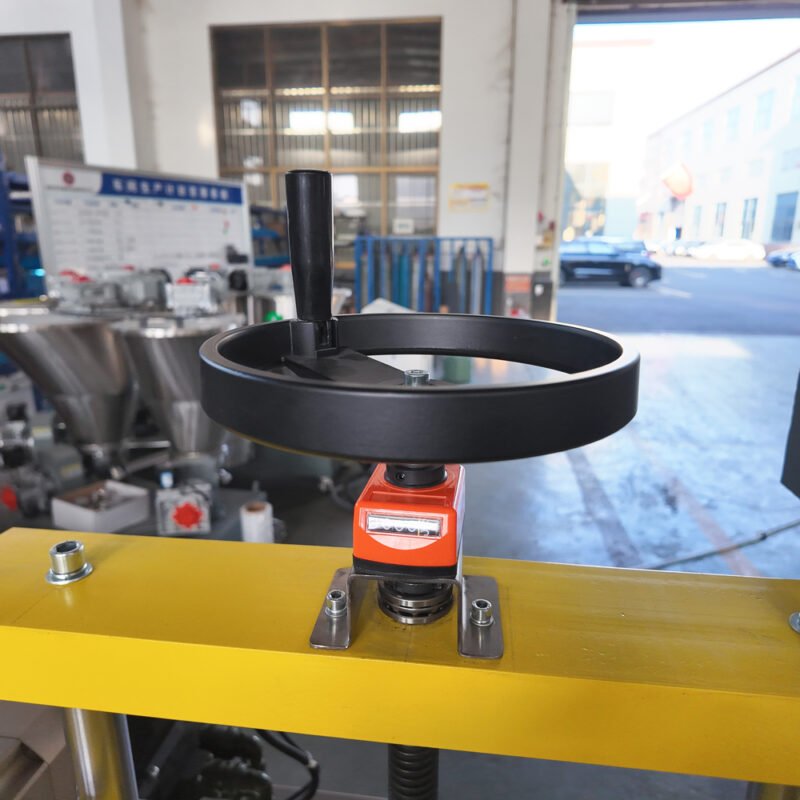

• Adjustable belt pressure for delicate surfaces; optional soft belt for medical tubing.

Energy Efficiency and Low Noise

• High-efficiency servo drive reduces energy consumption by 10–30% vs. conventional inverters.
• Optimized drive transmission and noise-damping frame for quiet operation on the shop floor.

Smart Control and Easy Maintenance

• Touch-screen HMI with recipe storage, digital speed/traction display, and quick belt change design.
• Modular structure with maintenance-friendly access, CE-compliant safety guards.

Typical Applications

Construction and Infrastructure

• PVC/PE pipe extrusion haul-off for water supply, drainage, conduit, and cable protection.

Furniture and Decorative Profiles

• WPC/PVC profiles, skirting boards, trims, and door/window seals.

Automotive and Appliance

• Nylon and PU tubes, wire/cable coating, small hoses and protective sleeves.

Medical and Industrial Tubing

• Silicone and medical-grade tubing where smooth traction and stable OD are critical.

Technical Specifications

Production Capacity

• Line speed: 0.1–60 m/min (optional up to 100 m/min for small tubing).
• Traction force: 1–10 kN depending on belt width and model.
• Belt contact length: 300–1200 mm for improved grip and dimensional stability.

Configuration

• Belt width options: 50–400 mm; dual-belt caterpillar traction.

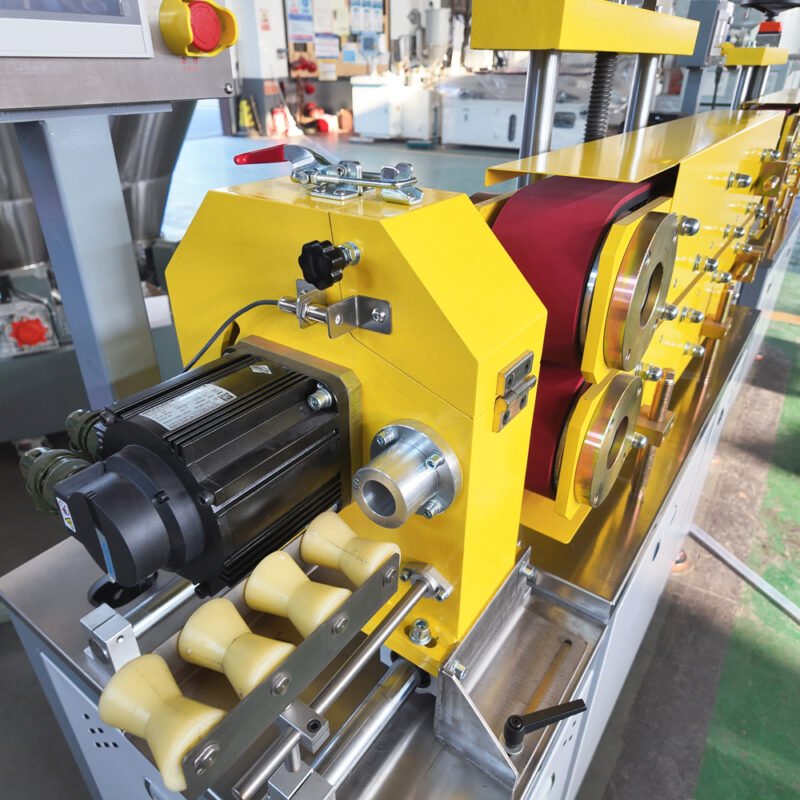

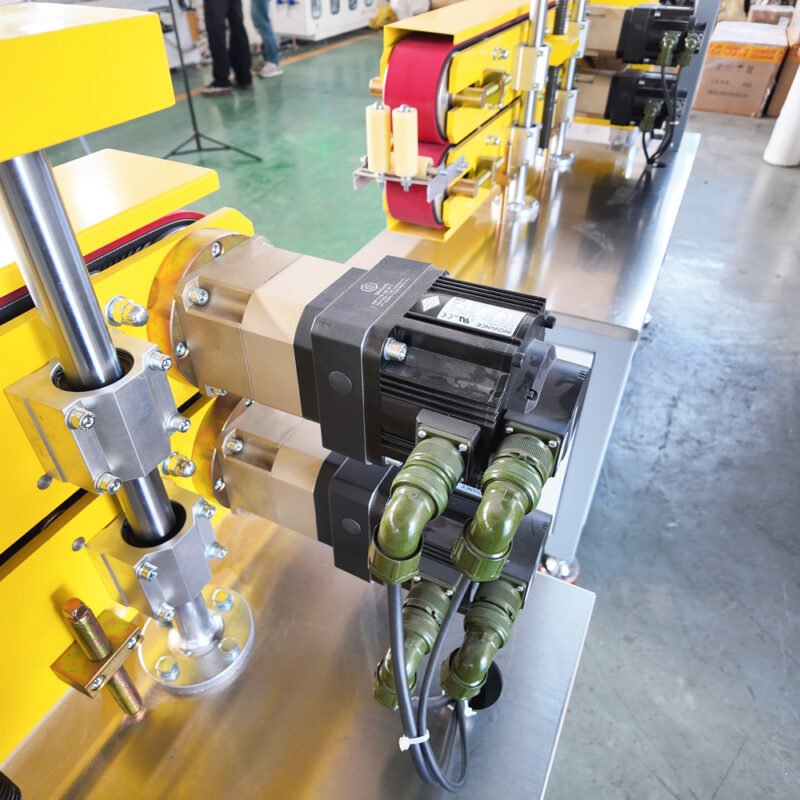

• Servo motor + drive: 1–7.5 kW; encoder feedback for closed-loop control.
• HMI/PLC: 7–10 inch touch screen, recipe management, alarm logs.

Energy and Utilities

• Power supply: 380–480 V, 3-phase, 50/60 Hz.
• Typical energy use: 0.8–4.5 kWh depending on speed and load.

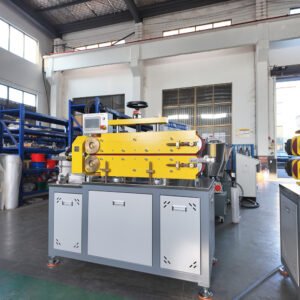

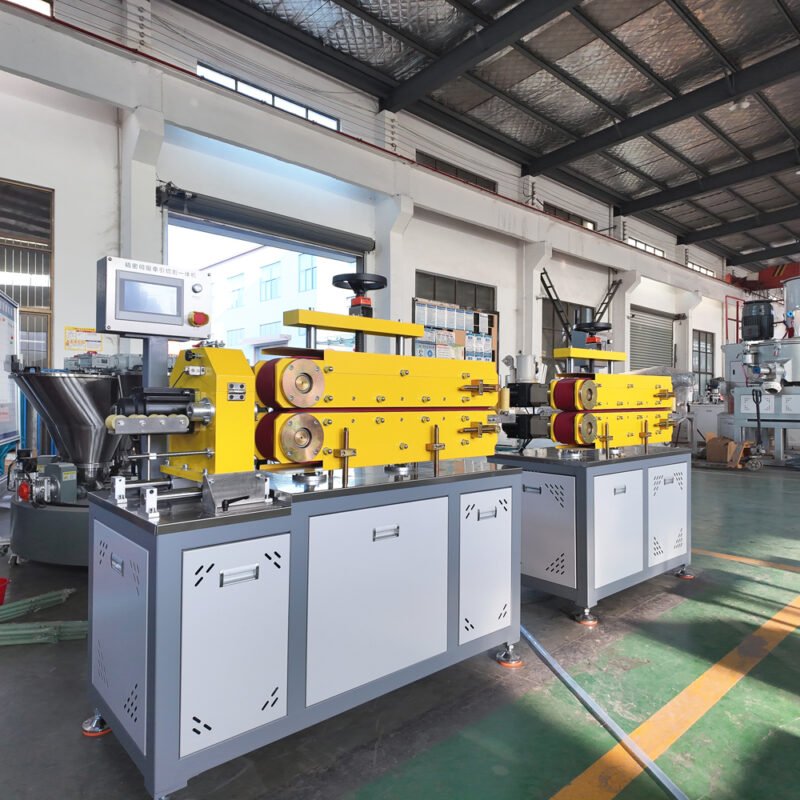

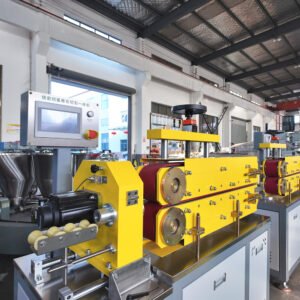

Servo Puller Cutter Combination (Servo Traction Cutter)

Overview

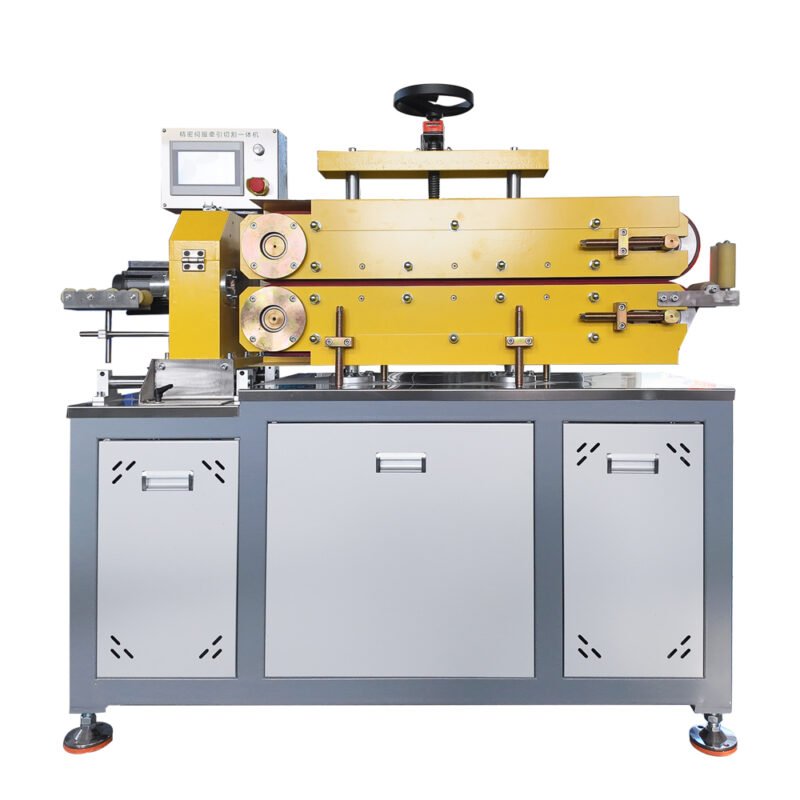

The servo puller cutter integrates a servo haul-off unit with an inline servo cutter to achieve synchronized traction and precise length cutting. Ideal for pipe and tube extrusion lines, it reduces floor space, improves length accuracy, and increases throughput with minimal dust and burrs.

Key Features

Integrated Puller + Cutter for Inline Precision

• Synchronized servo control keeps cutting length accurate within ±0.5–1.0 mm (material dependent).
• Real-time encoder tracking ensures cut-on-the-fly without stopping the line.

Flexible Cutting Technologies

• Guillotine, fly-knife, or chipless planetary cutter options based on diameter and wall thickness.
• Dust-free and burr-minimized cutting for medical and clean-room applications.

High-Speed, Stable Operation

• Continuous traction with dual-belt puller; low vibration cutting motion.
• Quick length setting, automatic batch counting, and scrap optimization.

Smart Automation and Safety

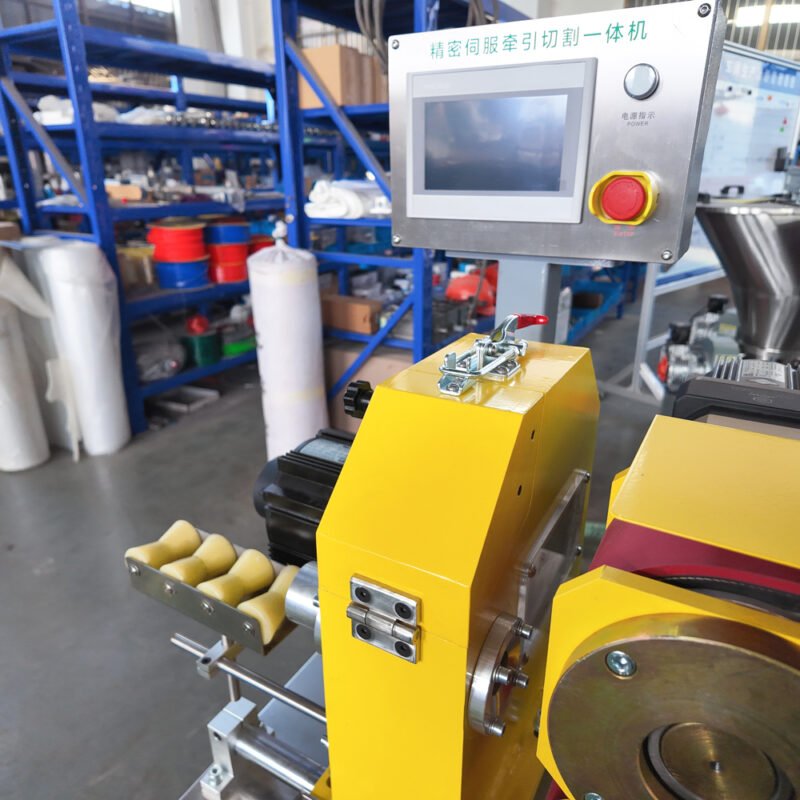

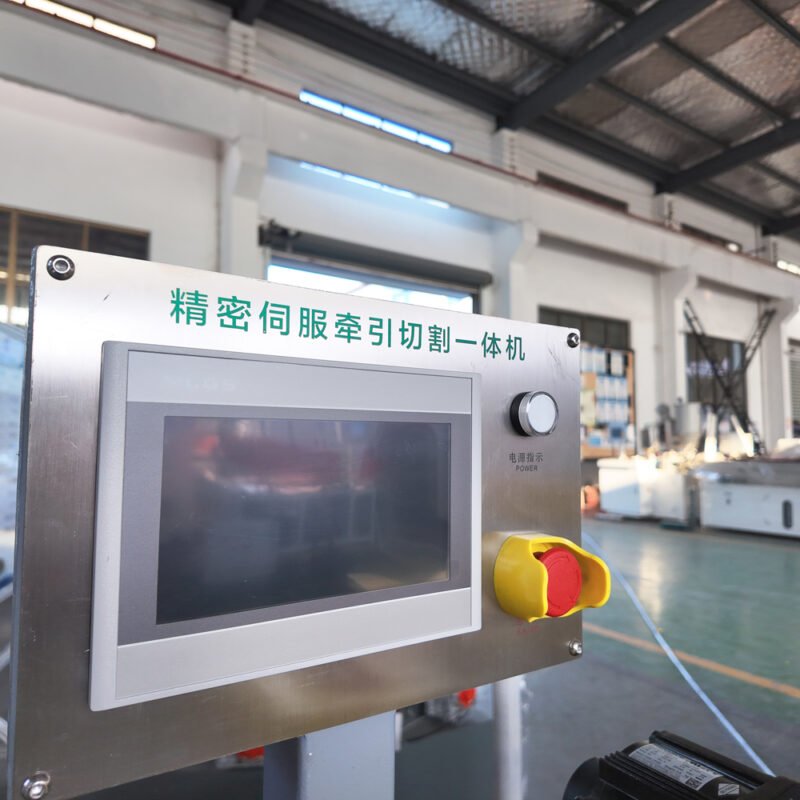

• Touch-screen HMI with programmable length, count, and cycle modes.
• CE-certified safety enclosures, emergency stops, and interlocks.

Advantages of the Servo Puller Cutter

Superior Length Accuracy and Yield

• Closed-loop length control reduces scrap, guarantees consistent piece length, and supports downstream packaging automation.

Space-Saving and Lower Total Cost

• Integrated design reduces footprint, wiring, and installation time; fewer interfaces mean less downtime.

Higher Throughput and Versatility

• Cut-on-the-fly at higher line speeds; supports a wide range of pipe/tube diameters and materials.

Cleaner Cuts and Better Surface Quality

• Optimized blade paths and speed matching minimize deformation and dust generation, improving product finish.

Typical Applications

Construction and Utilities

• PVC/PE/PP pipe cutting for plumbing, electrical conduit, and irrigation.

Automotive and Industrial

• Nylon, PU, and rubber hose lengths for fuel, pneumatic, and protective systems.

Medical and Consumer

• Silicone and soft tubing, small-diameter precision cuts for medical disposables and laboratory use.

Technical Specifications

Production Capacity

• Line speed (puller): 0.1–60 m/min; cutting cycle up to 60–120 cuts/min (model and length dependent).
• Length accuracy: ±0.5–1.0 mm typical with encoder synchronization.

Configuration

• Puller: dual-belt caterpillar, 50–300 mm belt width; servo motor 1–5.5 kW.
• Cutter types: guillotine (rigid profiles), fly-knife (thin-wall tubing), planetary (chipless for pipes).
• Sensors: encoder wheel or integrated encoder; optional laser length measurement.

Energy and Utilities

• Power supply: 380–480 V, 3-phase, 50/60 Hz.
• Typical total energy use: 1.2–6.5 kWh depending on speed and cutter type.
• Pneumatics: 0.5–0.7 MPa for blade actuation (if applicable).

Manufacturing Process and Quality

Materials and Build

• Heavy-duty welded frame with vibration damping for stable, quiet operation.
• Wear-resistant high-friction belts, precision-machined components, and balanced rotating parts.

Process Control and Traceability

• Digital recipe control for different materials and sizes.
• Data logging for speed, length, and alarms; optional OPC-UA/MQTT connectivity for MES/SCADA.

Safety and Compliance

• CE-compliant design with interlocks, light curtains (optional), and protective guards.
• Electrical standards: IEC/UL components available upon request.

User Recognition and Market Performance

Customer Feedback

• Pipe manufacturers report 1–2% scrap reduction and measurable improvements in length consistency.
• Medical tubing lines highlight smoother surfaces and reduced deformation at higher speeds.
• Integrators praise quick commissioning, intuitive HMI, and stable closed-loop performance.

Case Highlights

• Building materials factory: Upgraded to servo puller cutter, increased throughput by 18% and reduced maintenance by 25%.
• Automotive hose supplier: Achieved ±0.7 mm length accuracy over 10,000-piece batches, enabling automated packaging.
• Medical device OEM: Dust-free cutting solution met clean-room standards with minimal particulates.

Why Choose Our Solutions

Innovation and Competitiveness

• Advanced servo algorithms and precise encoder feedback deliver industry-leading traction stability.
• Integrated puller-cutter minimizes footprint and maximizes uptime, offering rapid ROI.
• Modular configurations and wide material compatibility align with diverse market needs.
