PVC Window and Door Profile Extrusion Line

PVC Window and Door Profile Extrusion Line

A high-efficiency, precision-engineered PVC window and door profile extrusion solution designed for modern manufacturing. This system integrates advanced compounding, twin-screw extrusion, vacuum calibration, haul-off, and cutting to deliver stable output, consistent dimensions, and superior surface finish—optimized for scalability, energy efficiency, and low total cost of ownership.

Product Features

Unique Advantages

• High output stability and dimensional accuracy powered by a conical twin-screw extruder (SJSZ65/132) with optimized screw geometry and multi-zone temperature control.
• Consistent material plastication via SRL300/600 high-speed hot-cold mixer, enabling uniform dispersion of additives and colorants.

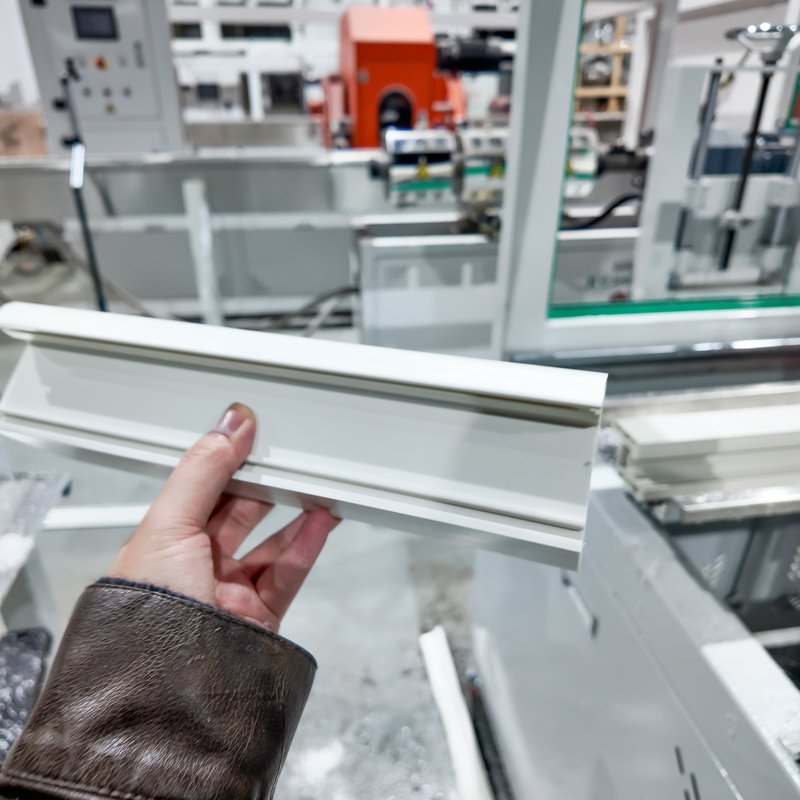

• Rapid vacuum calibration with hot/cold water separation, delivering faster shaping, reduced shrinkage, and smooth surface finish.
• Intelligent frequency control for main and auxiliary drives (Yaskawa), ensuring precise speed synchronization across feeding, extrusion, haul-off, and cutting.

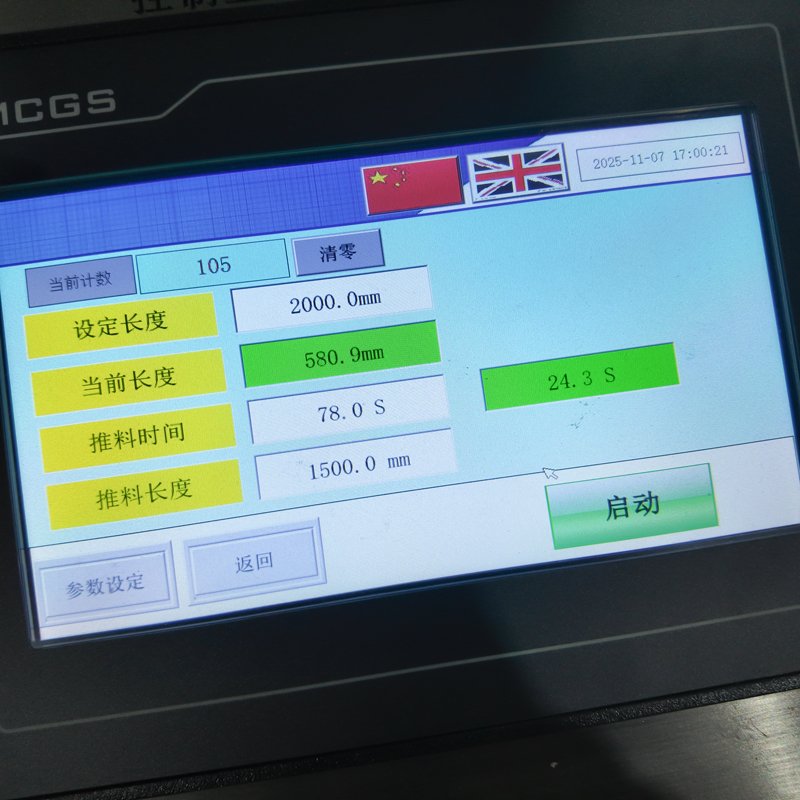

• Robust PLC + HMI control with modular electrical cabinets for intuitive operation, quick diagnostics, and safer maintenance.

Material Characteristics

• Supports rigid PVC (uPVC) formulations with stabilizers, impact modifiers (e.g., CPE/ASA), and UV/weathering packages.
• Excellent thermal stability, corrosion resistance, and flame retardancy suited for exterior applications.

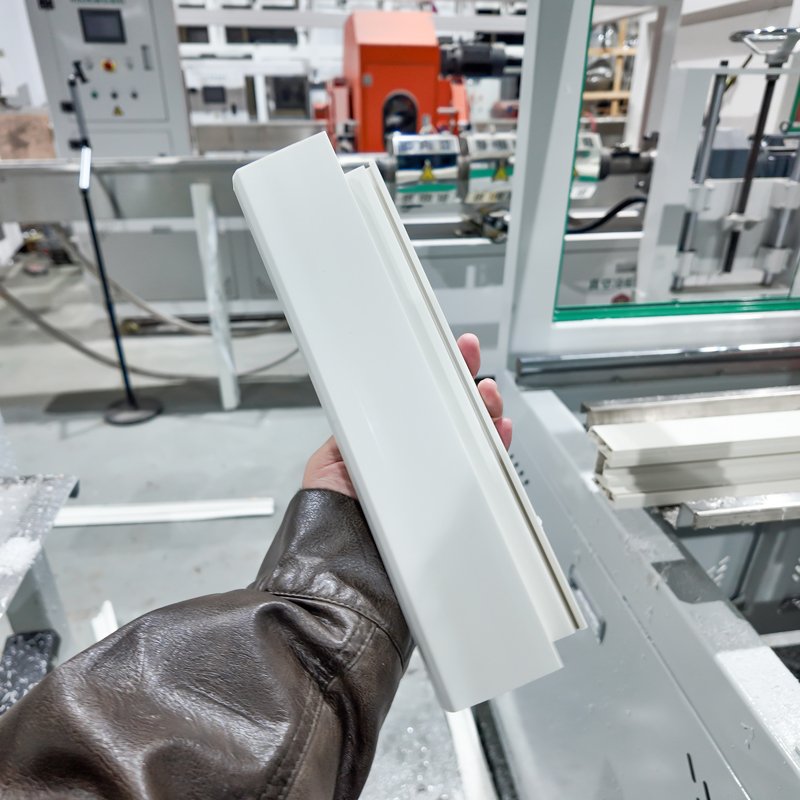

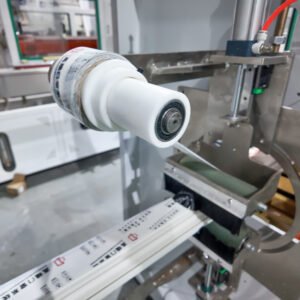

• Compatible with co-extrusion for gaskets or surface layers; optional embossing/film lamination modules available.

Production Process

• Automated feeding and compounding → twin-screw extrusion and melt homogenization → vacuum calibration and water cooling → synchronized haul-off → precision lift-saw cutting → stack and inspection.
• Closed-loop process control minimizes variation and ensures repeatable quality across batches.

Application Areas

Building & Construction

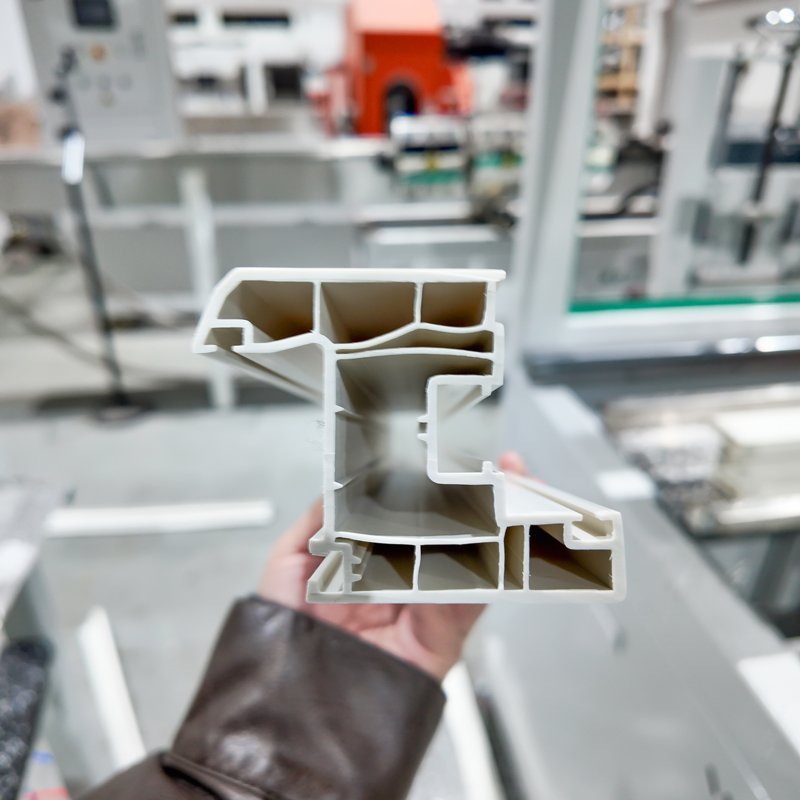

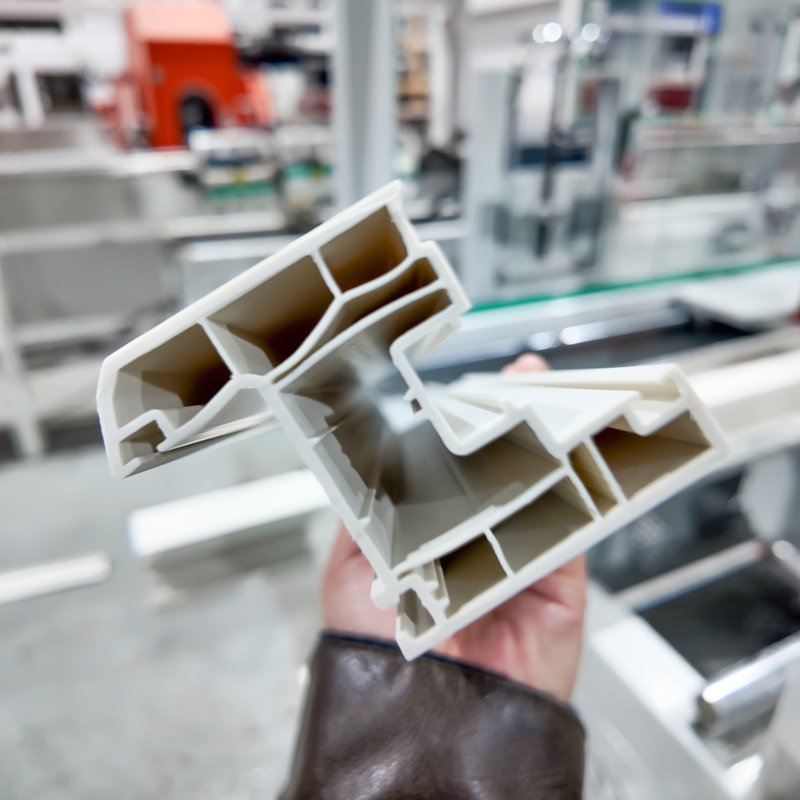

• Window frames, door frames, mullions, sashes, and glazing beads for residential and commercial facades.
• Exterior trim, cladding profiles, shutters, and decking accessories.

Furniture & Interior

• Decorative edging, skirting, corner trims, cable management profiles, and partition systems.

Automotive & Transportation

• Sealing carriers, interior trim strips, cable conduits, and lightweight protective profiles.

Industrial Utilities

• Cable trays, protective channels, and custom structural profiles for equipment enclosures.

Technical Specifications

Core Performance

• Output capacity: 100–250 kg/h (typical line rate with SJSZ65/132).
• Center height: 1000 ± 50 mm; left-to-right operation.
• Total installed power: approx. 140 kW; 380V/50Hz, three-phase.

Equipment Configuration

• Spiral loader + push-type feeder; SRL300/600 hot/cold mixer.
• T38 twin-screw feeder; SJSZ65/132 conical twin-screw extruder.
• SJ35 single-screw auxiliary extruder (co-ex profiles/seals).

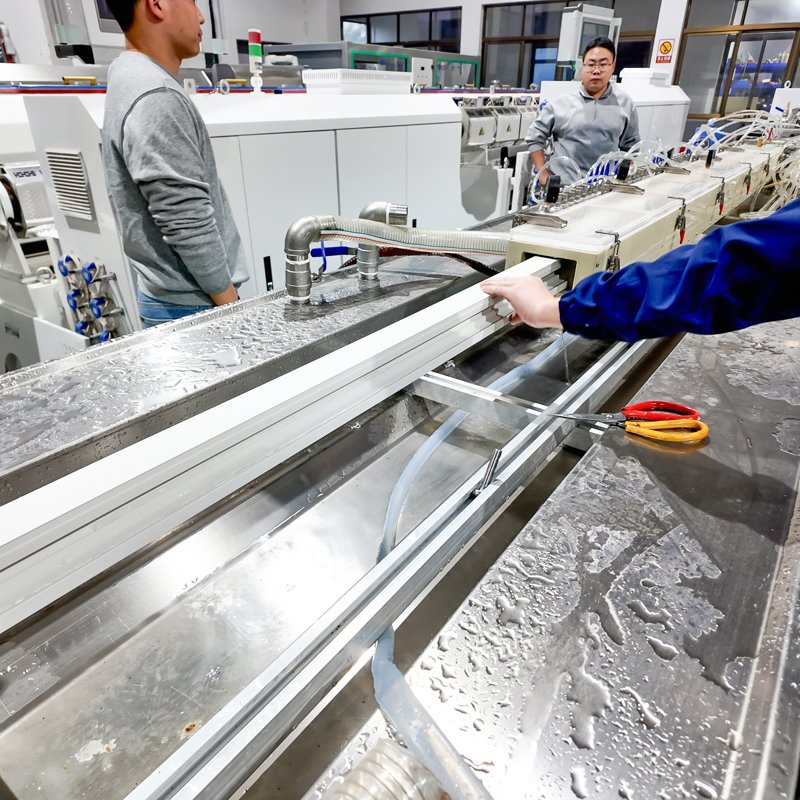

• 6 m vacuum calibration table with multi-pump vacuum/water system.

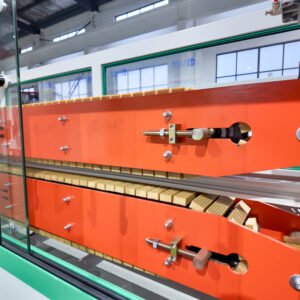

• Dual-caterpillar haul-off with independent drives for upper/lower belts.

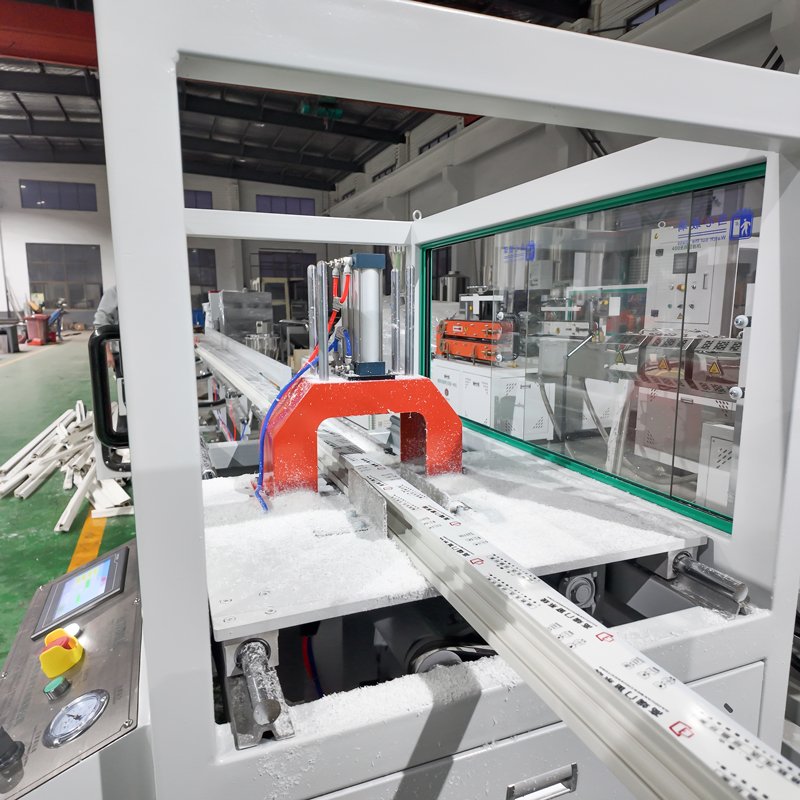

• Lift-saw cutting unit with PLC/HMI and dust extraction.
• 5 m discharge/stacking rack.

Energy & Utilities

• Cooling water: ≤20°C, ≥0.3 MPa; segregated hot/cold circuits for faster throughput.
• Compressed air: ≥0.6 MPa, approx. 1 m³/min.
• Intelligent VFD control reduces energy consumption and mechanical wear.

User Recognition

Customer Feedback

• Reported dimensional consistency within tight tolerances, reduced scrap rates, and improved surface aesthetics.
• Operators praise the intuitive controls and quick recipe changeovers.

Case Highlights

• Regional window manufacturers improved line efficiency by 18–25% after upgrading to conical twin-screw + optimized vacuum calibration.
• Export customers noted faster commissioning and stable performance under diverse PVC formulations.

Market Performance

• Strong adoption in construction supply chains and OEM furniture programs due to reliability, scalable output, and competitive lifecycle costs.
