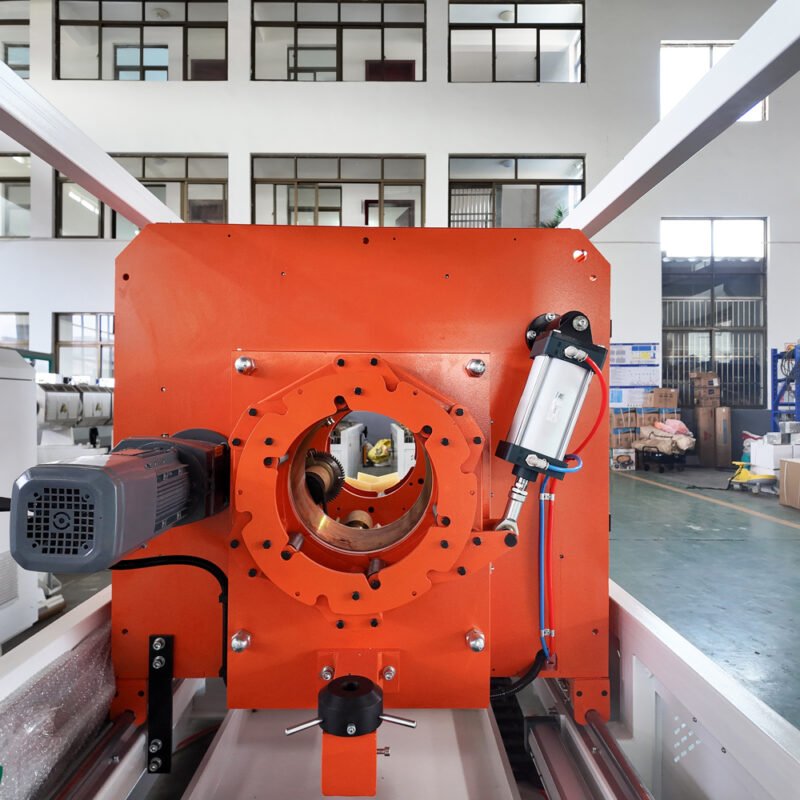

Planetary Pipe Cutting Machine for PVC/PE – High-Precision Orbital Cutting Solutions

Product Details

PVC Pipe Ring Cutter (Orbital)

Optimized for rigid PVC/UPVC pipes; achieves square, chip-free cuts via synchronized planetary motion and ring blade engagement.

PE Pipe Planetary Cutter

Engineered for HDPE/LDPE/MDPE; high torque and servo synchronization maintain roundness and eliminate deformation for thick-wall pipes.

PP/PB/PERT/PEX Planetary Cutter

Wide compatibility for hot and cold water pipe systems; supports online beveling and chamfering to reduce secondary processing.

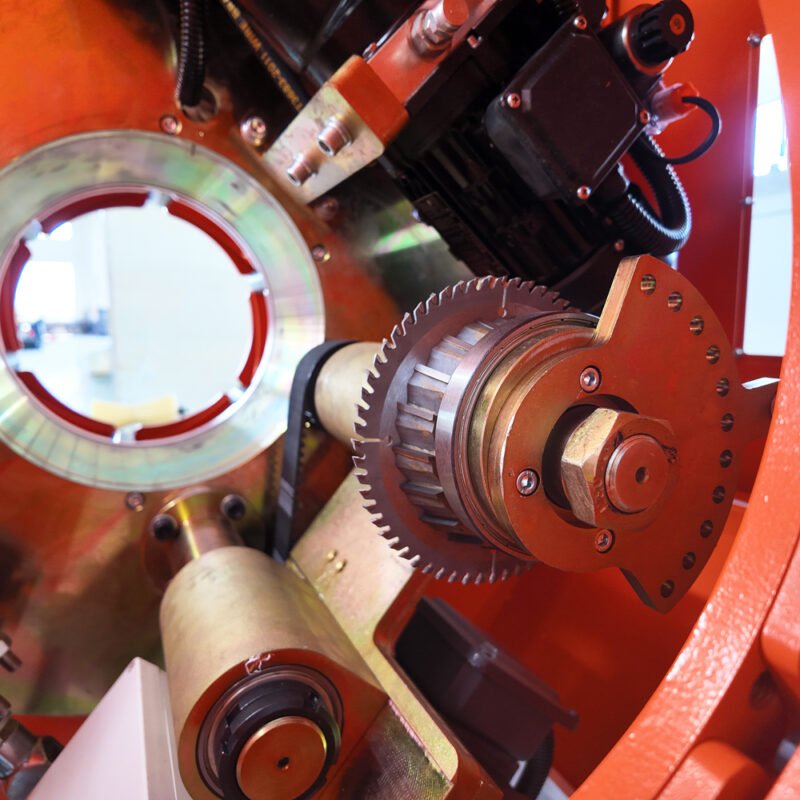

Multi-Layer Composite Pipe Planetary Cutter

For EVOH/Al-plastic and fiber-reinforced tubes; controlled feed minimizes delamination and ensures stable cut edges.

Stainless/Alloy Thin-Wall Tube Orbital Cutter (Optional)

Dedicated configuration with hardened tooling for precise orbital cuts on thin-wall metal tubes in special applications.

Key Features

True Planetary Orbit Cutting

• The cutter head revolves around the pipe circumference while the blade rotates on its axis, ensuring perpendicular, smooth, and burr-minimized cuts.

Broad Material Compatibility

• Handles PVC, PE, PP, PB, EVOH, composite, and optional thin-wall metal tubes with application-specific blade geometries and speeds.

Clean, Chip-Free Cutting

• Optimized tool path and blade angles deliver dust-reduced cuts; optional vacuum chip extraction keeps production lines clean.

Smart Control & Automation

• PLC + HMI with recipe management, auto diameter recognition, and closed-loop servo control for synchronization with extrusion haul-offs.

Robust Build & Safety

• Rigid frame, precision linear guides, and enclosed cutting chamber with interlocks; CE-compliant safety systems.

Energy-Efficient Drive System

• High-efficiency servo drives and optimized pneumatic assistance reduce energy consumption per cut while maintaining high throughput.

Easy Integration

• Standard communication protocols and mechanical interfaces for plug-and-play integration with existing extrusion lines and downstream equipment.

Application Fields

Construction & Infrastructure

• Water supply, drainage, conduit, and ducting pipes; reliable square cuts for consistent socketing and coupling.

Furniture & Interior Decor

• Plastic and composite tubes for frames, trims, and profiles with high surface quality cuts.

Automotive & Transportation

• Fluid transfer lines, protective conduits, and lightweight structural tubes with tight tolerance ends.

Electrical & Cable Conduit

• Precise cutting for PVC/PE conduits, minimizing burrs and preventing cable abrasion.

Water & Gas Distribution

• HDPE/MDPE pressure pipes with clean cut faces for leak-proof welding and connections.

Industrial Processing

• Chemical, agricultural, and process piping where repeatable, clean cuts reduce rework and assembly time.

Technical Specifications

Capacity & Performance

• Pipe outer diameter range: 16–1200 mm (configurations by model)
• Wall thickness capability: up to 120 mm (material dependent)
• Line speed sync: up to 25 m/min (typical), higher on request
• Cutting cycle time: 4–15 s (OD and wall thickness dependent)
• Cutting accuracy: ±0.2–0.5 mm (typical for plastic pipes)
• Perpendicularity: ≤0.2–0.5 mm per 100 mm OD
• Surface finish: burr-minimized, chamfer option 15°–45°

Configuration

• Drives: multi-axis servo (orbit, feed, rotation), with closed-loop control
• Control system: PLC + 7–12″ HMI, recipe storage, fault diagnostics
• Tooling: ring blades / insert blades (HSS, carbide, coated)
• Clamping: automatic multi-point clamping with soft jaws to prevent deformation
• Sensing: OD sensors, length encoders, end-stop verification
• Safety: interlocked enclosure, e-stop, overload protection, CE-compliant

Energy & Utilities

• Installed power: 4–22 kW (model and OD range dependent)
• Air supply: 0.6–0.8 MPa (for pneumatic assist and safety systems)
• Power supply: 380–480 V, 50/60 Hz, three-phase (customizable)

Integration & Options

• Communication: Modbus/TCP, Profinet (optional), digital I/O handshake
• Options: online chamfering/beveling, vacuum chip extraction, automatic OD changeover, remote diagnostics

User Recognition

Proven in Global Extrusion Lines

• Builders report up to 30% reduction in post-cut finishing when switching from saws to orbital cutters on PVC mains.

Increased Throughput, Lower Scrap

• An automotive supplier achieved a 22% throughput increase and 15% scrap reduction on HDPE conduits with closed-loop servo synchronization.

Consistent Joint Quality

• Municipal water projects noted improved weld consistency on thick-wall PE pipes due to perpendicular, clean cut faces.

High Customer Satisfaction

• 96%+ on-time performance and repeat orders from pipe manufacturers seeking cleaner cuts, faster changeovers, and lower operating costs.
