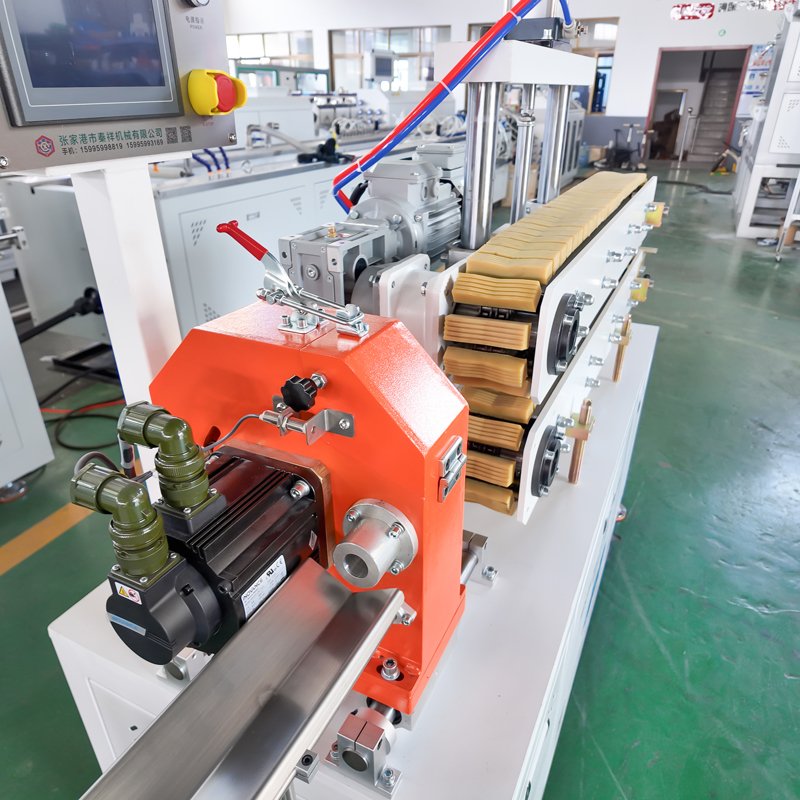

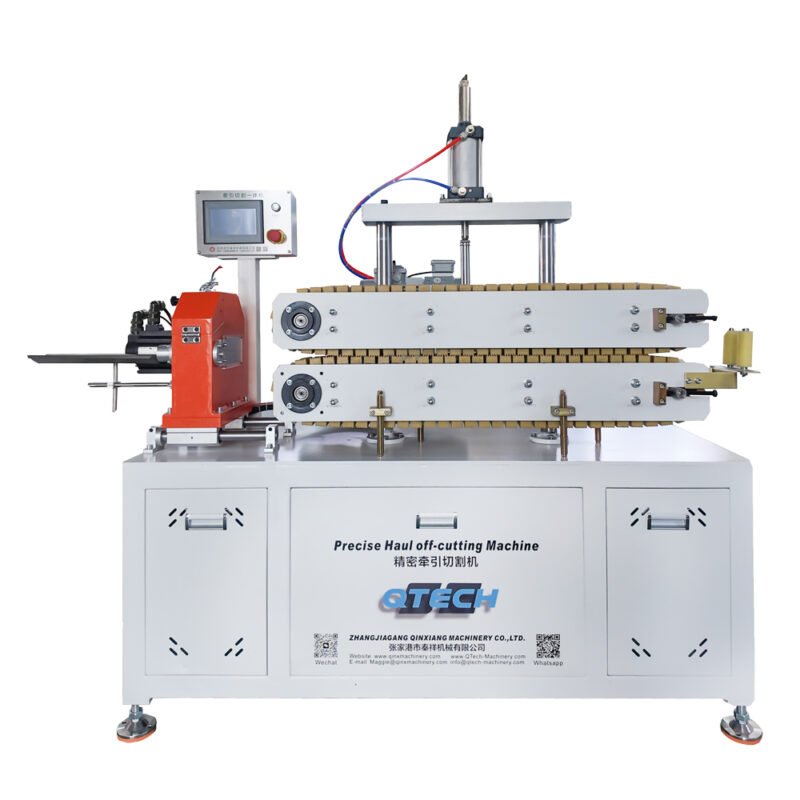

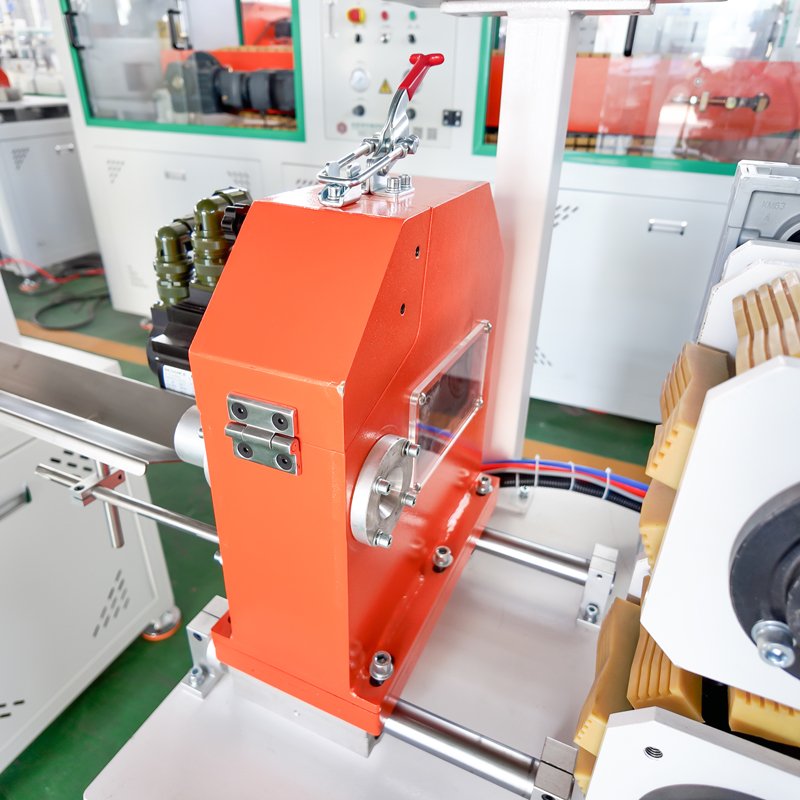

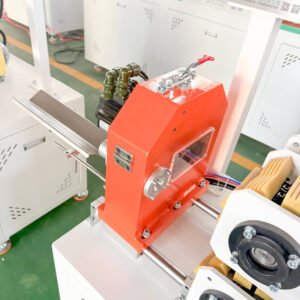

Integrated Haul‑Off and Cutting System for Small Pipes & Profiles

Integrated Haul‑Off and Cutting System for Small Pipes & Profiles

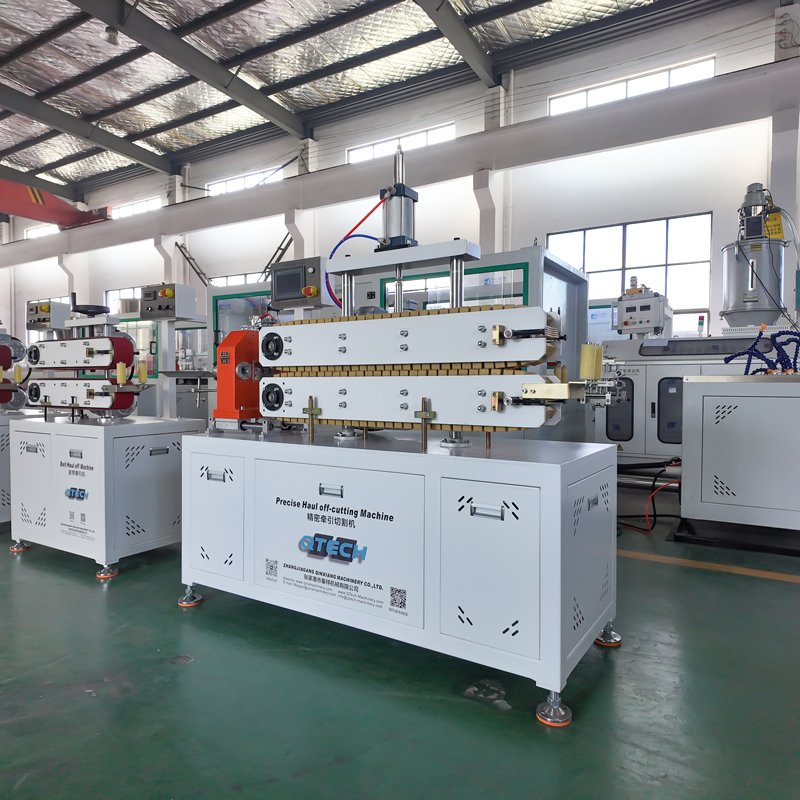

This integrated downstream unit combines a precision belt haul‑off with a compact cutting station to handle small‑diameter plastic pipes and intricate profiles. Built around high‑grip, non‑marking belts and coordinated motion control, it sustains steady traction and executes clean, repeatable cuts. The system supports PVC, PP, PE, PA, TPE micro‑sections and can be tailored with chipless, planetary, or saw cutting to suit product geometry and wall thickness.

Product Features

What Sets It Apart

• Unified motion architecture: haul‑off and cutter share timing references, enabling phase‑aligned pulls and cuts that prevent tension oscillations and length drift.
• Gentle but firm traction: silicone or polyurethane belt covers with optimized wrap angle deliver strong grip without imprinting or scuffing glossy surfaces.
• Adaptive cut sequencing: selectable cutting strategies with programmable dwell, blade speed, and clamp timing for thin‑wall tubes and delicate profiles.
• Precision nip mechanics: fine‑step pressure regulation protects lightweight sections from deformation while maintaining line speed stability.
• Fast format changes: tool‑less belt cassette and quick‑release cutter tooling reduce changeover minutes, enhancing multi‑SKU agility.

Materials & Process Insight

• Polymer scope: PVC/uPVC, PP, PE, PA, TPE/TPV, co‑extruded micro‑profiles.
• Heat management: heat‑tolerant belt covers and controlled acceleration/deceleration avoid melt smears and chatter marks.
• Finish quality: tuned kinematics and belt path minimize print lines, ensuring consistent cosmetic appearance on visible trims.

Application Areas

Construction

• Micro conduits, irrigation capillaries, glazing beads, sealing carriers, window/door trim inserts, edge and corner protection profiles.

Furniture & Interior

• Cable trunking, slim skirting, appliance fascia strips, cabinet trims, decorative mini‑profiles for fixtures.

Automotive & Transport

• Washer/vacuum micro‑tubes, wire harness protectors, interior trim carriers, sensor sleeves, lightweight clips for EV/ICE platforms.

Industrial & R&D

• Instrumentation tubing, pneumatic micro‑lines, pilot/R&D profiles, OEM specialty sections with tight dimensional requirements.

Technical Specifications

Performance & Range

• Line speed capability: 0.4–25 m/min (extended options available).
• Product window: typical pipe OD 2–35 mm; analogous cross‑sections for compact profiles.
• Length precision: encoder‑managed cutting achieves ±0.5–0.9 mm typical deviation based on material and speed.

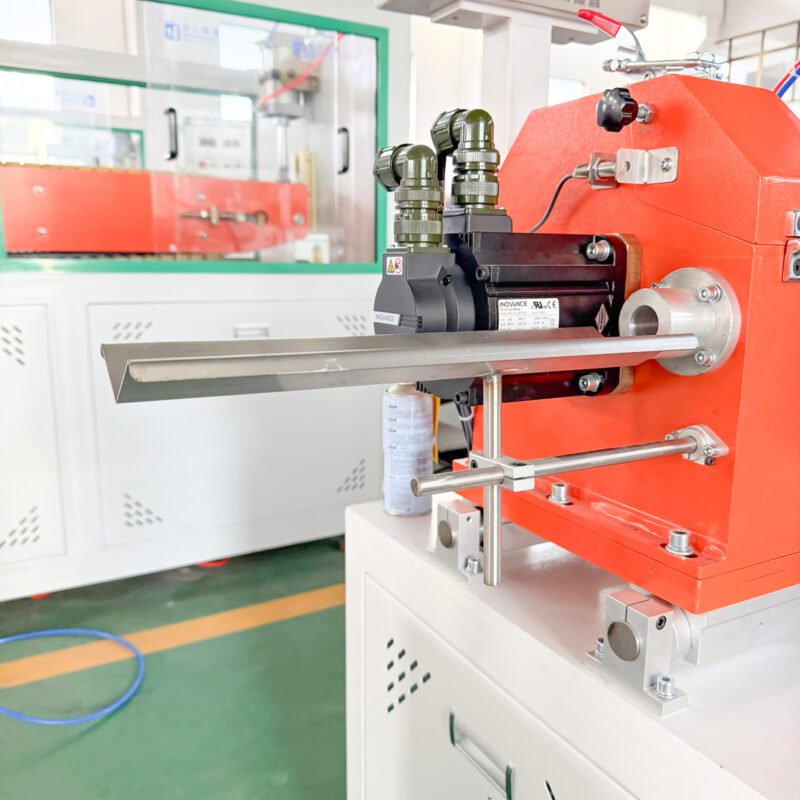

Traction & Drives

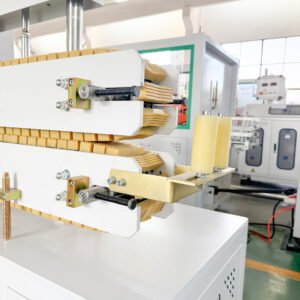

• Dual endless belts with adjustable contact length; PU/silicone covers, optional heat‑resistant formulations.
• Independent servo or high‑resolution vector drives with electronic gearing and slip compensation.
• Nip actuation: pneumatic with precision regulator; optional closed‑loop nip feedback and digital display.

Cutting & Control

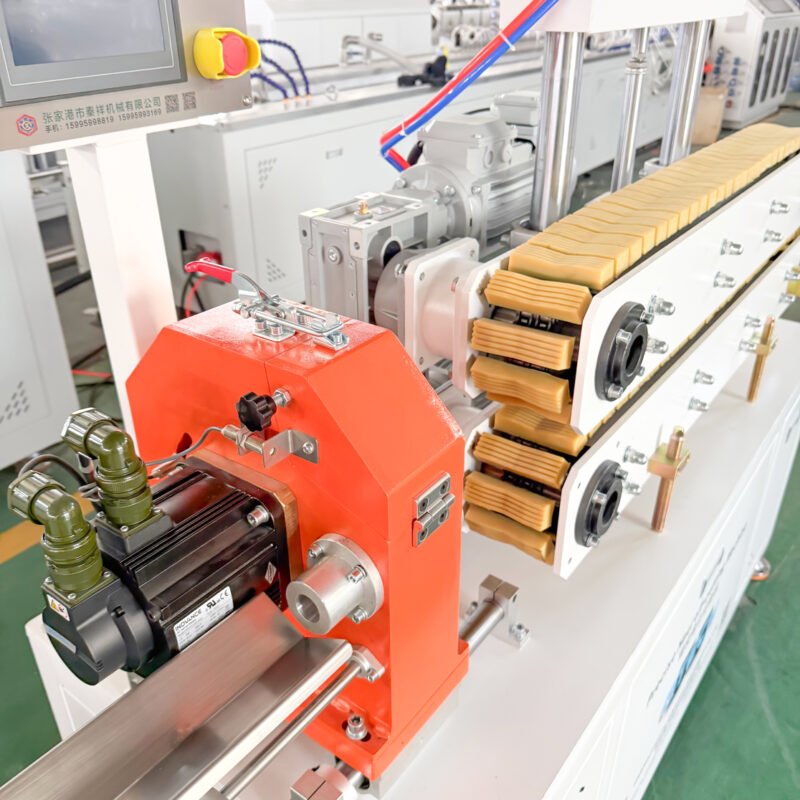

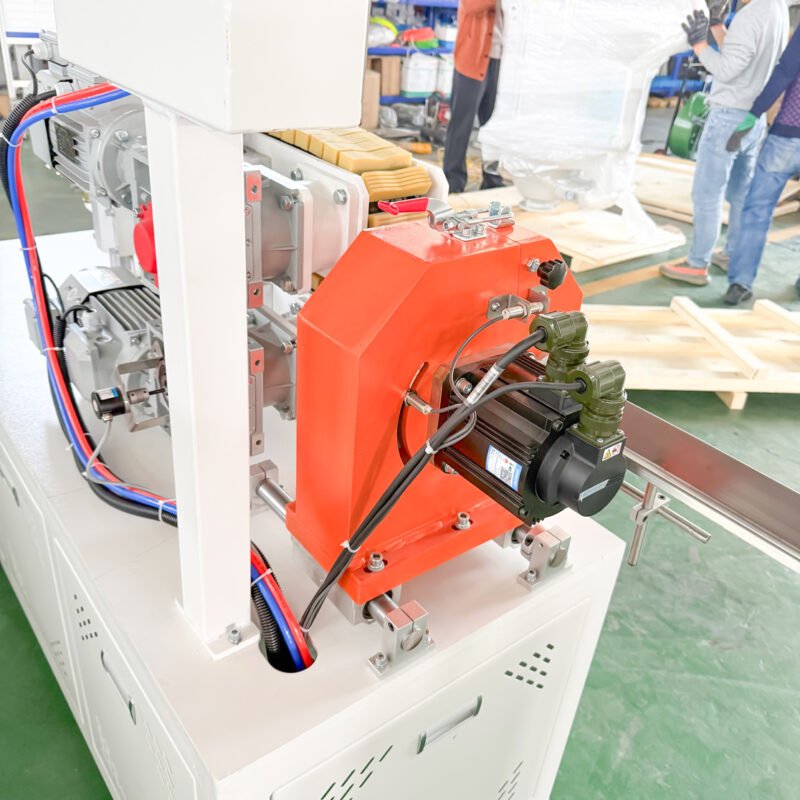

• Cutting choices: chipless (dust‑free), planetary (round tubes), circular saw (rigid profiles), each with quick‑swap tooling.
• PLC/HMI with recipe library, line‑speed following (analog/pulse), encoder cut‑length control, and alarm diagnostics.
• Safety: interlocked guards, emergency stops, cutter door sensors, low‑noise drivetrain.

Energy & Utilities

• Installed power: 2.2–5.2 kW total (haul‑off + cutter, configuration dependent).
• Electrical: 380–460 V, 3‑phase, 50/60 Hz; alternative voltages upon request.
• Compressed air: 0.5–0.7 MPa for nip/clamp actuation where applicable.

User Recognition

Proven Results

• Building‑products line reported tighter dimensional stability and cleaner cut faces after adopting phase‑aligned traction/cutting.
• Furniture profile producer reduced changeover time and scrap by using recipe‑stored nip/contact settings and quick‑release tooling.

Customer Sentiment

• Operators highlight predictable line speed and intuitive HMI; maintenance teams value accessible belt path and modular cutter assemblies.
• Buyers note favorable lifecycle economics thanks to durable belt materials, efficient drives, and reduced rework.

Competitive Position

• One‑frame integration lowers alignment effort, shrinking footprint and setup time versus separate downstream units.
• Scalable configuration supports lab trials and multi‑shift production with consistent process recipes and maintenance cadence.
