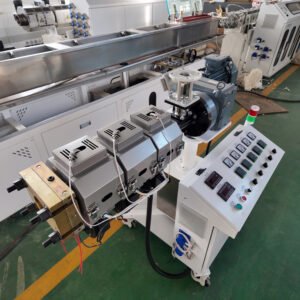

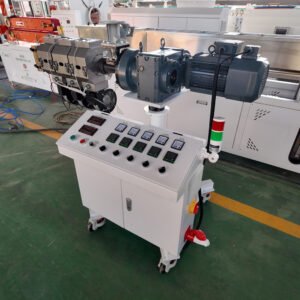

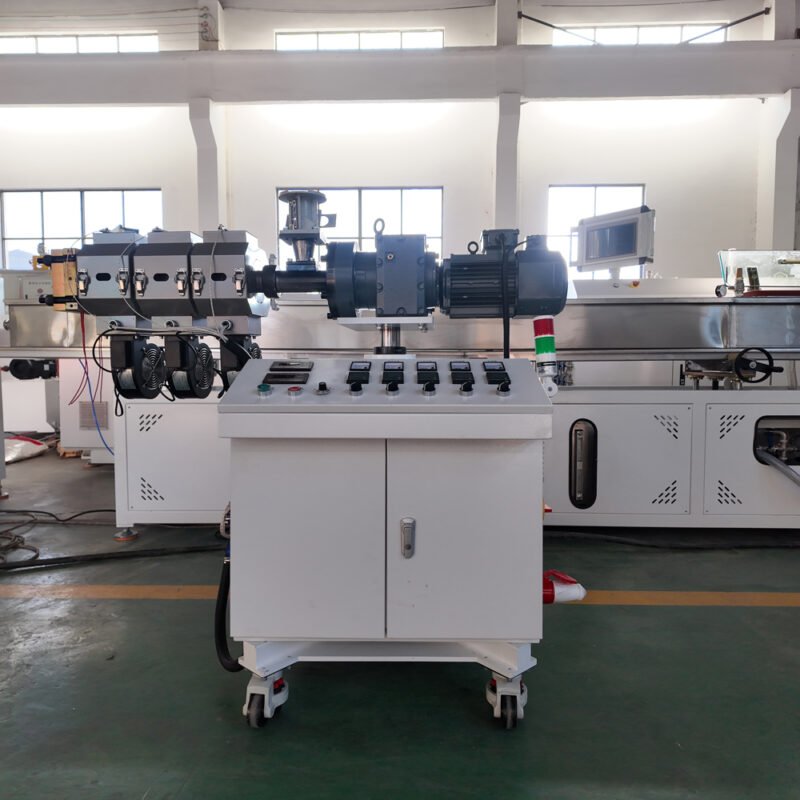

Co-Extrusion Extruder

High-Precision, 360° Adjustable Multi-Layer Solution

Overview

Engineered for modern plastics processing, our co-extrusion extruder delivers high-precision multilayer profiles, films, and sheets with a unique 360° adjustable die/adapter system. It ensures uniform layer distribution, fast product changeovers, and superior material compatibility—driving innovation, quality, and market competitiveness.

Product Features

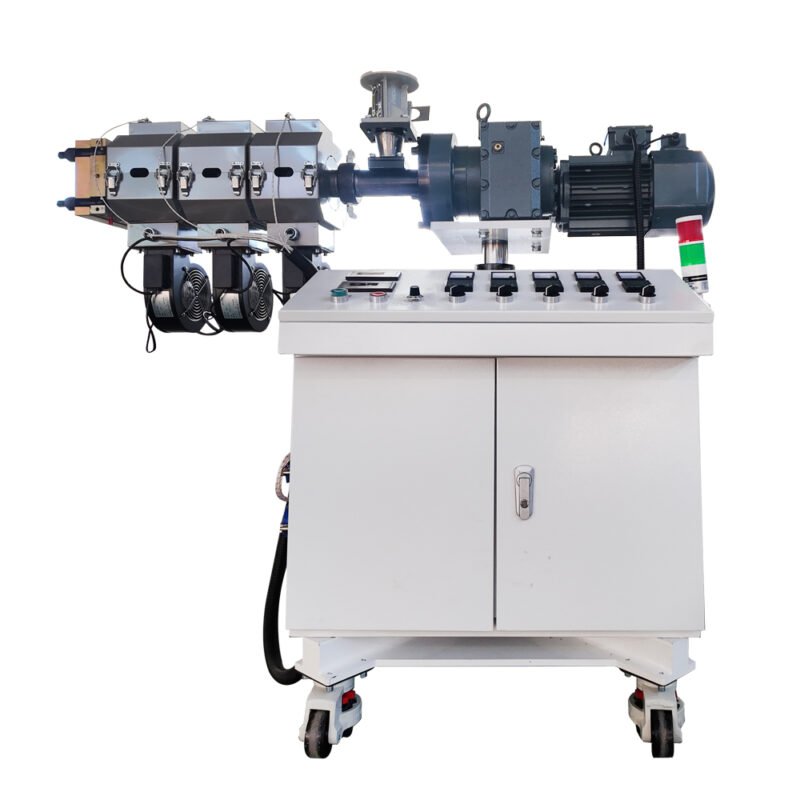

360° Adjustable Die System

• Full-angle adjustment of the co-extrusion head for perfect layer concentricity and edge alignment.
• Rapid fine-tuning reduces scrap, optimizes thickness uniformity, and stabilizes melt flow.
• Ideal for complex profiles, multi-channel ducts, and high-clarity multilayer films.

Multilayer Flexibility and Material Compatibility

• Supports 2–7 layers with independent melt channels for PP, PE, ABS, PC, PMMA, PETG, TPU, TPE, PA, EVOH, recycled blends, and functional tie layers.
• Smart flow balancing and rheology-matched spirals improve adhesion between dissimilar polymers.

Advanced Process Control

• Closed-loop control for pressure, temperature, and screw torque with high-speed I/O.
• Automatic thickness control (ATC) and gravimetric dosing ensure stable layer ratios (±1–2%).
• Real-time SPC dashboard with alarm diagnostics and recipe management.

High-Throughput, Energy-Efficient Design

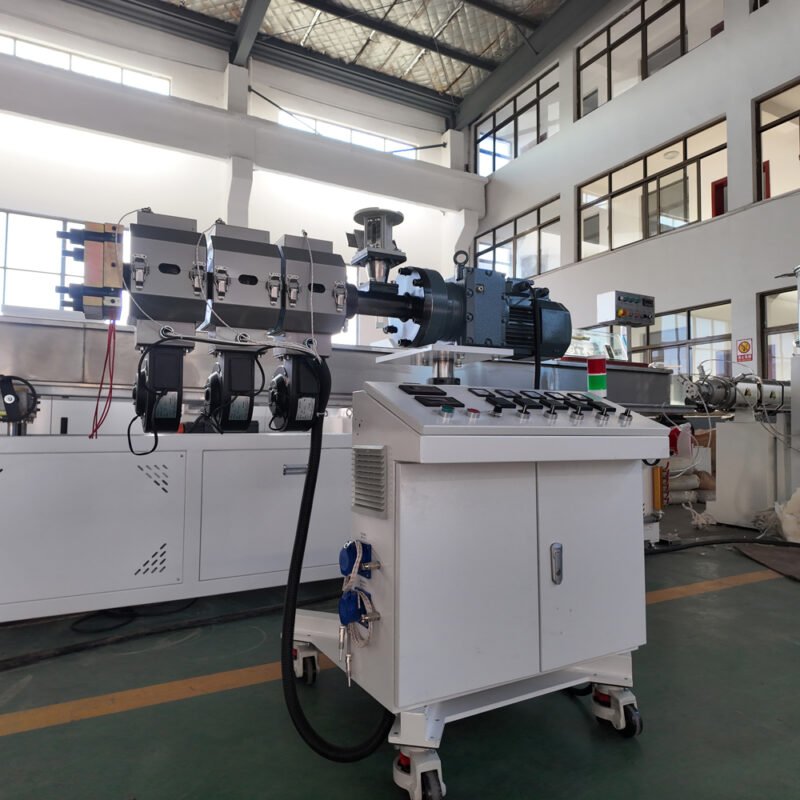

• Barrier or mixing screw options for high output and low melt temperature.

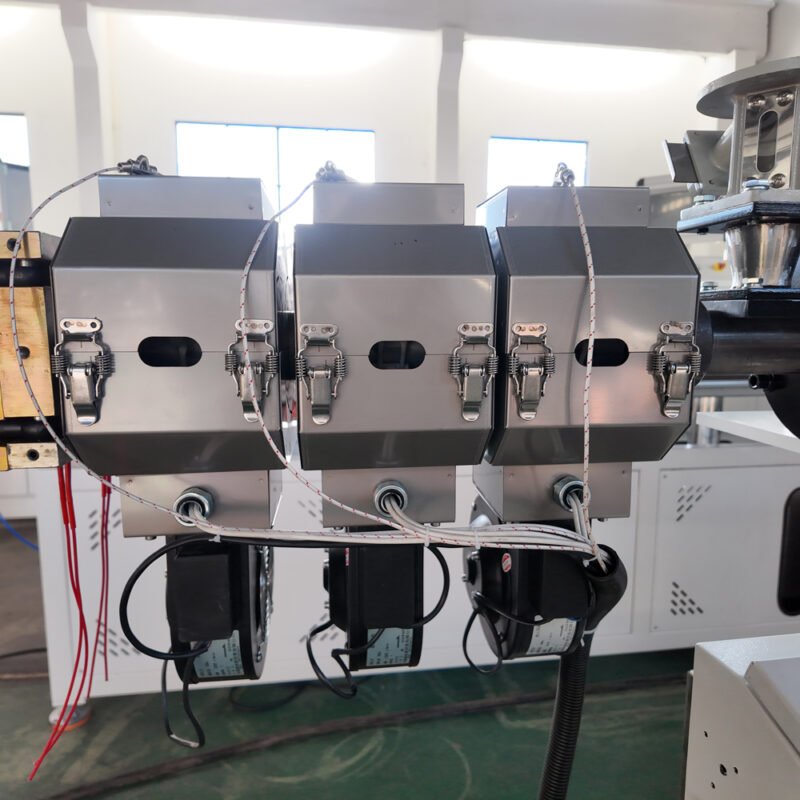

• Servo-driven haul-off and high-efficiency barrel heaters cut energy consumption by 10–20%.

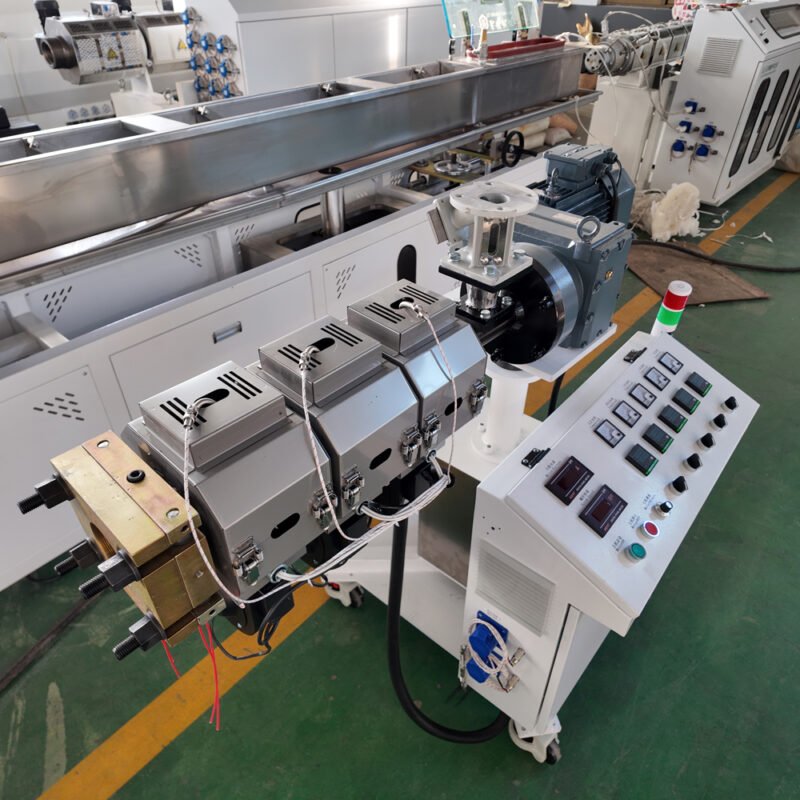

• Optimized thermal profile reduces gels and improves optical clarity in transparent structures.

Rapid Changeover and Low Maintenance

• Tool-less die lips and quick-clean adapters shorten downtime.
• Wear-resistant bimetallic barrels and nitrided screws extend service life.
• Modular co-ex lines scale from lab/R&D to high-volume production.

Application Fields

Building & Construction

• Multilayer window profiles, siding, decking, weatherable caps, sound-dampening pipes, cable conduits, waterproof membranes, and roofing films.

Furniture & Interior

• Co-extruded decorative profiles, ASA/PMMA capping for UV resistance, edge bands, skirting boards, and surface protection films.

Automotive & Transportation

• Lightweight trim profiles, multilayer ducts and tubes, interior panels, acoustic barriers, and protective laminates.

Packaging & Consumer Goods

• Barrier films (EVOH layers), multilayer sheets for thermoforming, peelable lidding, and scratch-resistant protective layers.

Electrical & Industrial

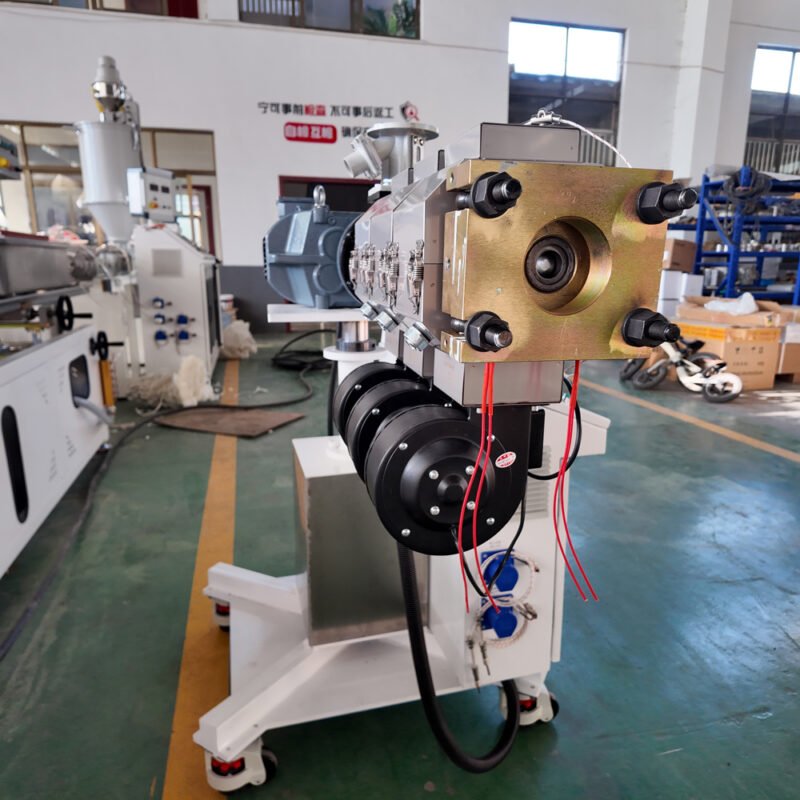

• Wire/cable jacketing with co-ex insulation layers, chemical-resistant linings, and reinforced structural profiles.

Technical Specifications

Core Parameters

• Layers: 2–7 (custom higher-layer options available)
• Output Capacity: 80–1,200 kg/h per line (single co-ex head), scalable with multiple co-ex feeders
• Screw Diameters: 35–120 mm; L/D ratio 28–40 (material dependent)
• Melt Pressure: 50–300 bar at die entrance (material dependent)
• Melt Temperature Control: ±1.0 °C stability across zones
• Layer Thickness Control: ±1–2% deviation with ATC

Equipment Configuration

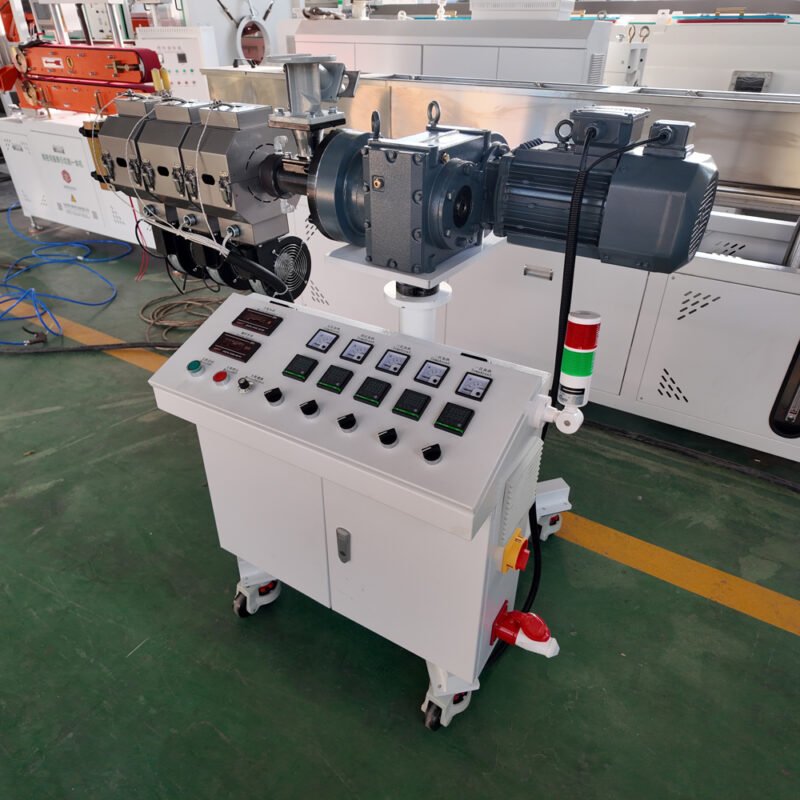

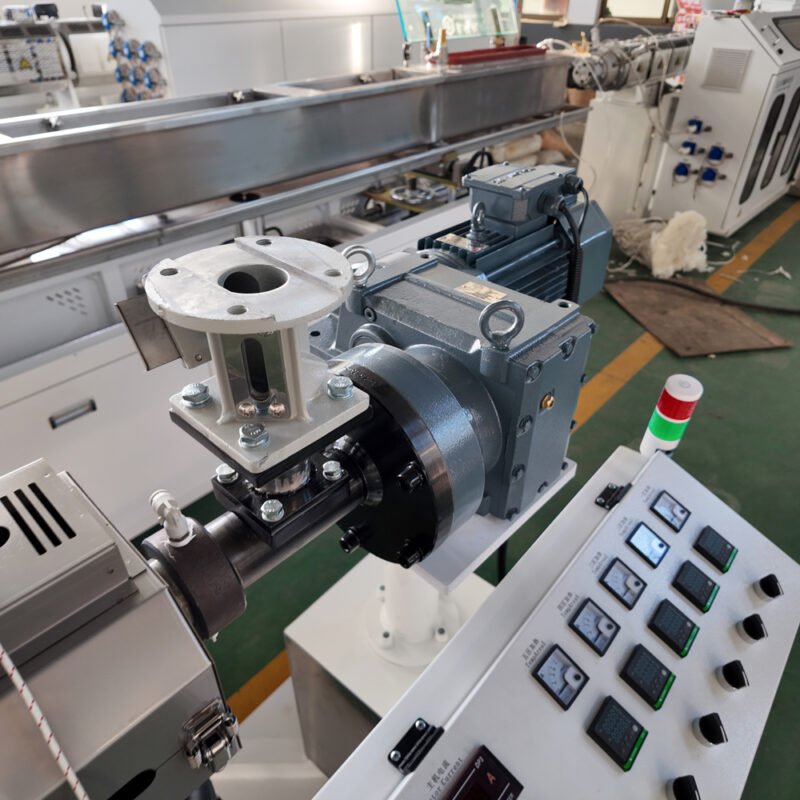

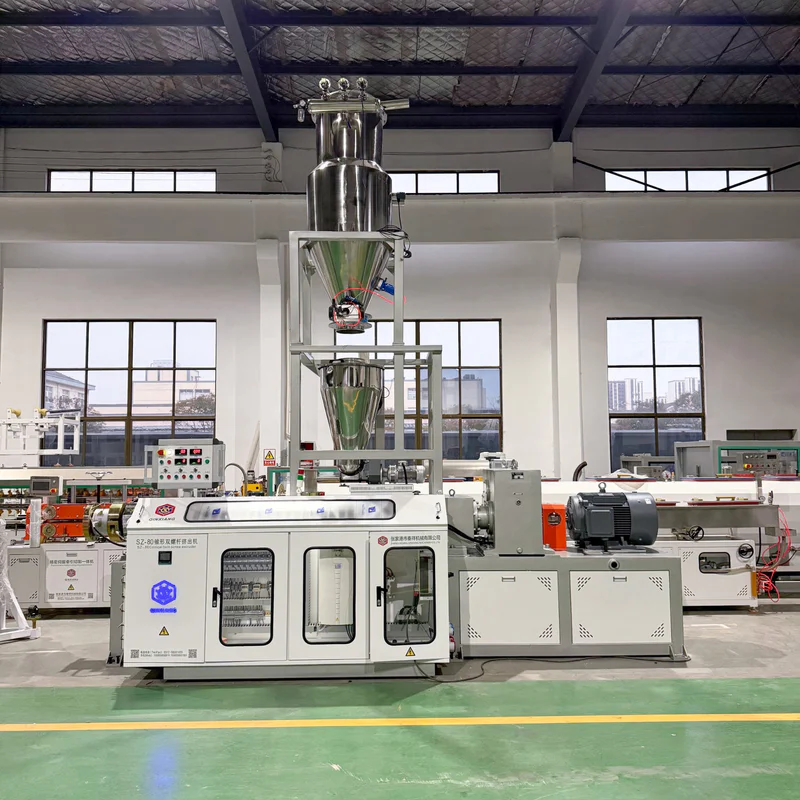

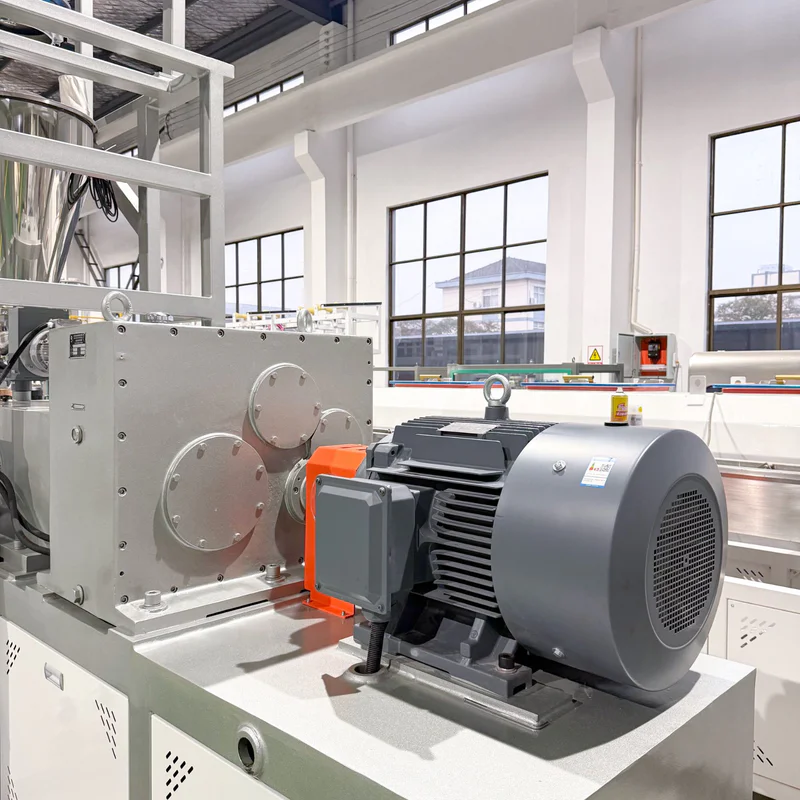

• Extruders: Independent co-ex feeders with AC/servo drives and vector control

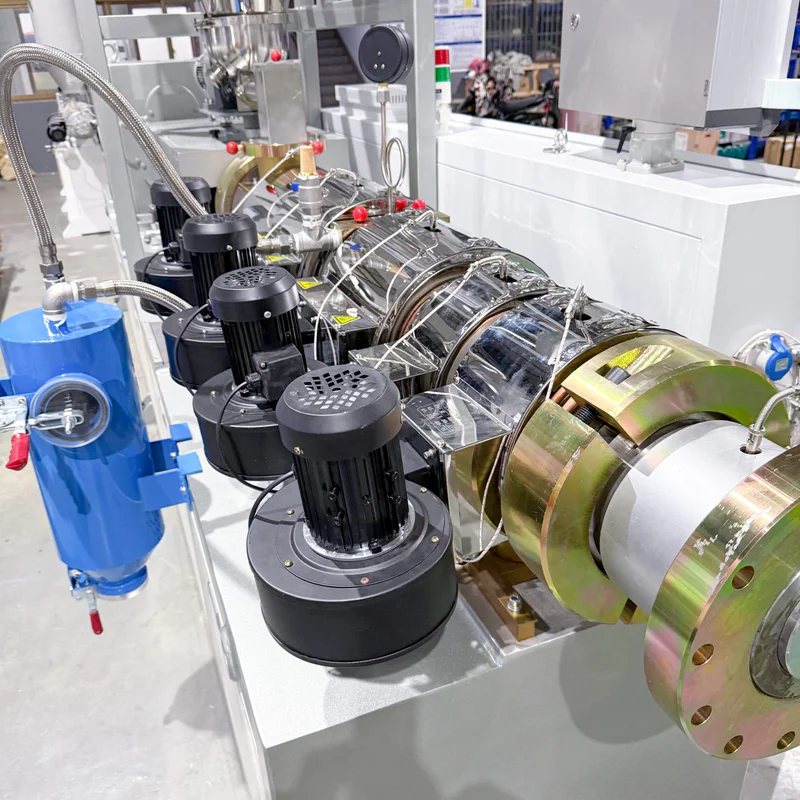

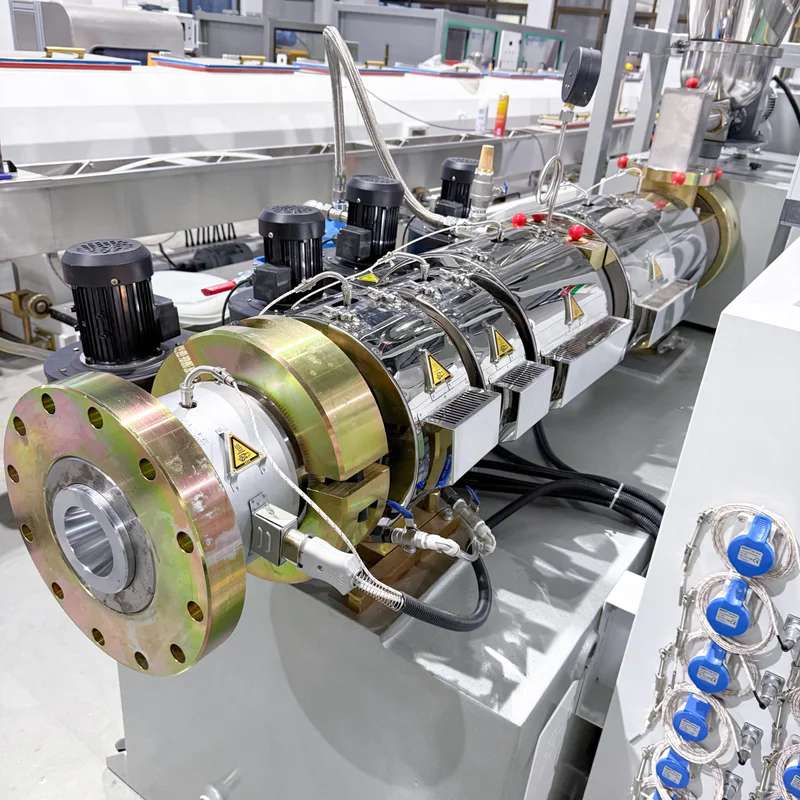

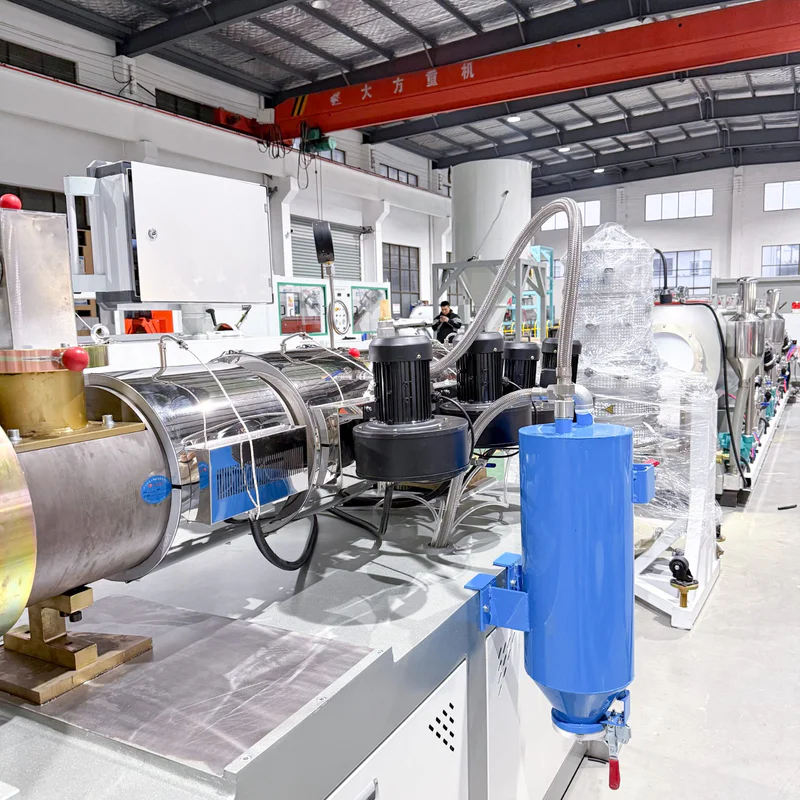

• Screws: Barrier, Maddock, venting, and high-mix options; customized for rheology and fillers

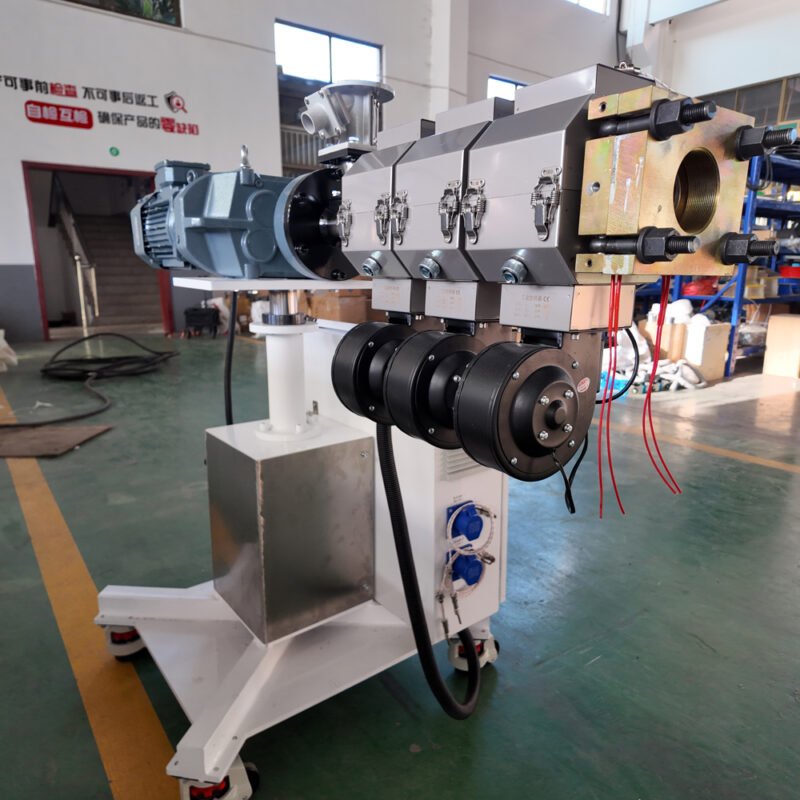

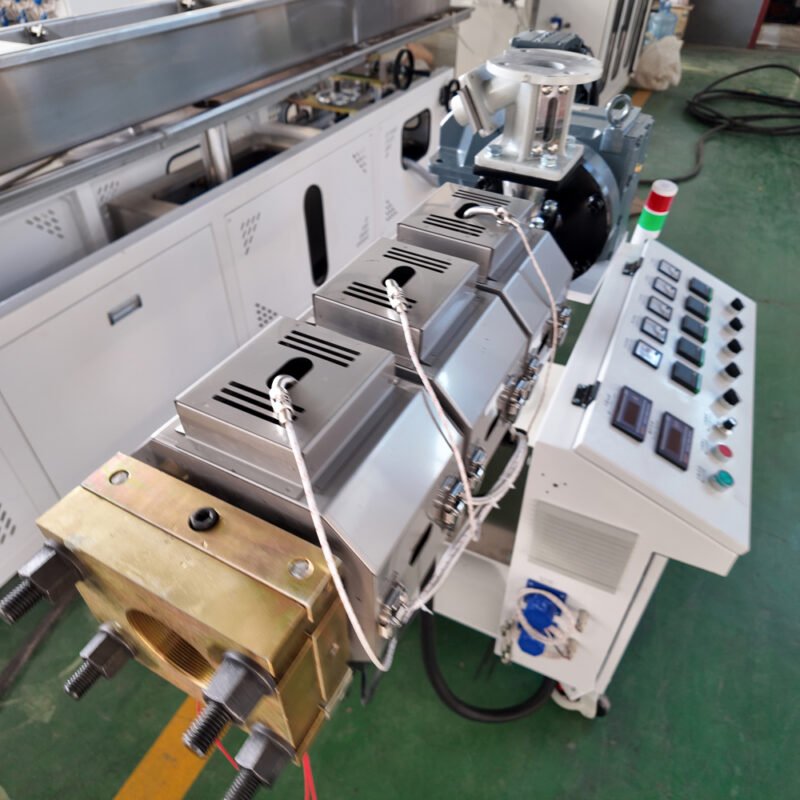

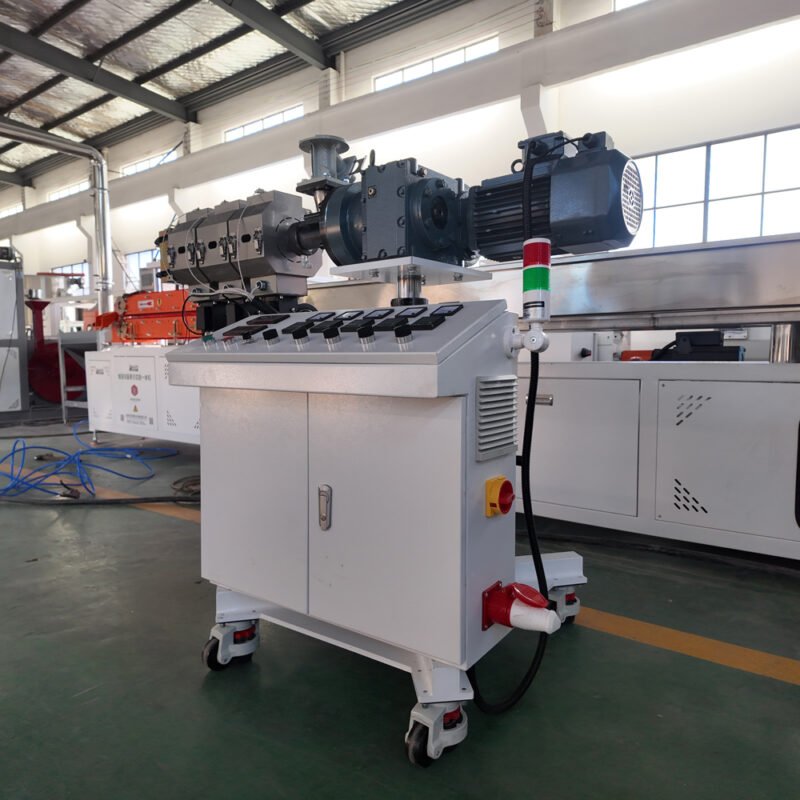

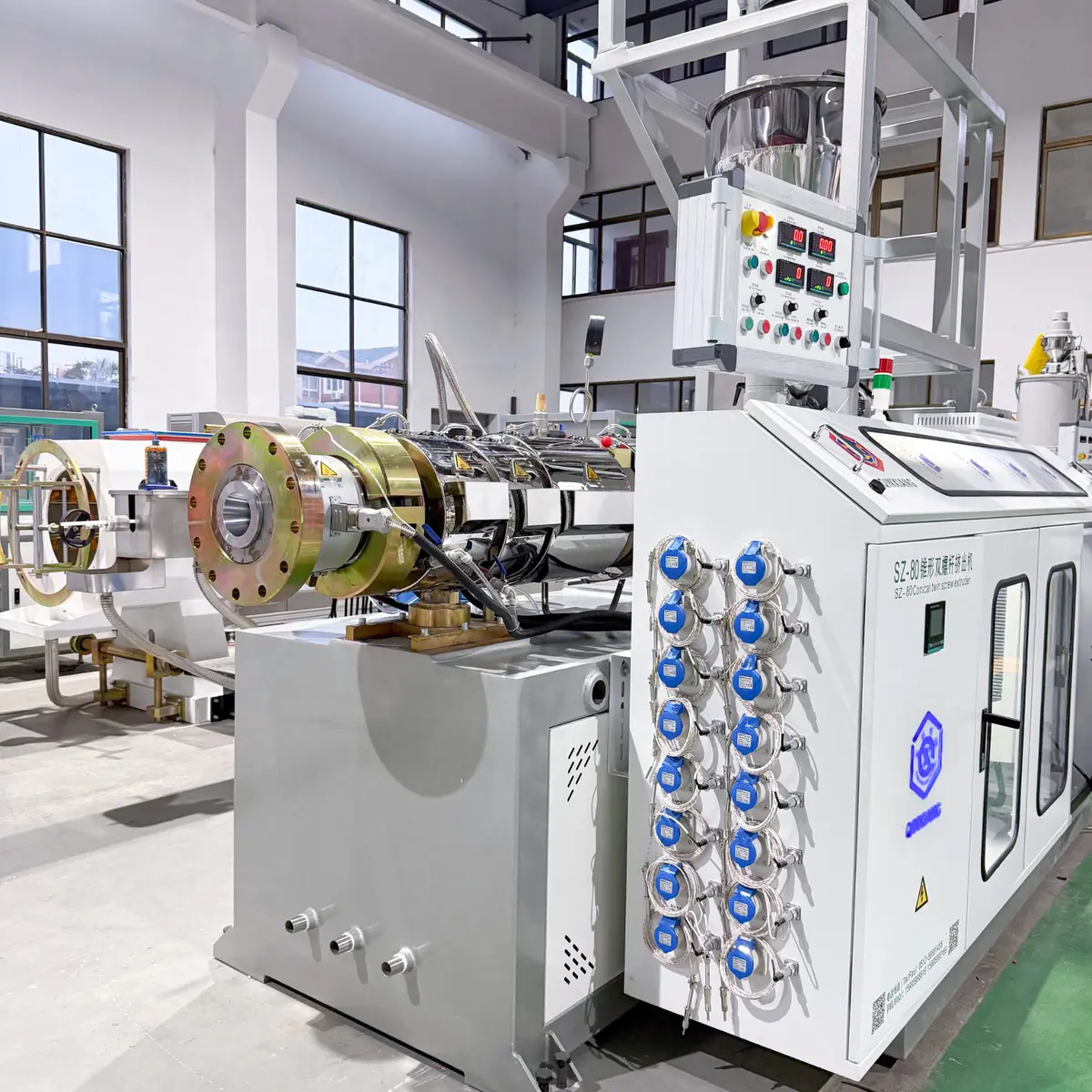

• Die/Adapter: 360° adjustable co-ex feedblock or spiral die; quick-change die lips

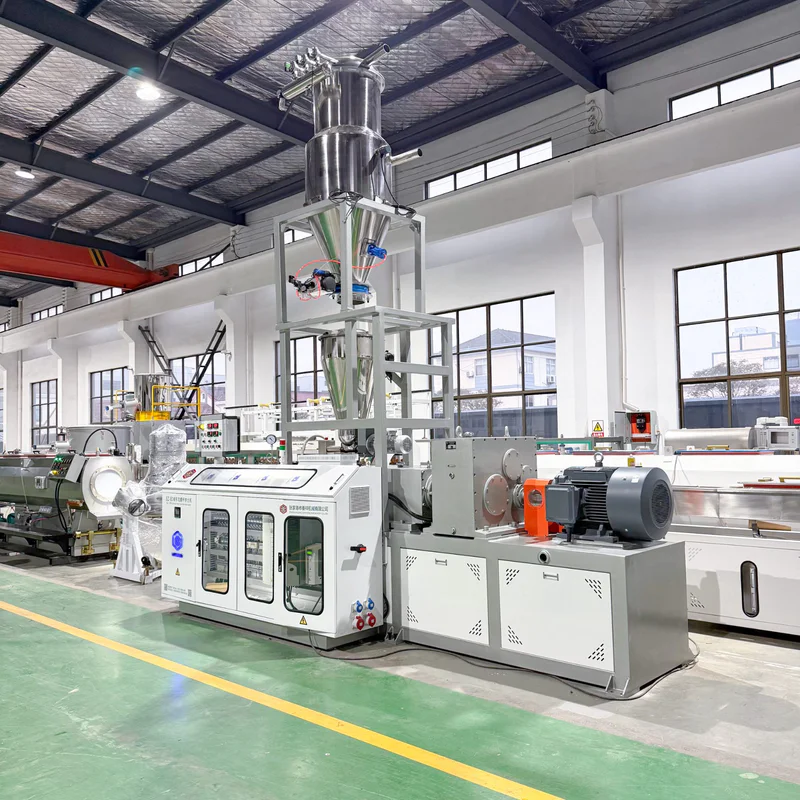

• Dosing: Gravimetric loss-in-weight feeders (1–6 components per extruder)

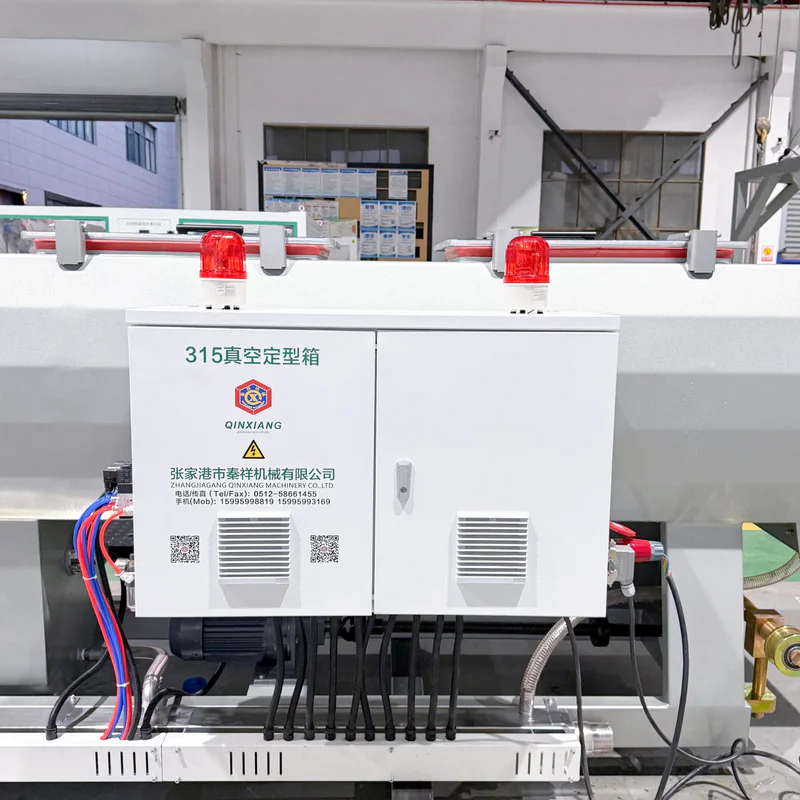

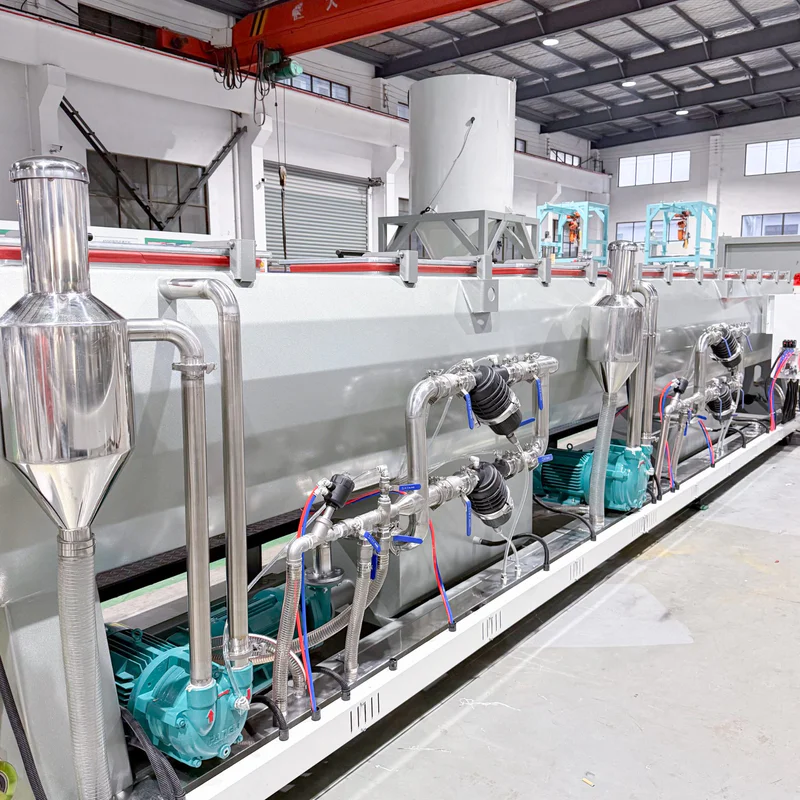

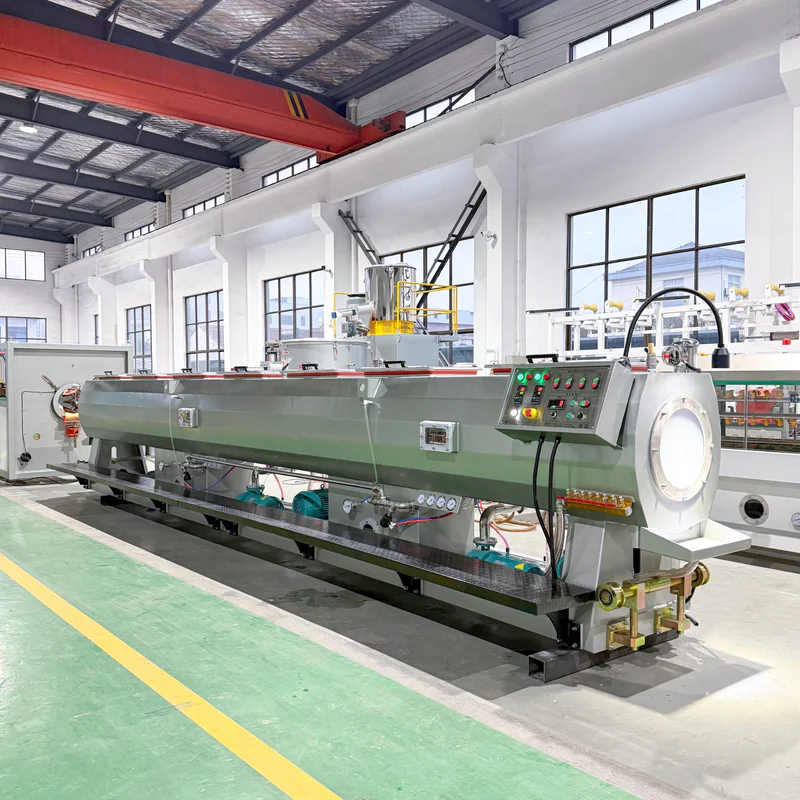

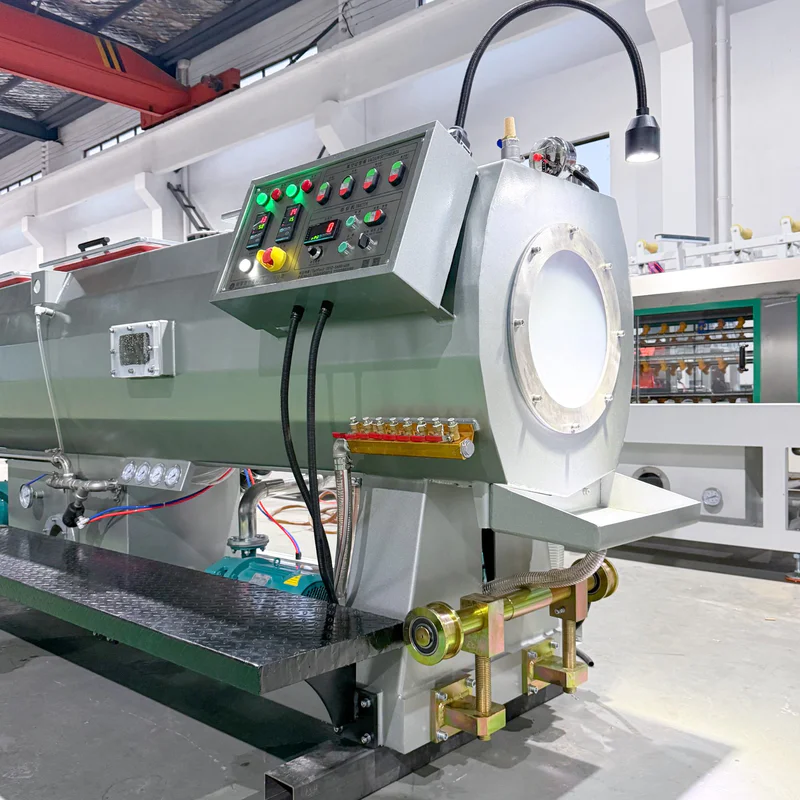

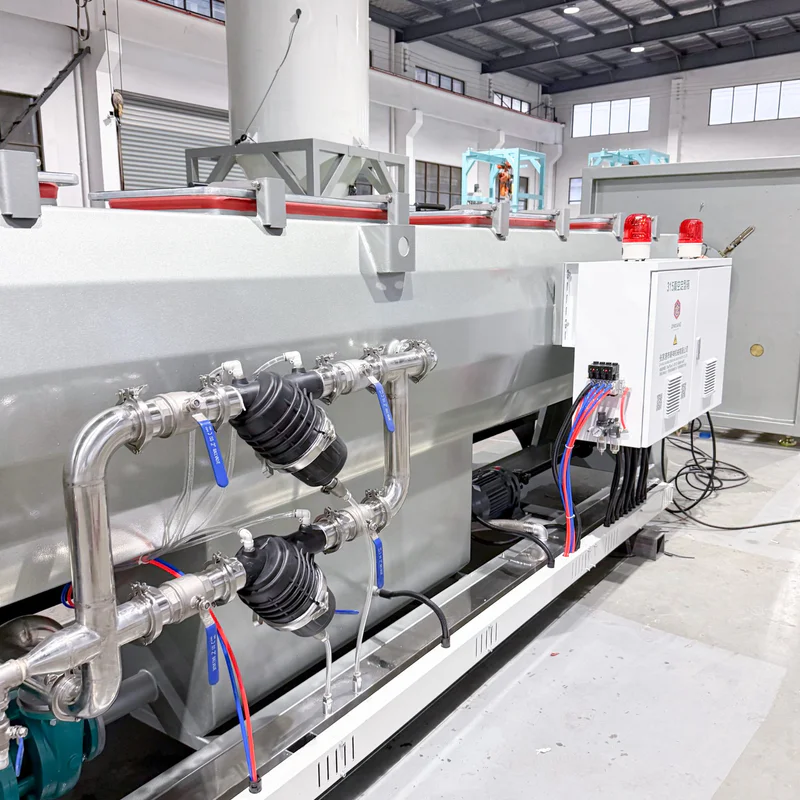

• Cooling & Calibration: Vacuum sizing tables, multi-stage calibration for profiles/sheets

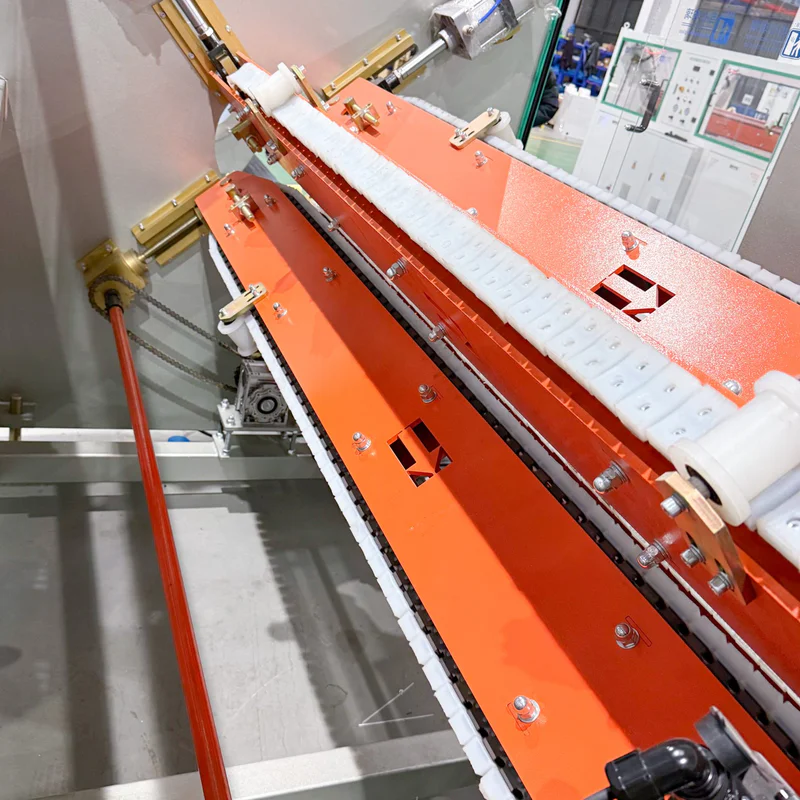

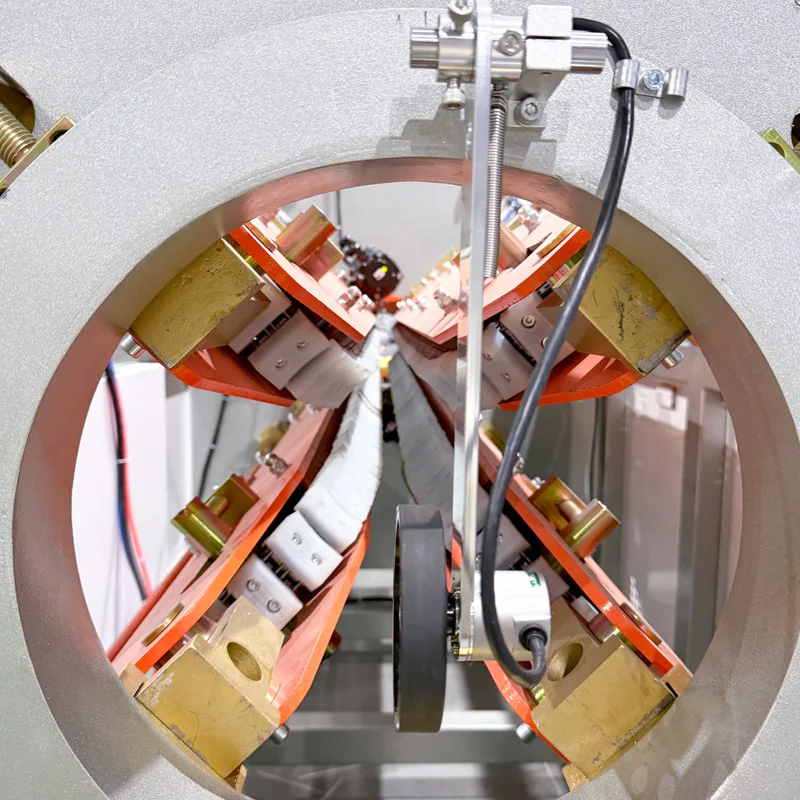

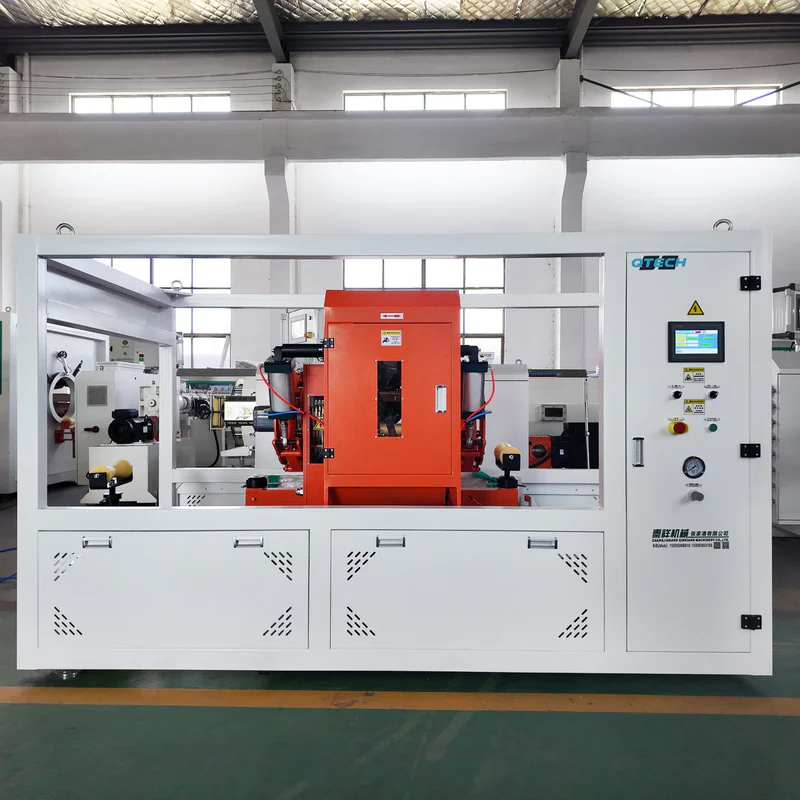

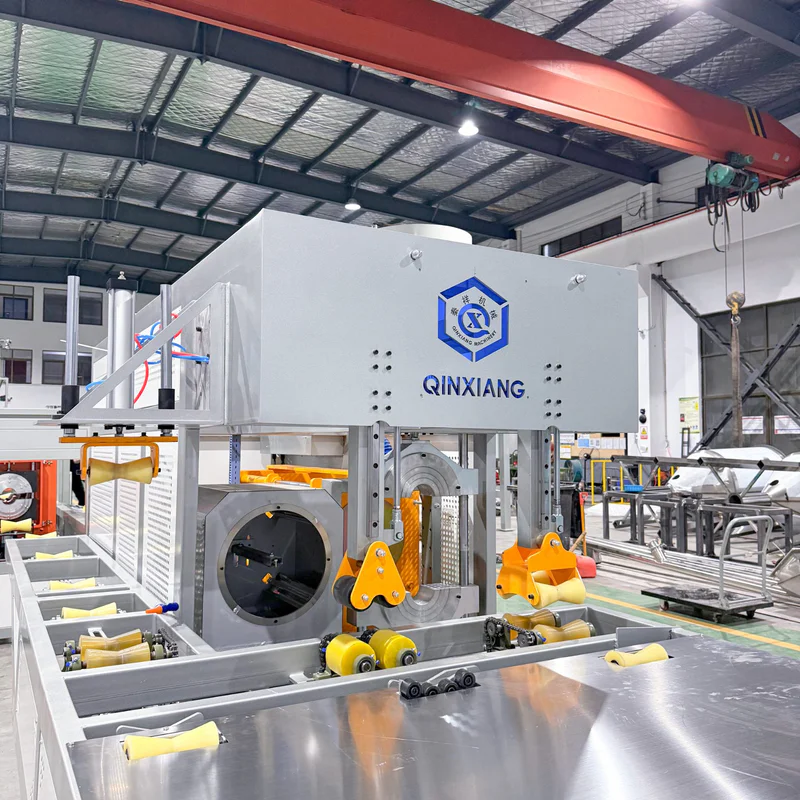

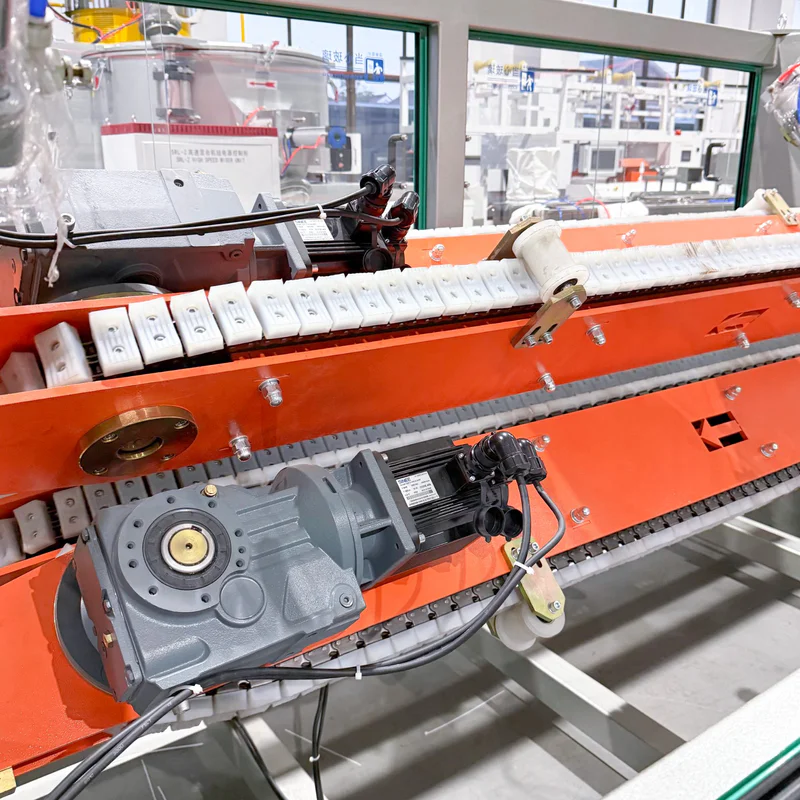

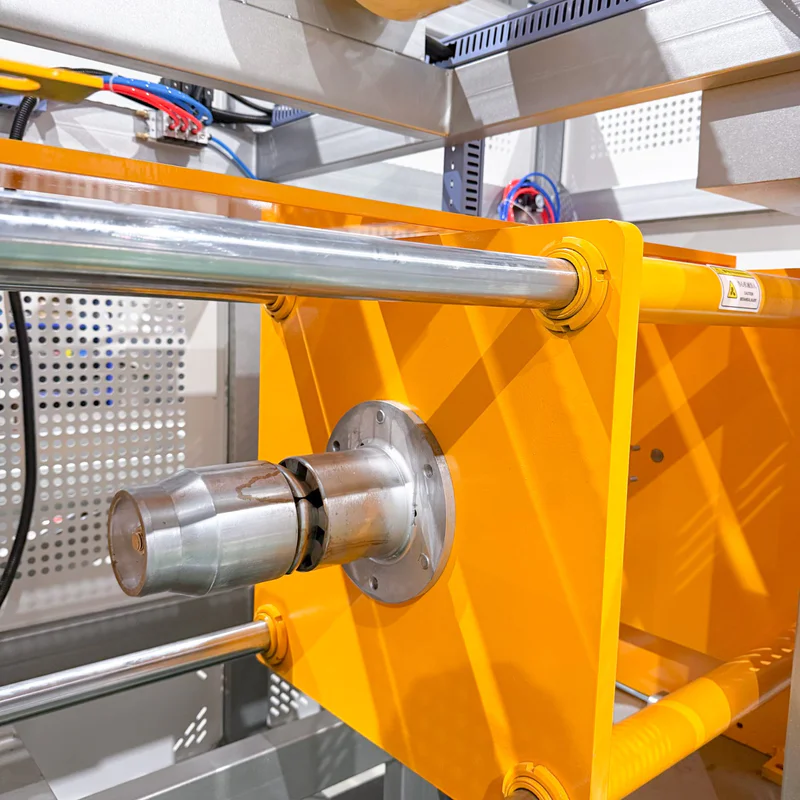

• Downstream: Servo haul-off, thickness gauge, automatic winder or stacker

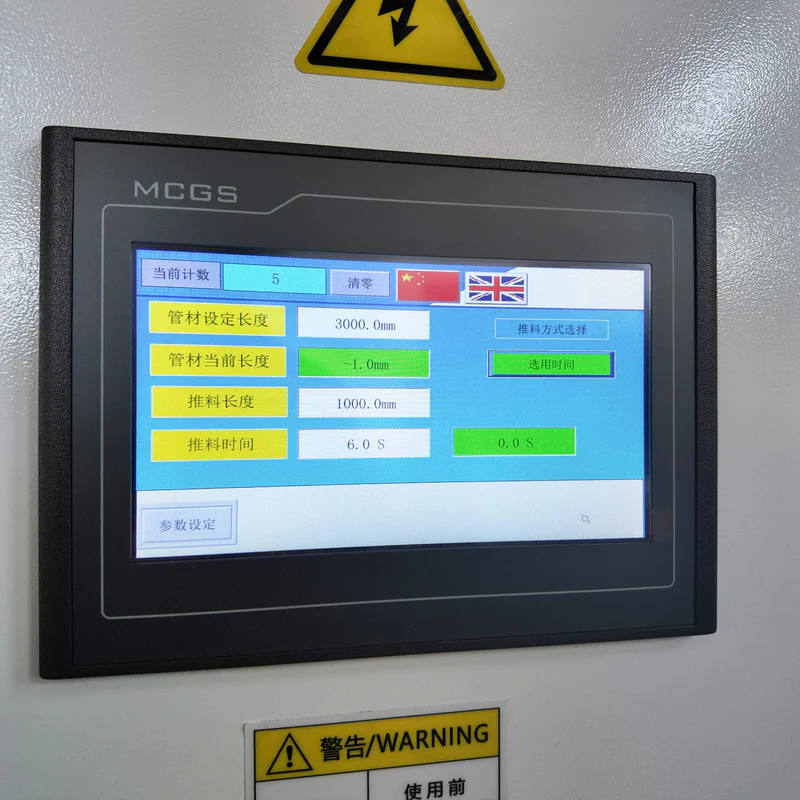

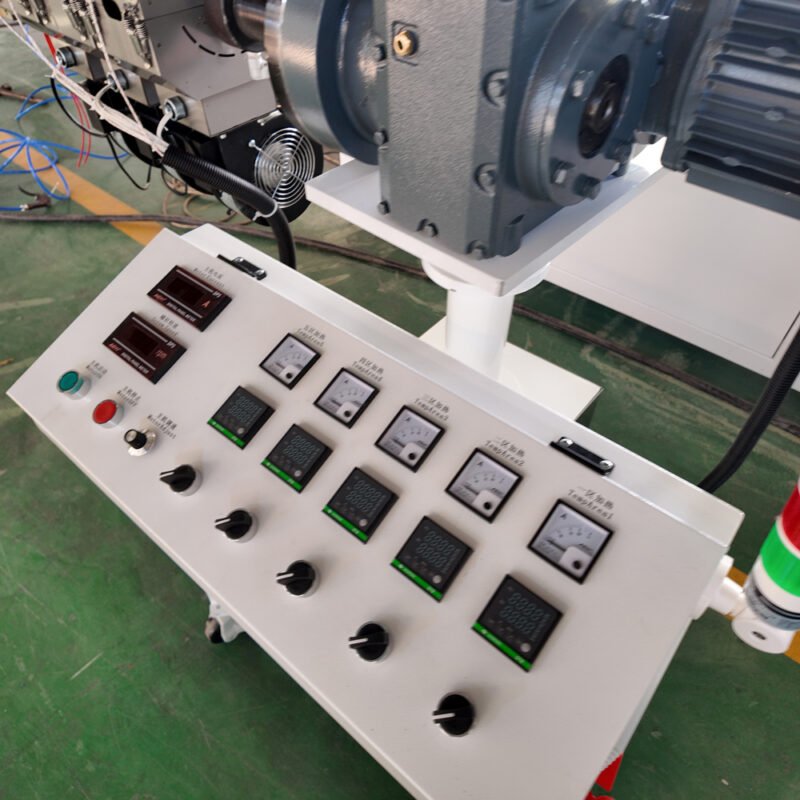

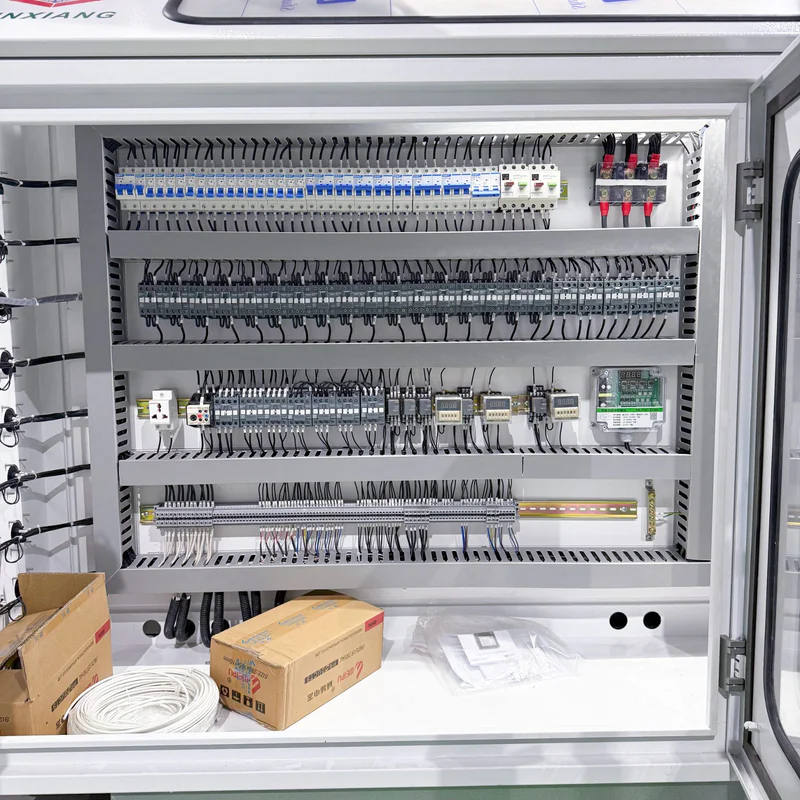

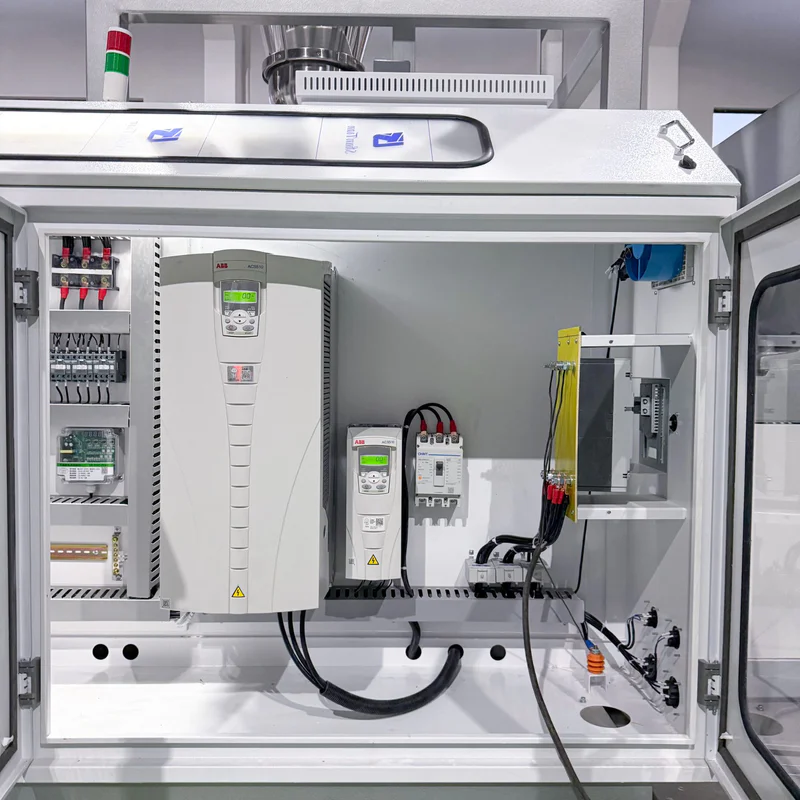

• HMI & Controls: 15–21″ touchscreen, recipe library, OPC UA/Modbus connectivity

Energy & Utilities

• Power Consumption: 0.18–0.28 kWh/kg (typical, recipe dependent)
• Compressed Air: 0.6–0.8 MPa for controls and actuators
• Water: Closed-loop chiller for die, barrel, and calibration circuits
• Noise Level: ≤78 dB(A) at operator position

User Recognition

Customer Feedback

• “360° die adjustment cut edge-waves by 70% and stabilized layer thickness in under 10 minutes.”
• “Gravimetric control and ATC reduced resin waste by 12% on multilayer sheet runs.”
• “Rapid changeover trimmed downtime by 30%, boosting OEE across shifts.”

Market Performance

• Deployed in 20+ countries across construction, automotive, and packaging sectors.
• High repeat-order rate due to robust uptime, consistent quality, and flexible multilayer capability.
• Proven ROI through energy savings, reduced scrap, and accelerated product launches.

Why It Wins

• 360° adjustable co-extrusion head for unmatched precision and versatility.
• Multilayer excellence with advanced control for barrier, optical, and structural performance.
• Lower total cost of ownership through energy efficiency and maintenance-optimized design.
